Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the amplifier to the bracket.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).

Fig 1: View Of Amplifier

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors (1).

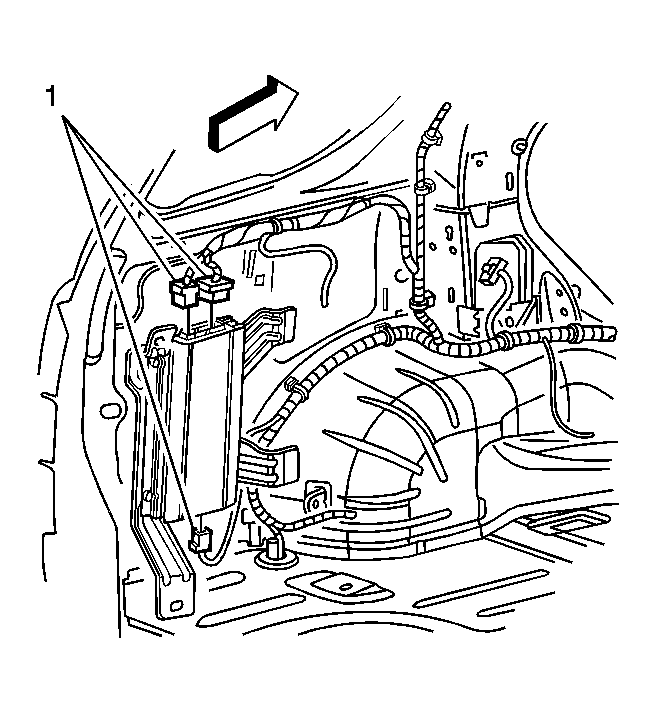

Fig 2: View Of Amplifier Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Install the amplifier bracket to the vehicle.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).

Fig 3: View Of Amplifier Bracket

Courtesy of GENERAL MOTORS CORP.

Install the HVAC module.
Install the body side trim panel. Refer to HVAC Module Replacement - Auxiliary in Interior Trim.
