Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Position the sensor (1) to the vehicle.

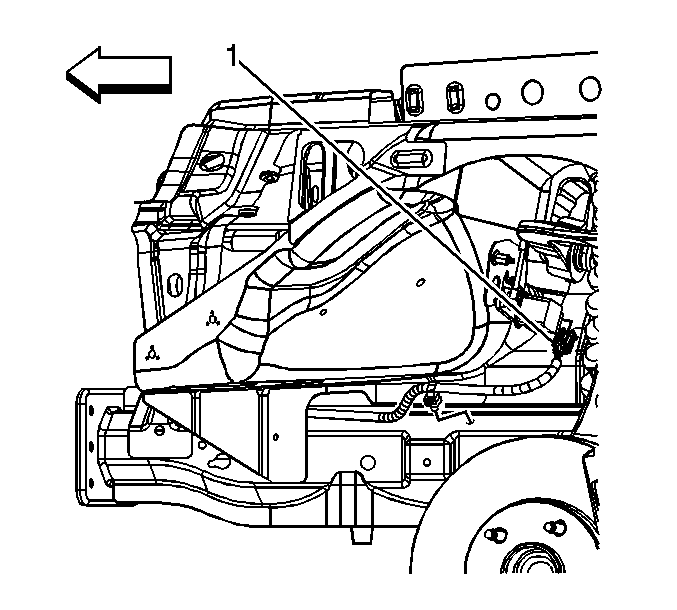

Fig 1: View Of Front Headlamp Leveling Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt (2) to secure the sensor to the vehicle.
Tighten: Tighten the bolt to 9 N.m (80 lb in)
Install ball and socket (1) to sensor.

Fig 2: View Of Ball & Socket

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the sensor.

Fig 3: View Of Front Headlamp Leveling Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the right tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
