Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Steering Column |
| 3 | Windshield Wiper/Washer Switch |
| 4 | Hazard Switch Connector |
| 5 | Hazard Switch |
| 6 | I/P Air Deflector - Center |
| 7 | Turn Signal/Hazard Flasher Module |
| 8 | Data Link Connector (DLC) |
| 9 | Park Brake Switch Connector |
| 10 | Turn Signal/Hazard Flasher Module Connector |

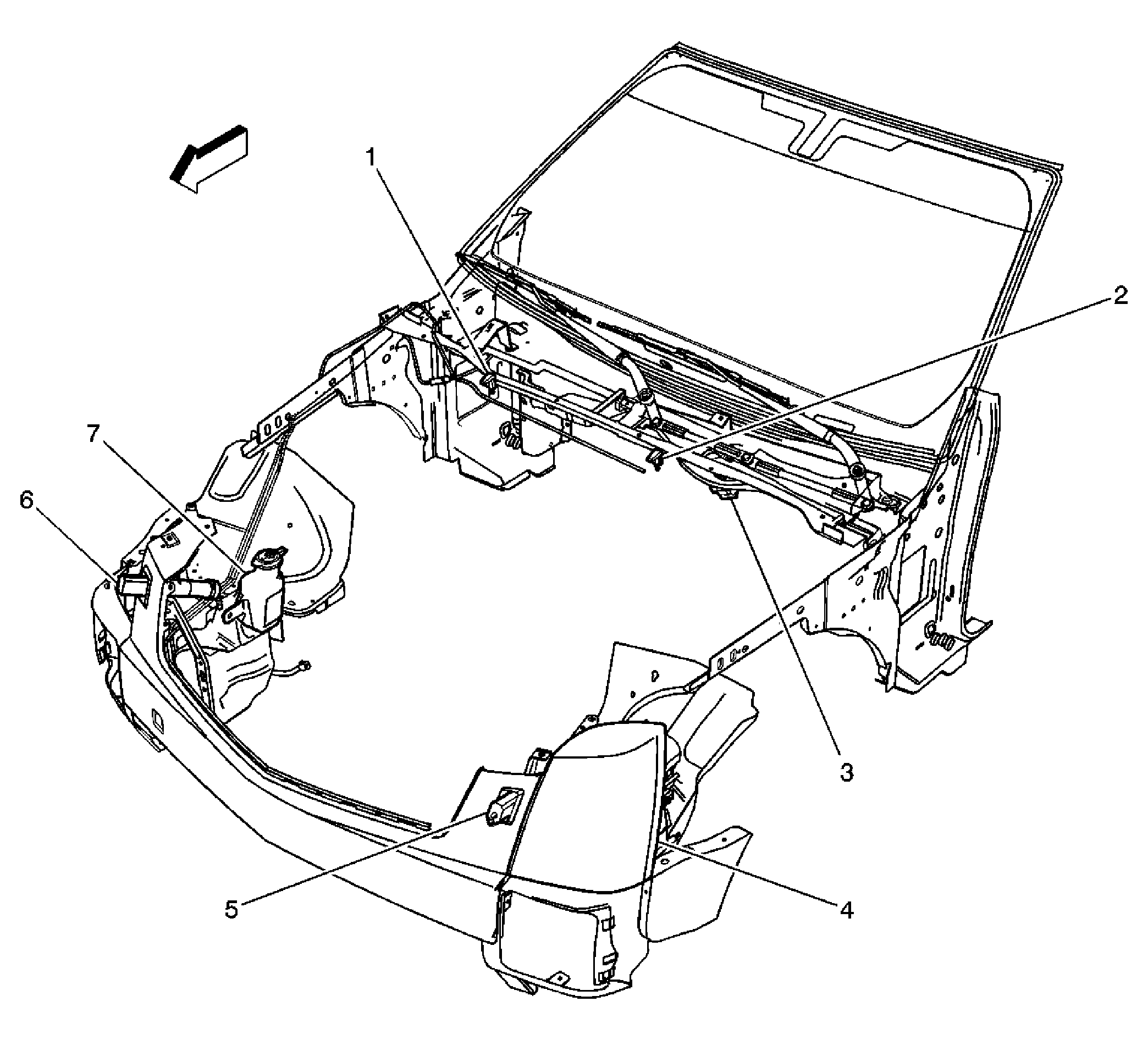

| Callout | Component Name |
|---|---|
| 1 | Heated Washer Nozzle - Right |
| 2 | Heated Washer Nozzle - Left |
| 3 | Windshield Wiper/Washer Module |
| 4 | Headlamp - Left |
| 5 | Headlamp Washer Nozzle - Left |
| 6 | Headlamp Washer Nozzle - Right |
| 7 | Washer Fluid Container |

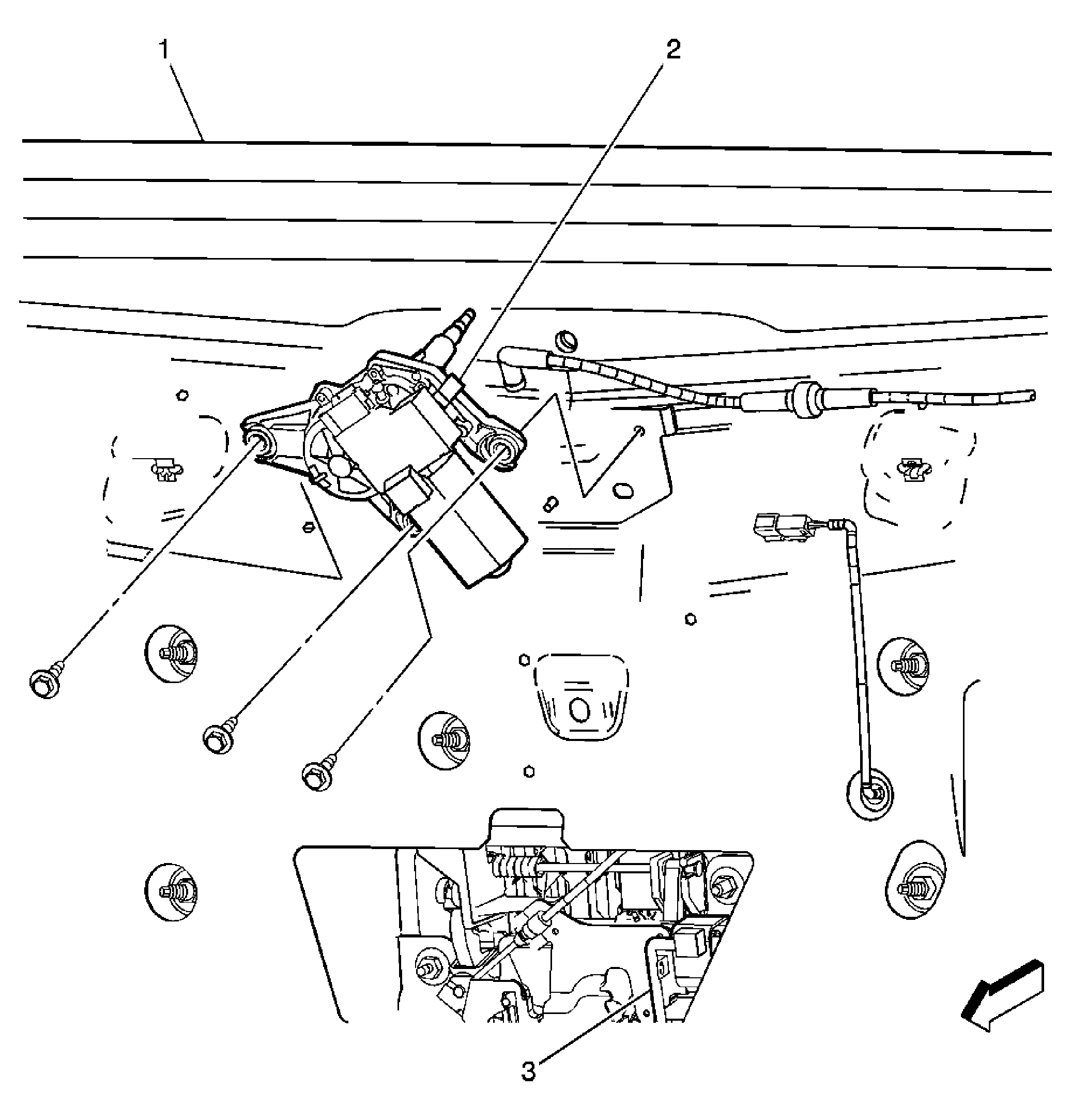

| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger Grid |
| 2 | Rear Wiper Motor |
| 3 | Liftgate Latch |

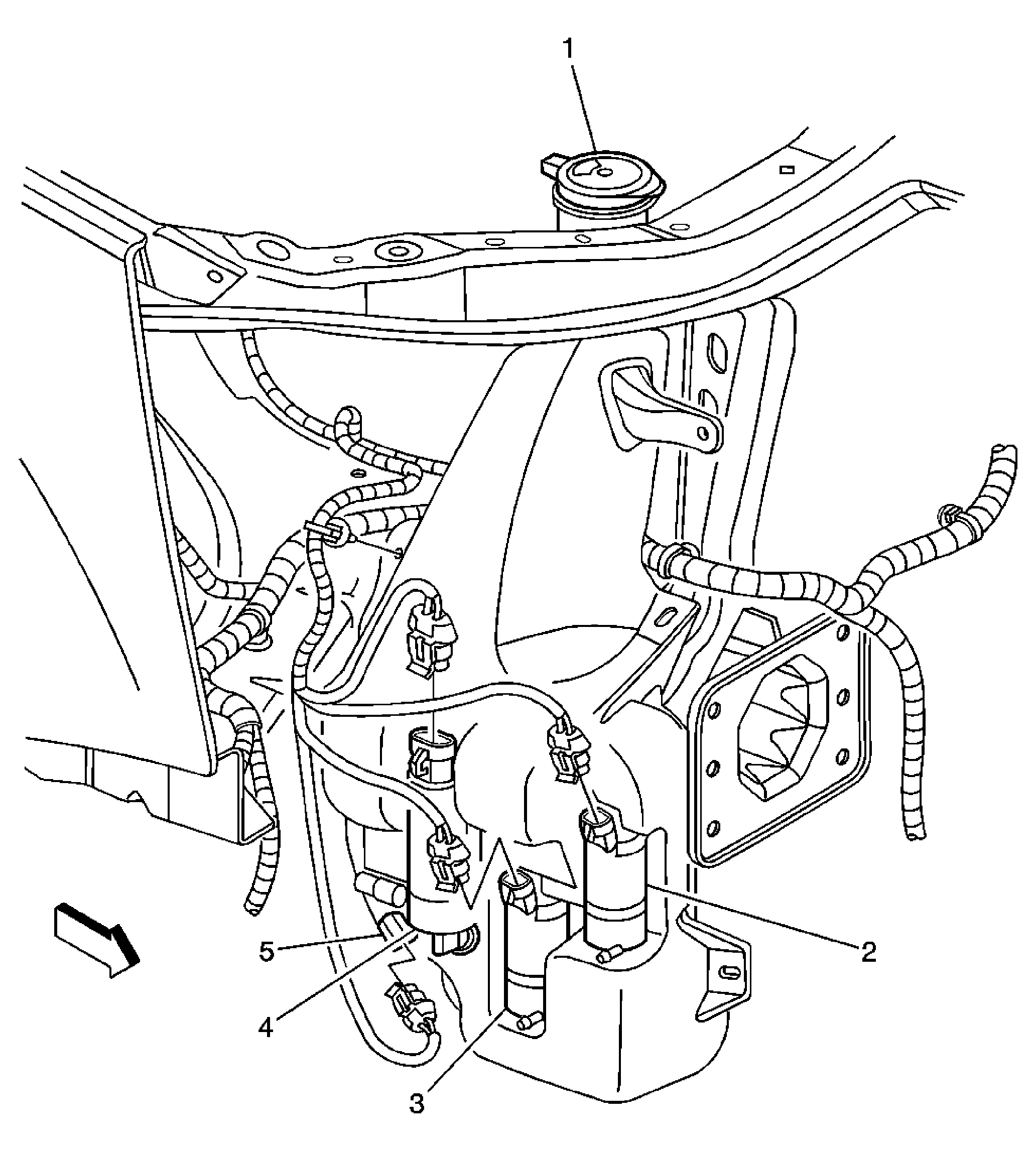

| Callout | Component Name |
|---|---|
| 1 | Washer Solvent Container |
| 2 | Rear Window Washer Fluid Pump |
| 3 | Windshield Washer Fluid Pump |
| 4 | Headlamp Washer Fluid Pump (CE4) |
| 5 | Washer Fluid Level Switch |
| Callout | Component Name |
|---|---|
| 1 | Rear Wiper/Washer Switch |
| 2 | Blower Motor Switch - Auxiliary |
| 3 | Not Used |
| 4 | Rear Sunshade Switch (C3B) |
| 5 | Front Sunshade Switch (CF5/C3B) |
| 6 | Sunroof Switch (CF5/C3B)) |
| 7 | I/P Lamps Dimmer Switch |
| 8 | Noise Compensation Microphone (U57) |
