Power Roof Systems Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

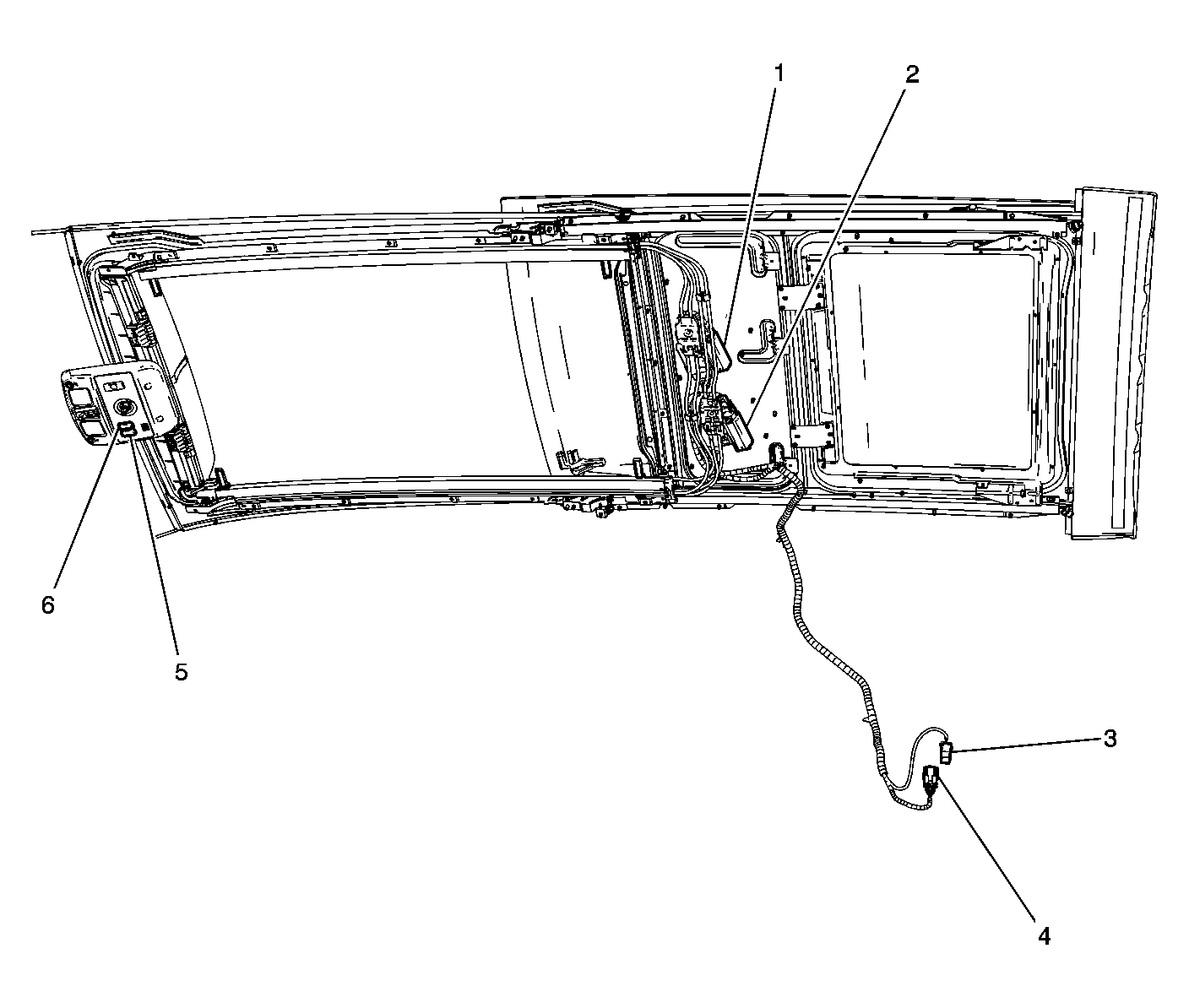

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Control Module |
| 2 |
Front Sunshade Control Module |
| 3 |
C311 |
| 4 |
C315 |
| 5 |
Front Sunshade Switch |
| 6 |
Sunroof Switch |

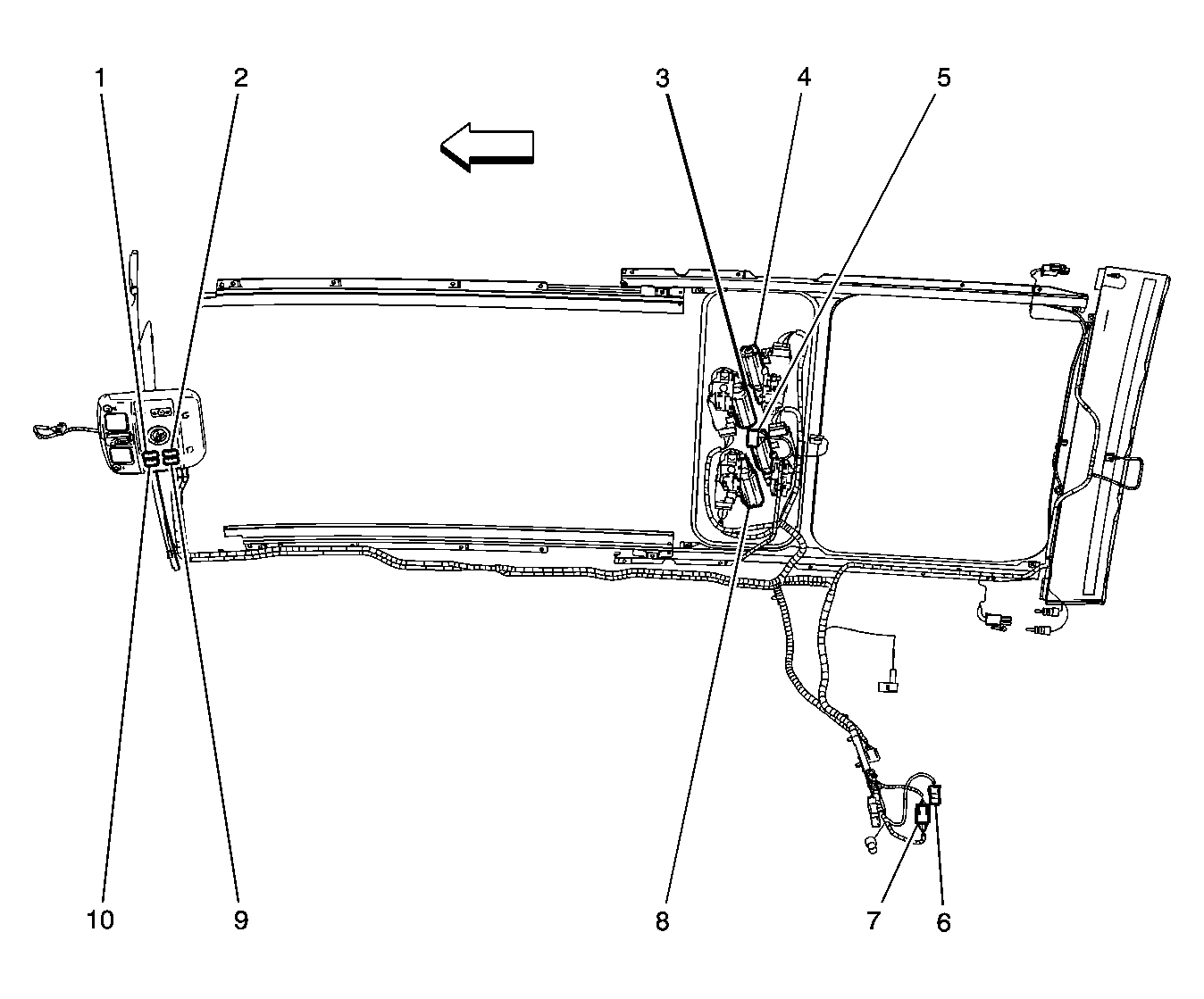

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch |
| 2 |
Not Used |
| 3 |
Sunroof Control Module |
| 4 |
Rear Sunshade Control Module |
| 5 |
Not Used |
| 6 |
C311 |
| 7 |
C315 |
| 8 |
Front Sunshade Control Module |
| 9 |
Rear Sunshade Switch |
| 10 |
Front Sunshade Switch |
