SIR Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

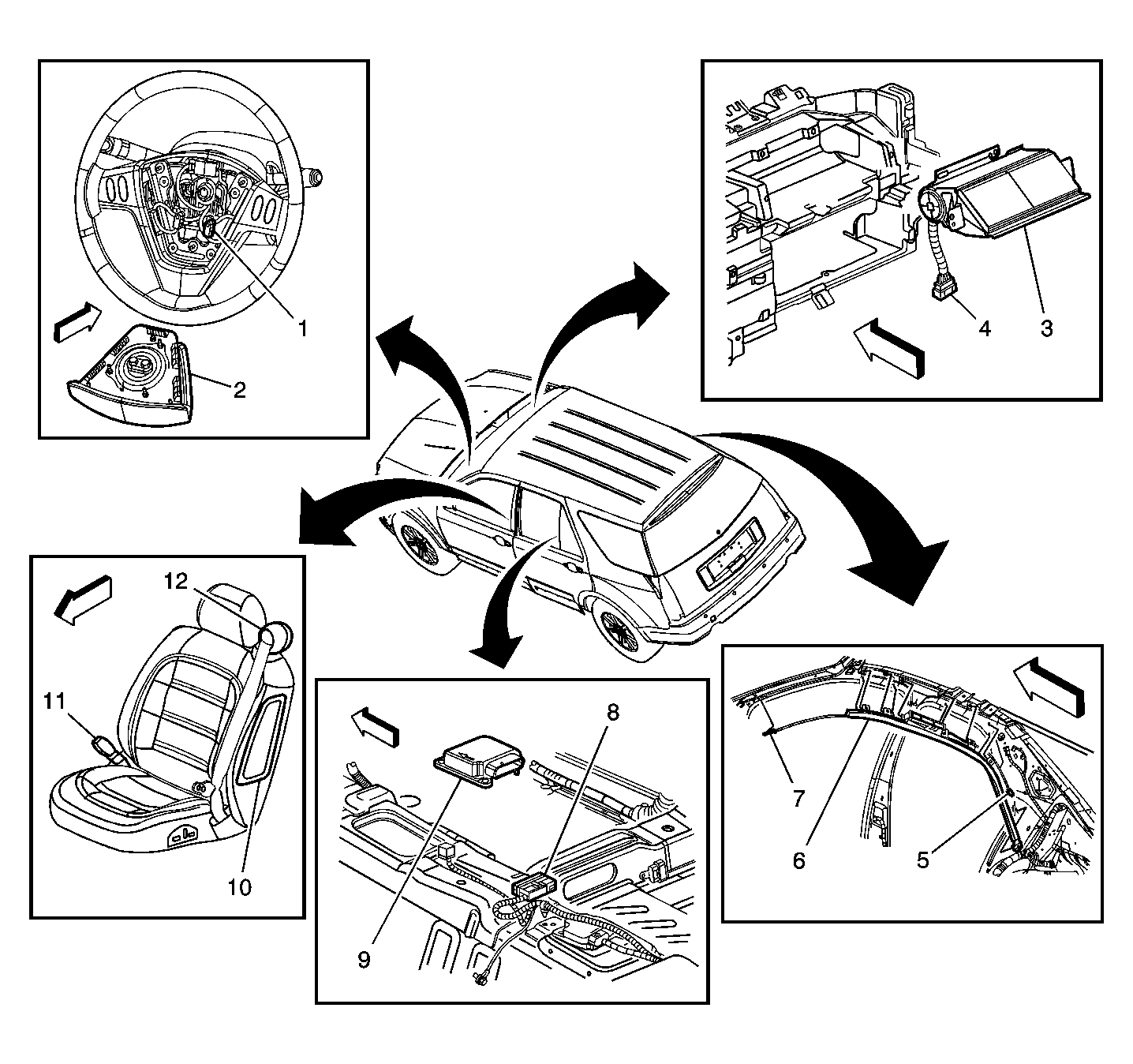

| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module Coil Connectors |
| 2 |
Inflatable Restraint Steering Wheel Module |
| 3 |
Inflatable Restraint I/P Module |
| 4 |
Inflatable Restraint I/P Module Connector |
| 5 |
Inflatable Restraint Roof Rail Module Connector - Right, Left Similar |
| 6 |
Inflatable Restraint Roof Rail Module - Right, Left Similar |
| 7 |
Inflatable Restraint Roof Rail Module Tether - Right, Left Similar |
| 8 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 9 |
Inflatable Restraint SDM |
| 10 |
Inflatable Restraint Side Impact Module - Left, Right Similar |
| 11 |
Seat Belt Pretensioner / Seat Belt Switch - Left, Right Similar |
| 12 |
Front Seat Belt Retractor - Left, Right Similar |
Courtesy of GENERAL MOTORS CORP.

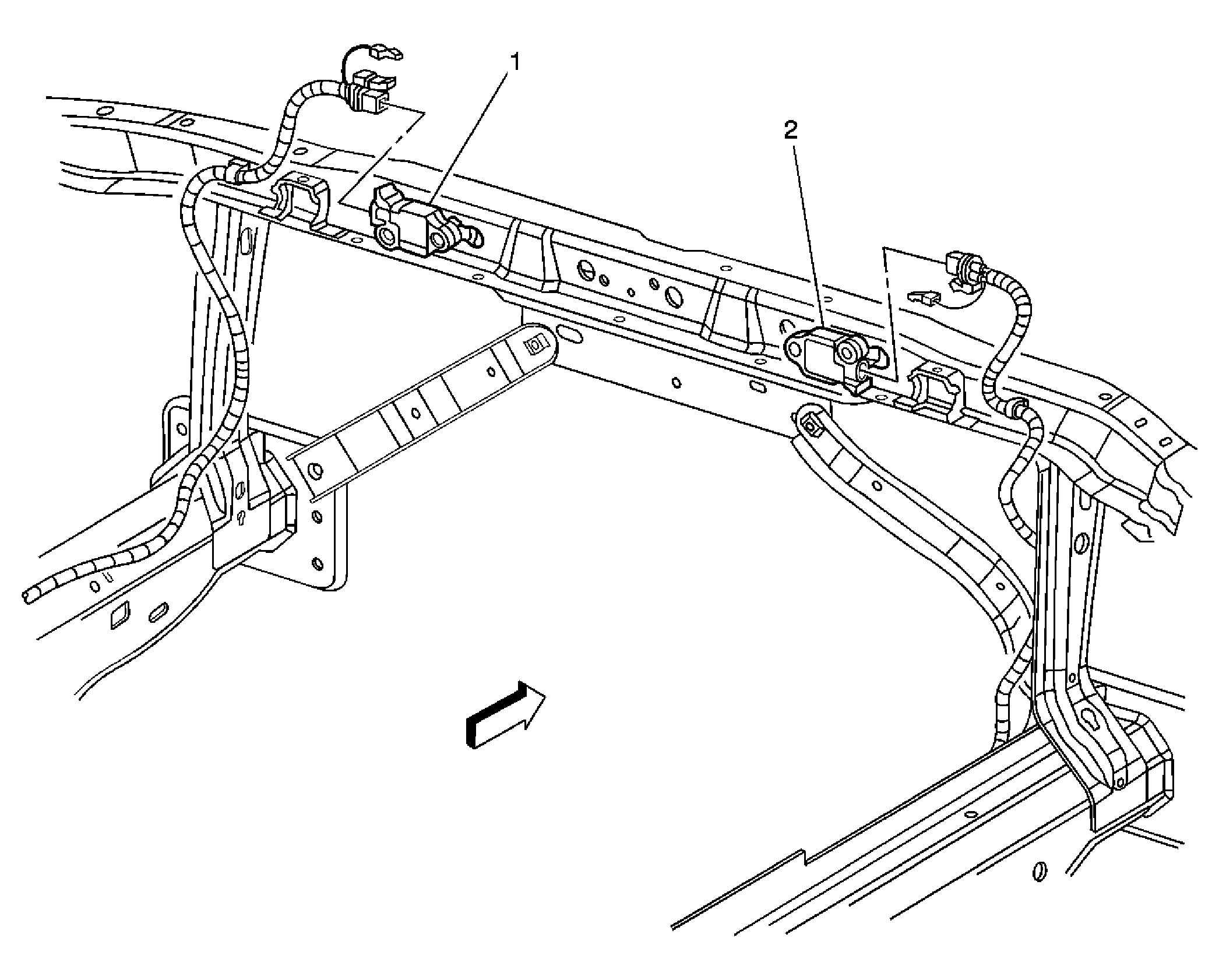

| Callout |
Component Name |
| 1 |
Inflatable Restraint Front End Sensor - Left |
| 2 |
Inflatable Restraint Front End Sensor - Right |
Courtesy of GENERAL MOTORS CORP.

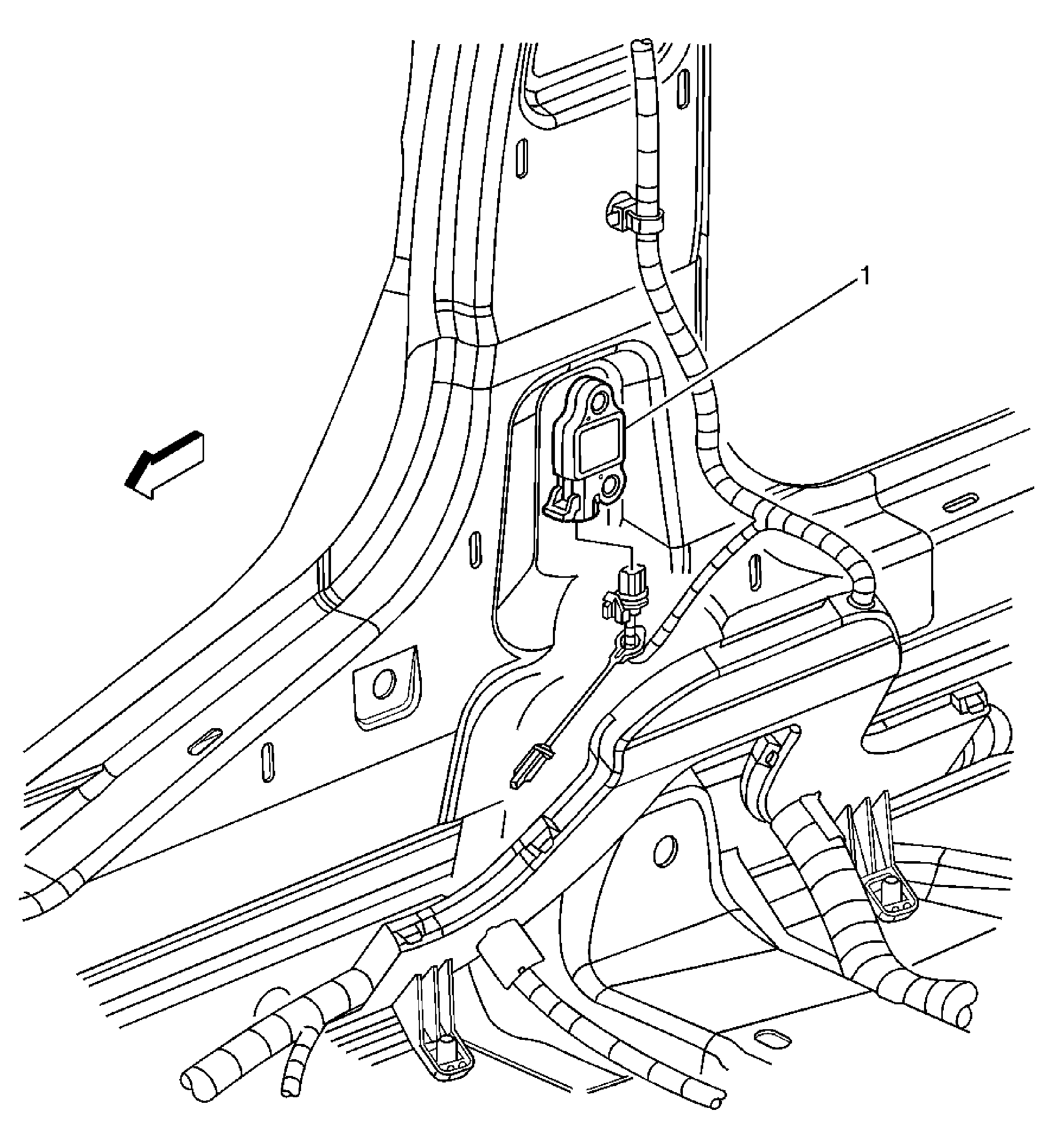

| Callout |
Component Name |
| 1 |
Inflatable Restraint Side Impact Sensing Module (SISM) - Right, Left Similar |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module/Horn Switch |
| 2 |
Steering Wheel Controls - Left |
| 3 |
Steering Wheel Controls - Right |
| 4 |
Steering Wheel Controls - Left Connector |
| 5 |
C208 |
| 6 |
Steering Wheel |
| 7 |
Steering Column |
| 8 |
Inflatable Restraint Steering Wheel Module Coil |
| 9 |
Inflatable Restraint Steering Wheel Module Connector C1 |
| 10 |
Inflatable Restraint Steering Wheel Module Connector C2 |
| 11 |
C208 |
| 12 |
Steering Wheel Controls - Right Connector |
