Antilock Brake System Schematics

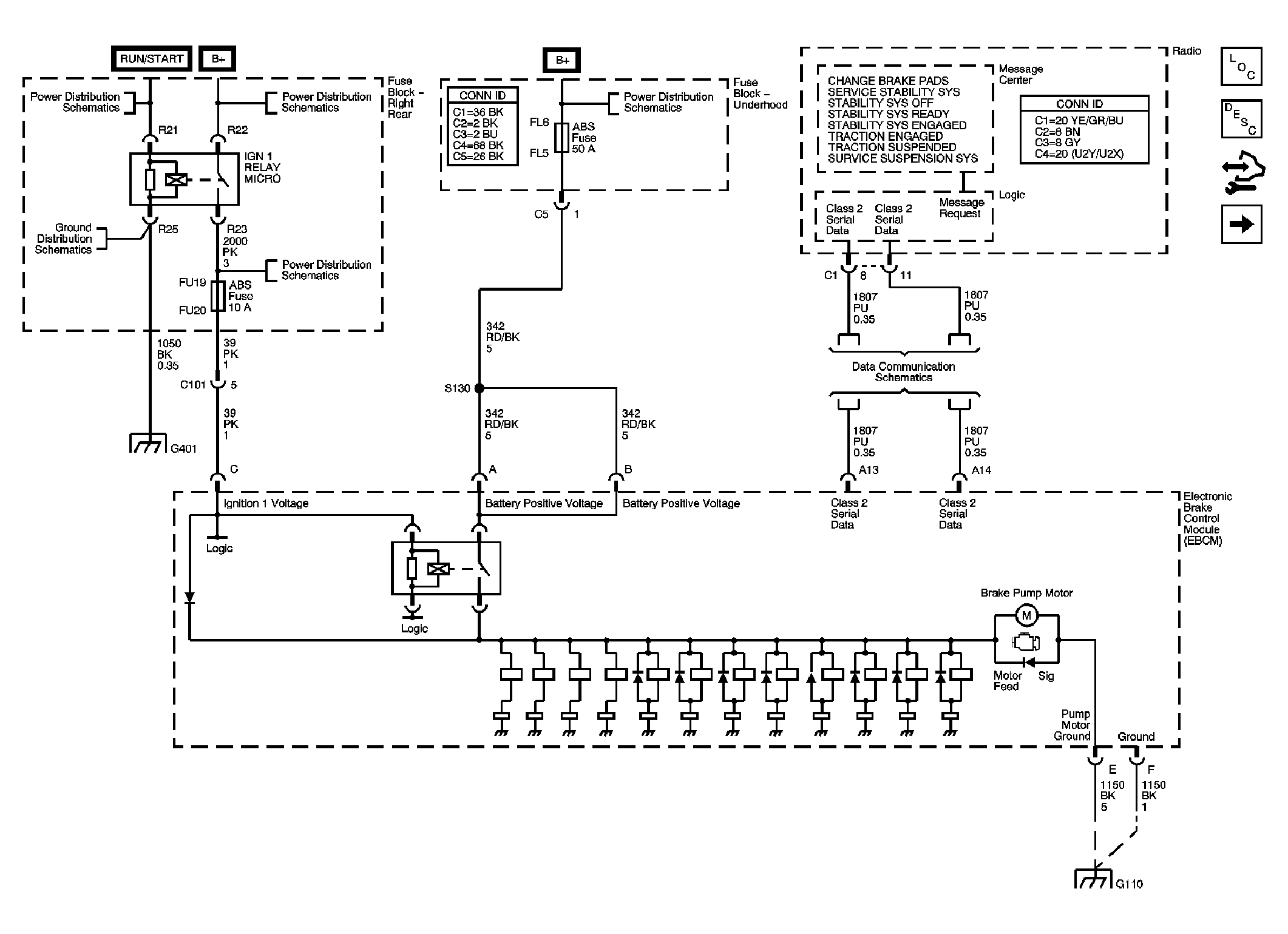

Fig 1: Power, Ground, Serial Data, and DIC

Courtesy of GENERAL MOTORS CORP.

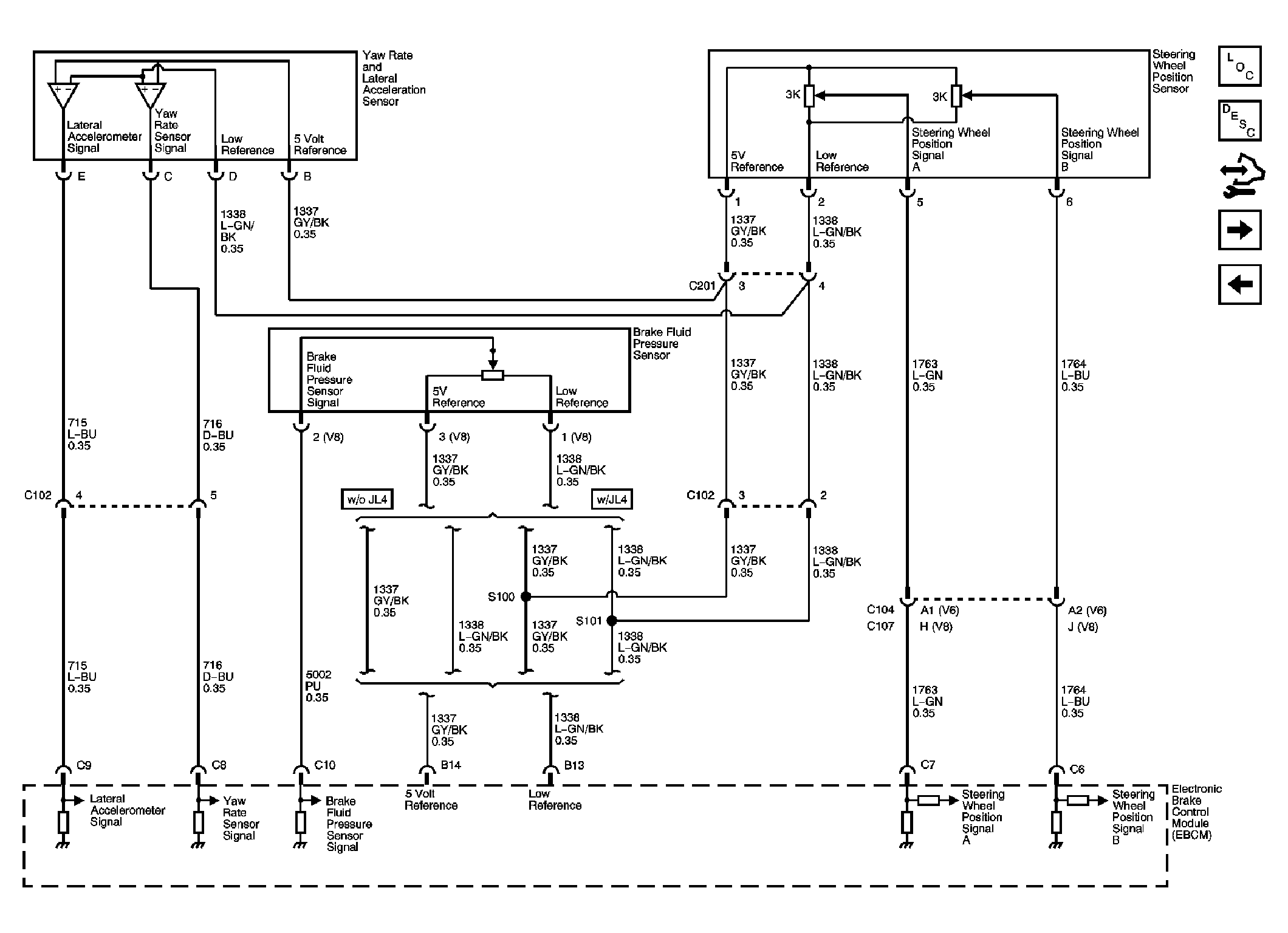

Fig 2: Vehicle Stability Enhancement System (JL4) (J56 for LS2)

Courtesy of GENERAL MOTORS CORP.

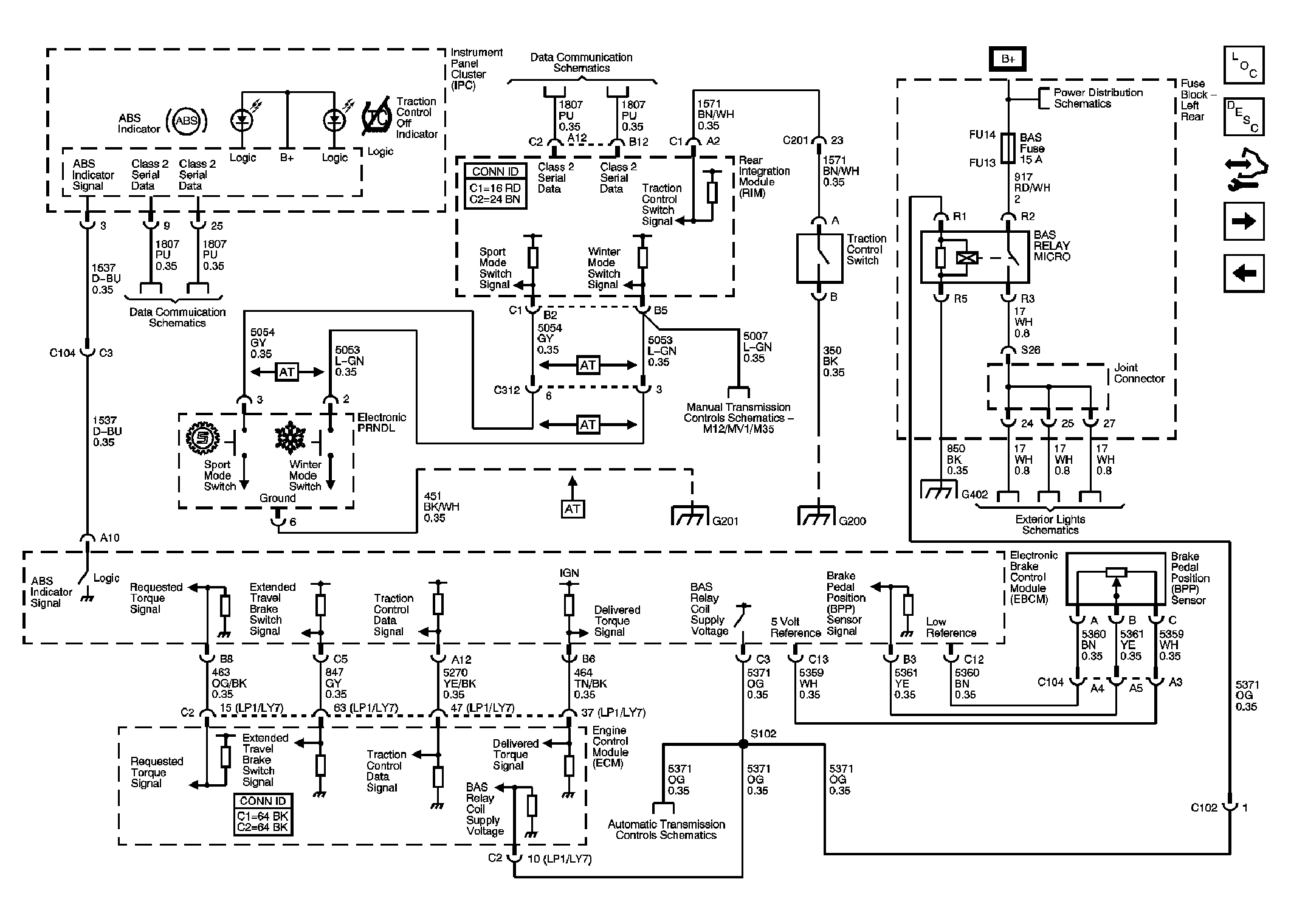

Fig 3: BPP Sensor, Switches, and Indicators - 2.8L/3.6L (LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

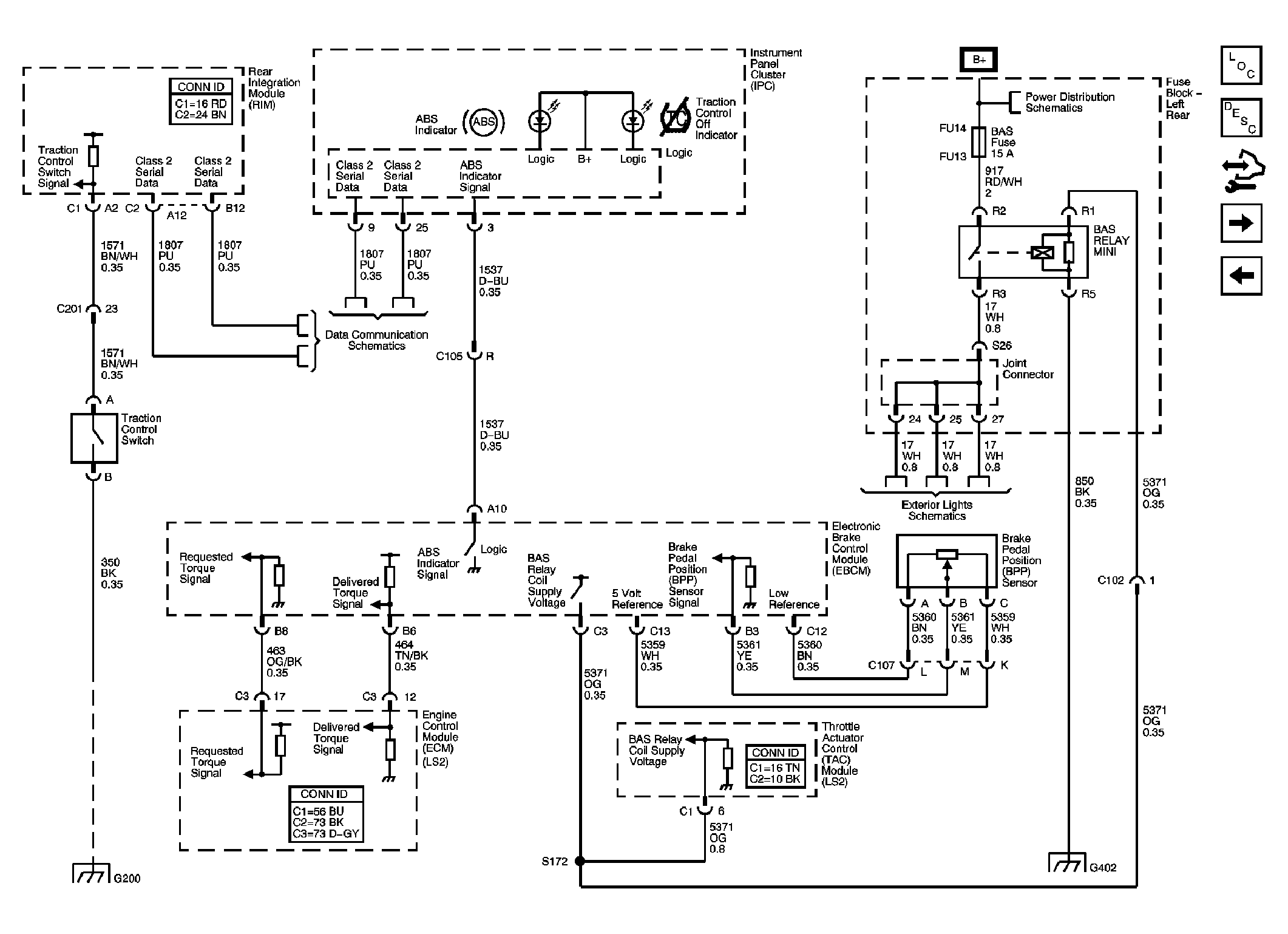

Fig 4: BPP Sensor, Switches, and Indicators - 6.0L (LS2)

Courtesy of GENERAL MOTORS CORP.

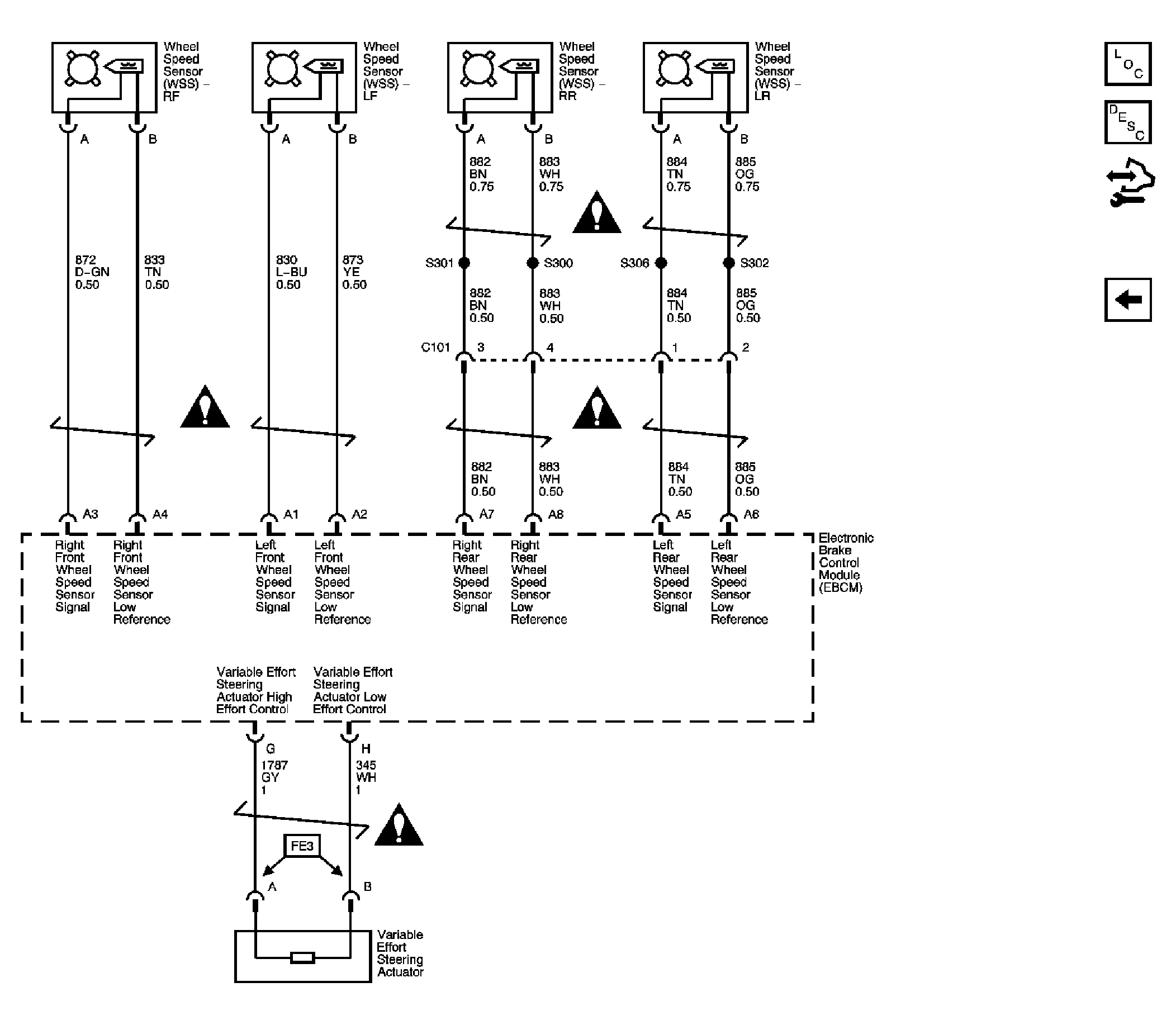

Fig 5: Wheel Speed Sensors and Variable Effort Steering Actuator

Courtesy of GENERAL MOTORS CORP.
