Remote Function Component Views

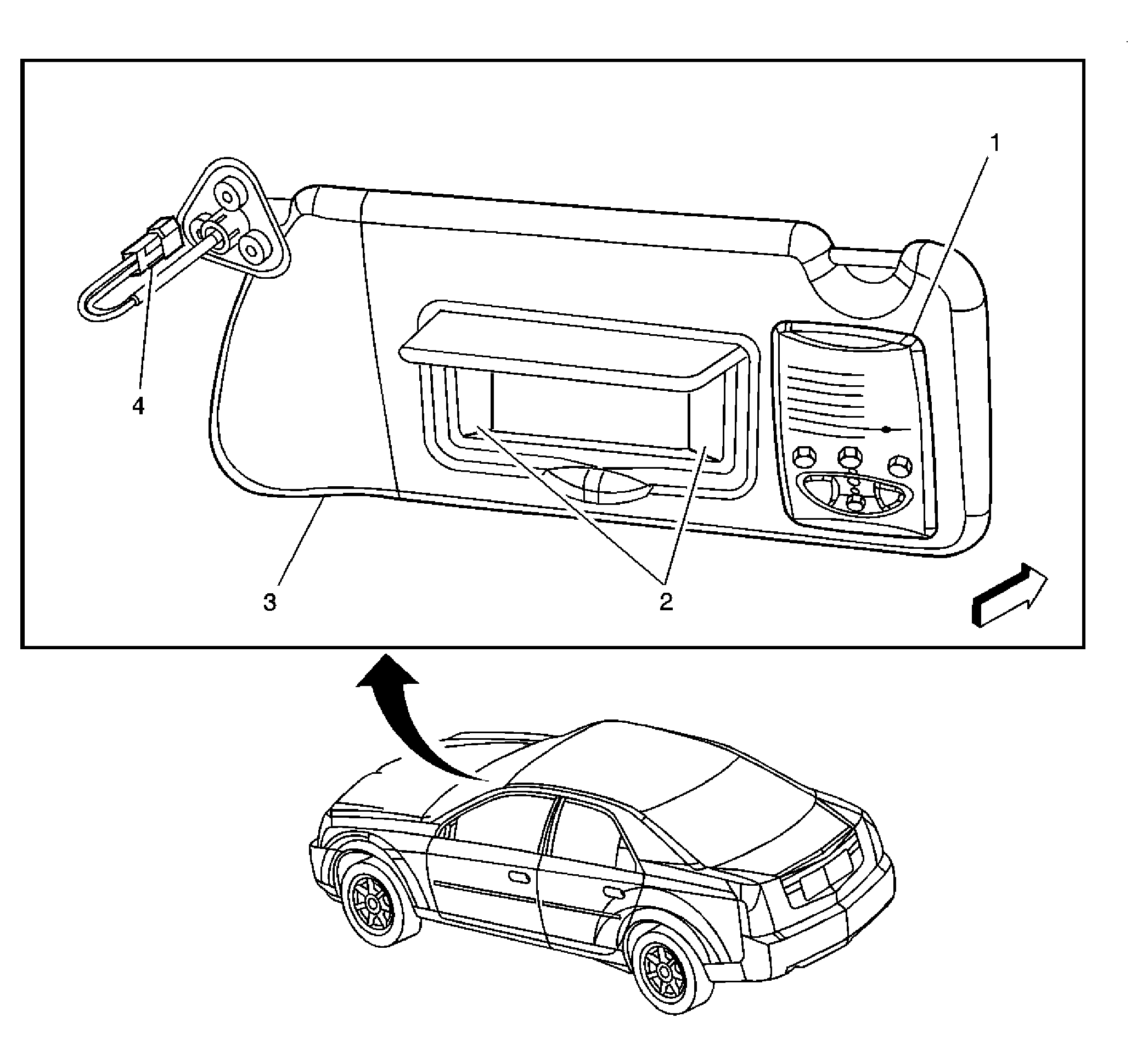

Fig 1: Identifying Garage Door Opener Subsystem Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener (GDO)
2	Vanity Lamps - Driver
3	Sunshade - Driver (LHD shown, RHD similar)
4	Sunshade - Driver Connector
