Mirror Component Views

Fig 1: Headliner Component Views - Bottom
GM1657333Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunshade - Left Rear (DC5)
2 Rear Park Assist Indicator (UFR)
3 Courtesy Lamp - Right Rear (V4U)
4 Sunshade - Right Rear (DC5)
5 Garage Door Opener Transmitter (UG1)
6 Noise Compensation Microphone (UQA)
7 Courtesy Lamp - Right Front (V4U)
8 Sunshade - Right Front
9 Sunshade Switch (DE9)
10 Inflatable Restraint I/P Module Indicator
11 Inside Rearview Mirror (ISRVM)
12 Onstar Button Assembly (UE1)
13 Sunroof Switch (CF5)
14 Sunshade - Left Front (- V4U)
15 Courtesy Lamp - Left Front (V4U)
16 Cellular Microphone (UE1/U3Q/U3R/U3U)
17 Courtesy Lamp - Left Rear (V4U)
Fig 2: Driver Door Component Views

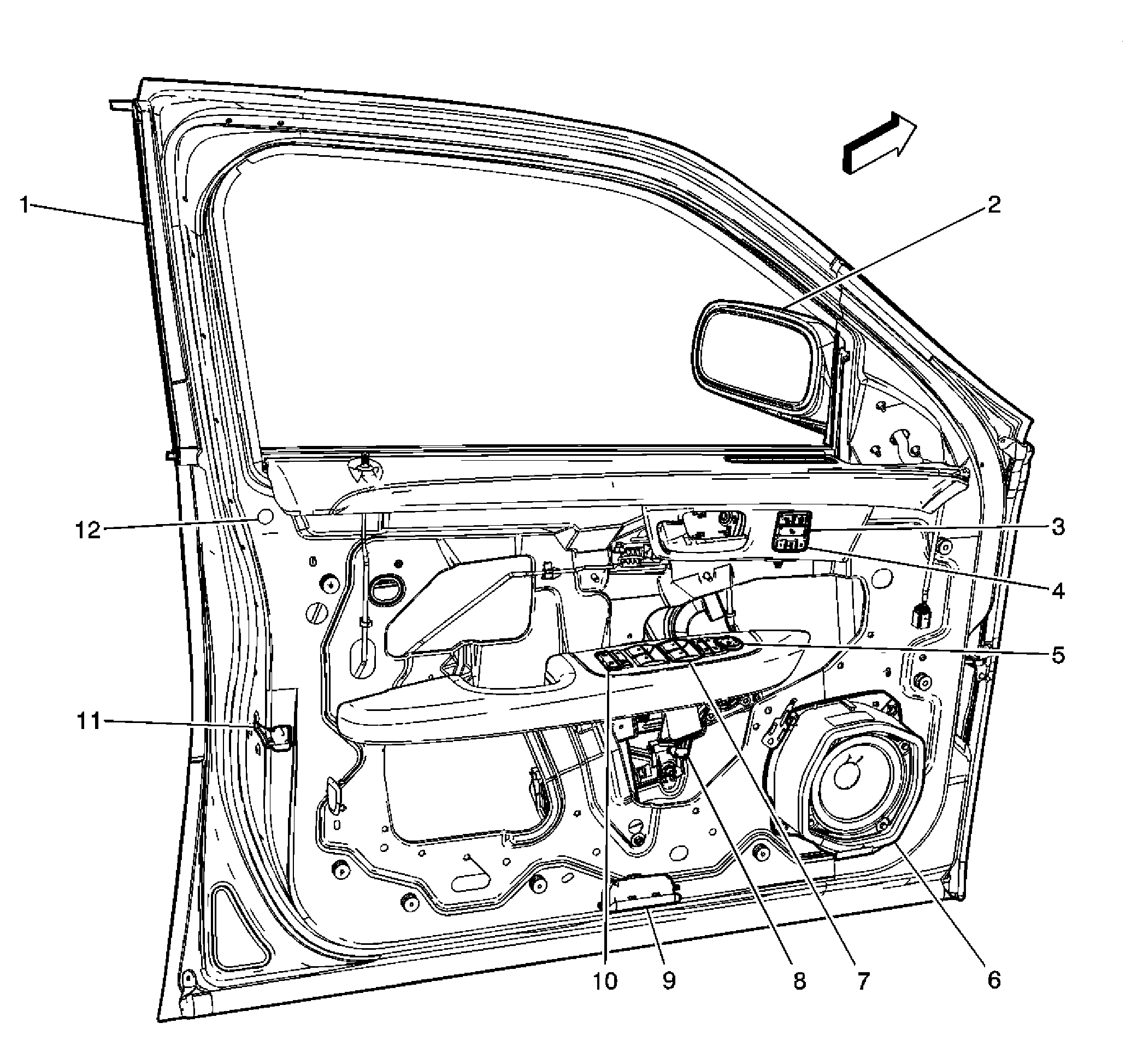

GM1657313Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Outside Rearview Mirror - Driver
3 Heated and Cooled Seat Switch - Driver (KB6)
4 Memory/Personalization Function Switch (A45)
5 Mirror Switch
6 Speaker - LF Door
7 Window Switch - Driver Door
8 Window Motor - Driver
9 Courtesy Lamp - Left Front Door
10 Door Lock Switch Assembly
11 Door Latch Assembly - Driver
12 Door Lock Key Cylinder Switch - Driver
Fig 3: Passenger Door Component Views

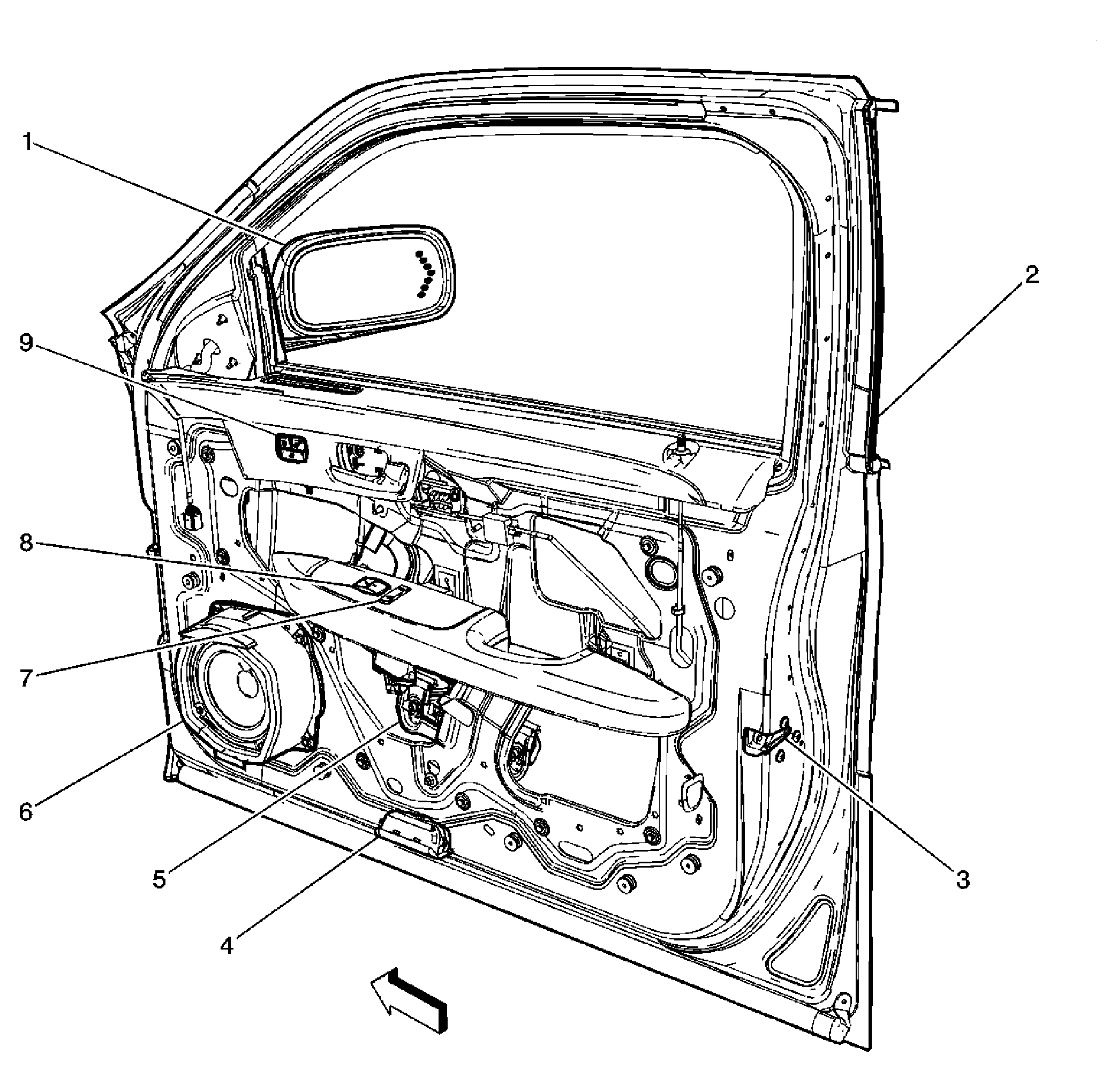

GM1657321Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Passenger
2 Door Frame
3 Door Latch Assembly - Front Passenger
4 Courtesy Lamp - Right Front Door
5 Window Motor - Front Passenger
6 Speaker - RF Door
7 Window Switch - Front Passenger
8 Heated Seat Switch - Front Passenger
9 Heated Cooled Seat Switch (KB6) - Front Passenger
