Remote Function Schematics

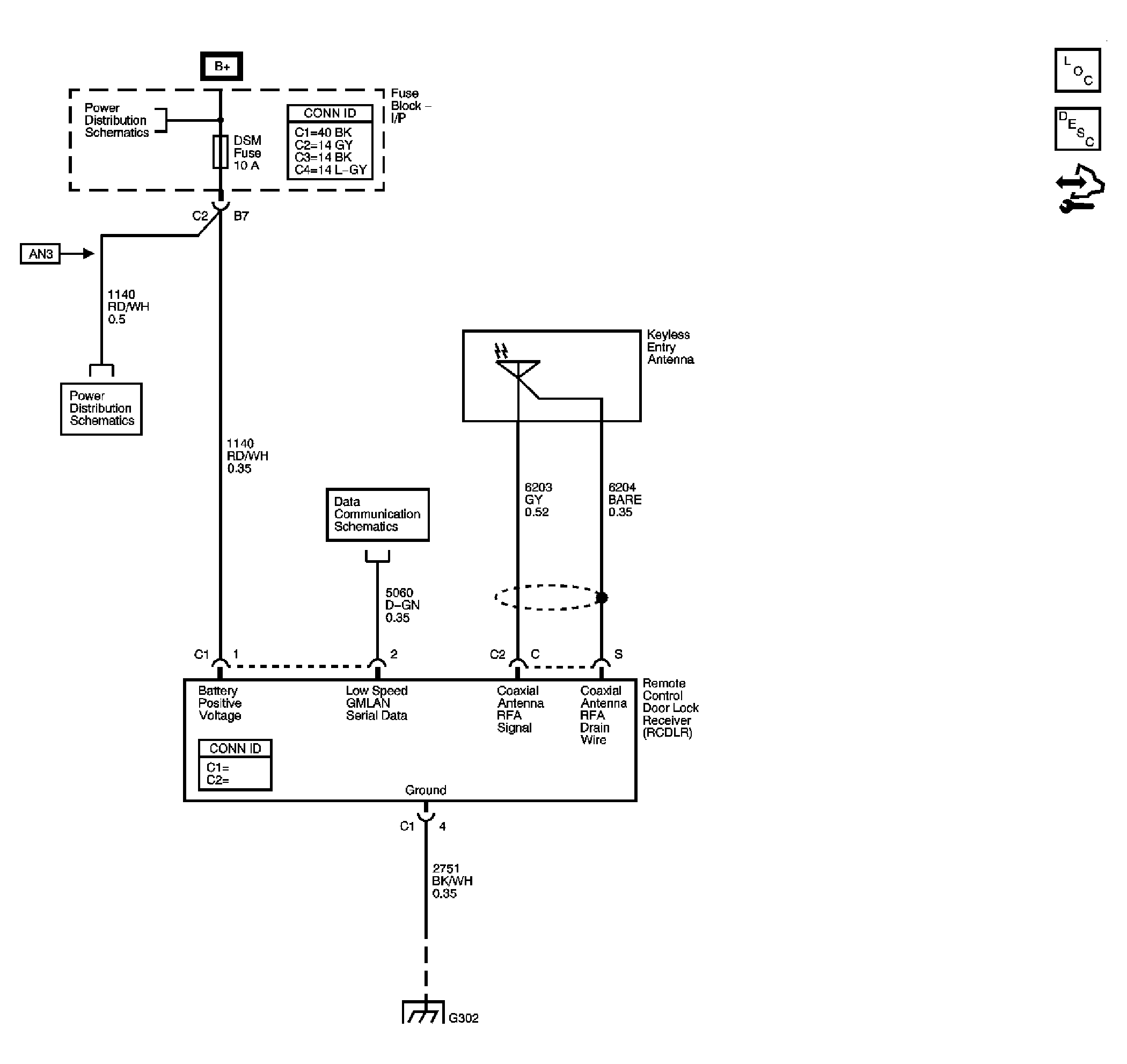

Fig 1: Keyless Entry (AP3/AP8) Schematic
GM1702736Courtesy of GENERAL MOTORS CORP.

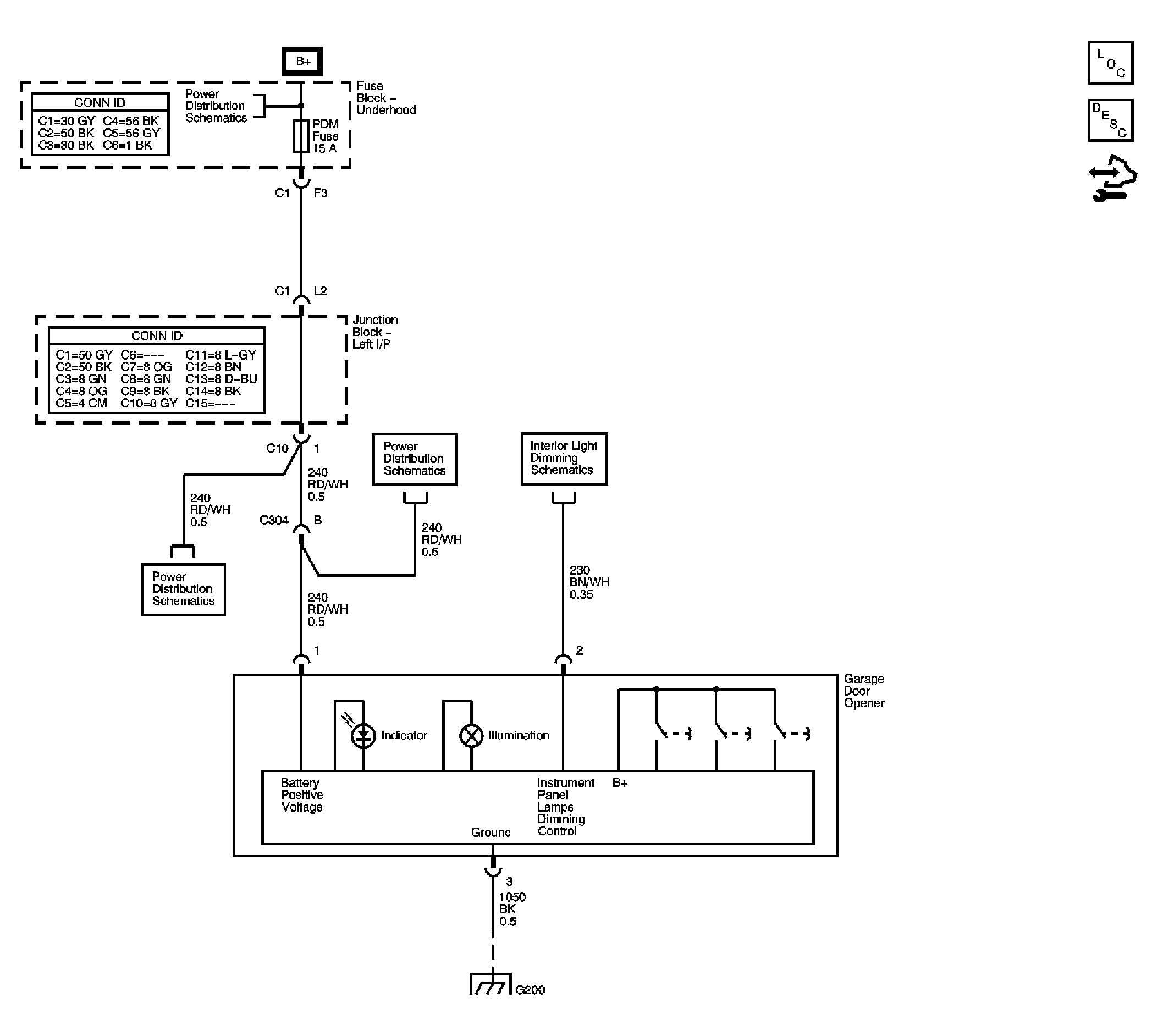

Fig 2: Garage Door Opener Schematic
GM1701116Courtesy of GENERAL MOTORS CORP.
