Antilock Brake System Schematics

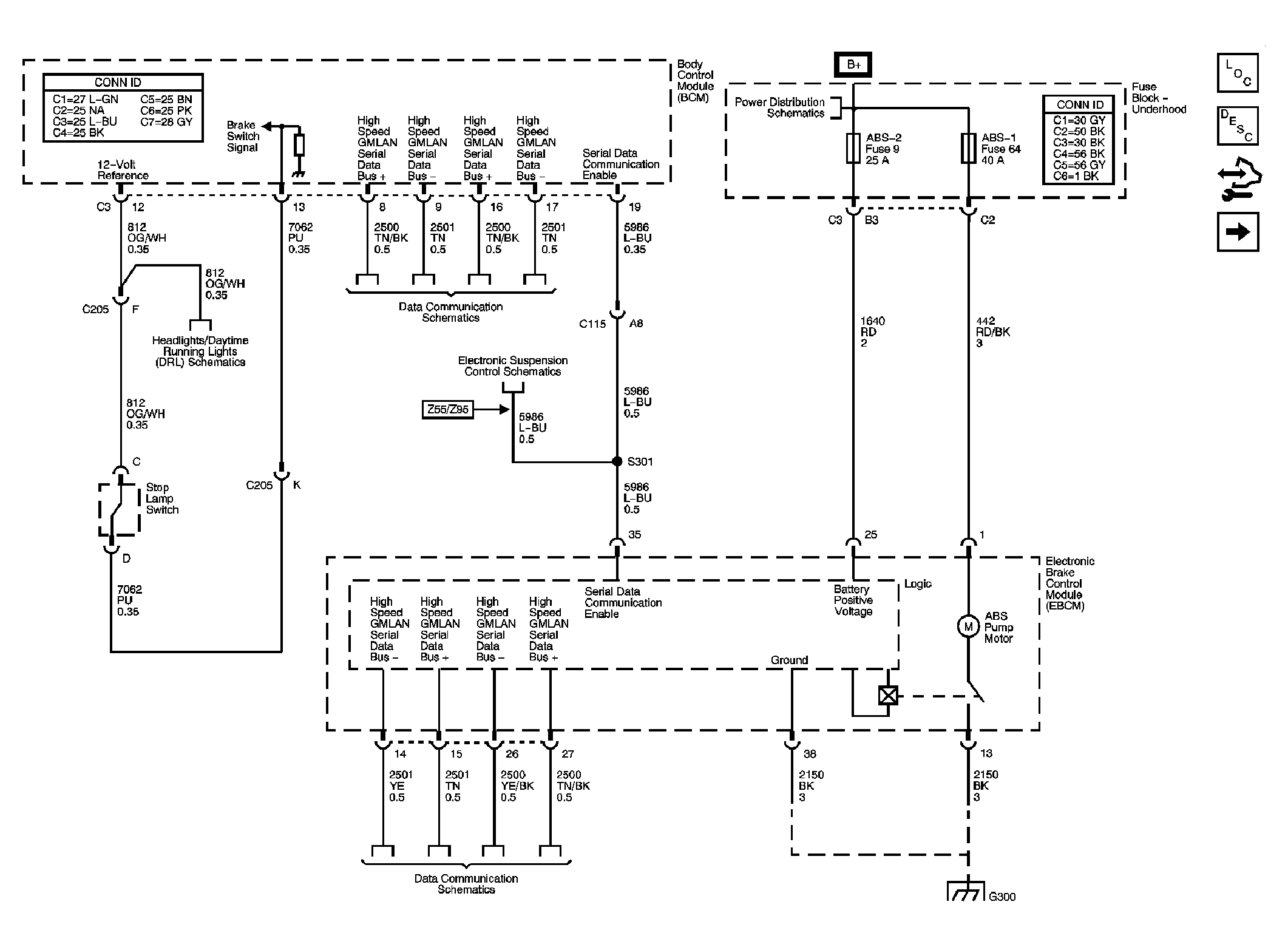

Fig 1: Module Power, Ground, & Serial Data, Pump Motor & Brake Switch Schematic

Courtesy of GENERAL MOTORS CORP.

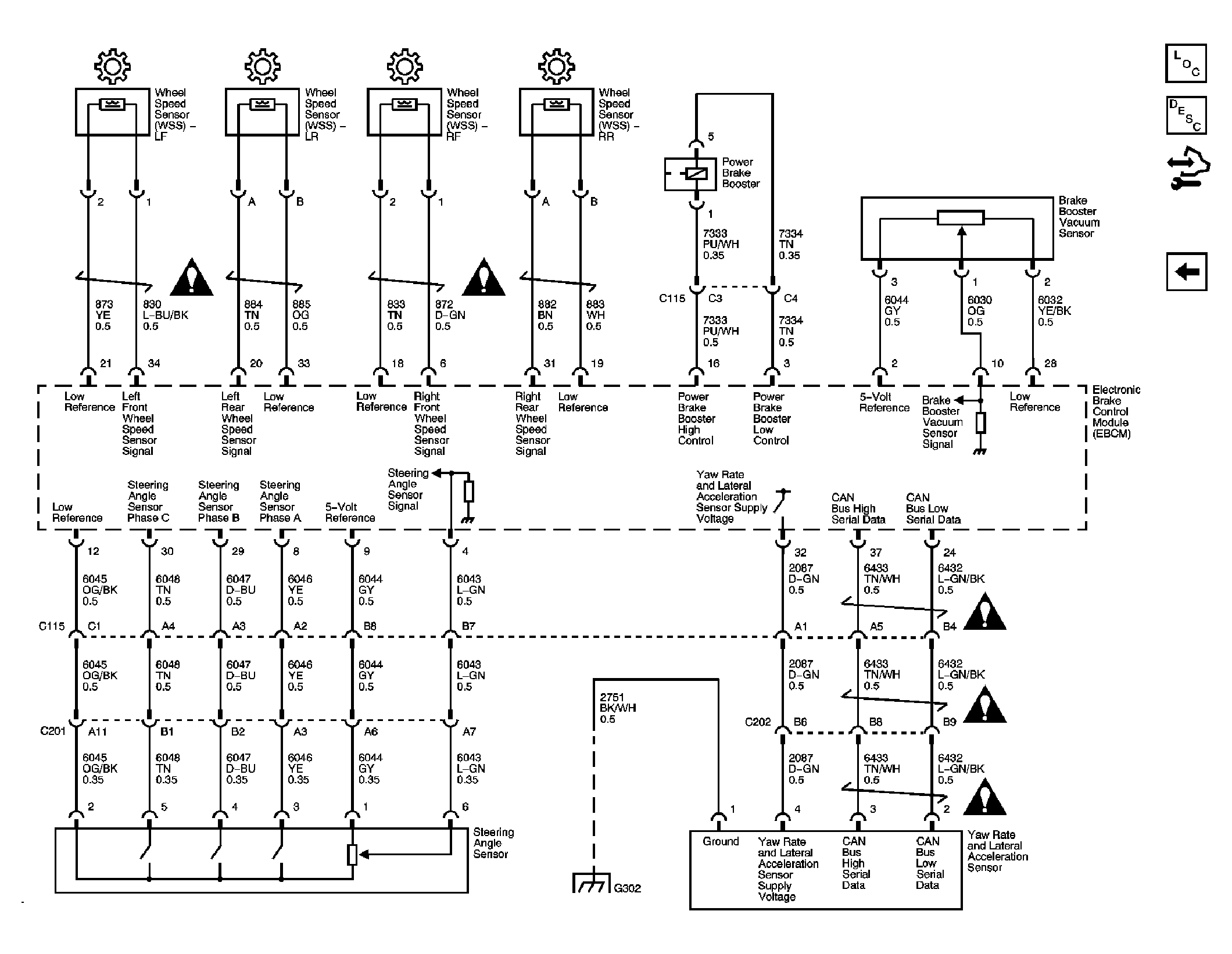

Fig 2: Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
