Clock Replacement

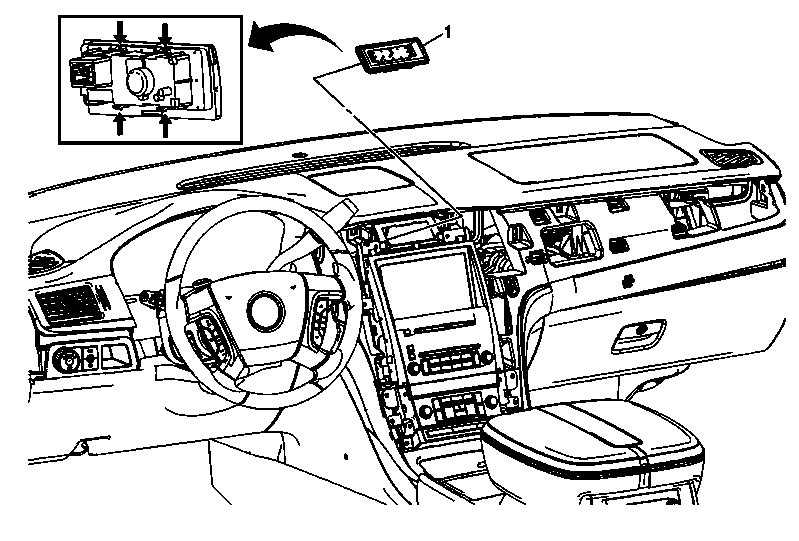

Fig 1: View Of Clock Assembly
GM1703204Courtesy of GENERAL MOTORS CORP.
Clock Replacement

Callout Component Name
Preliminary Procedure:
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) .
1 Clock Assembly
Tip:
  1. Disconnect the electrical connection.
  2. Squeeze the tabs to release the clock from the instrument panel accessory trim plate.
