Frame Contact Hoist

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Front Hoist Pads

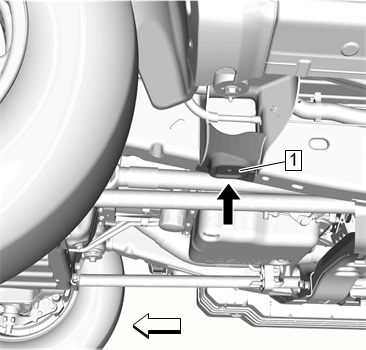

Fig 1: Front Hoist Pads And Body Mount Bracket

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

Position the front hoist pads under the front frame for all pickup and all utilities just after the rear edge of the number 1 body mount bracket (1).

Rear Hoist Pads

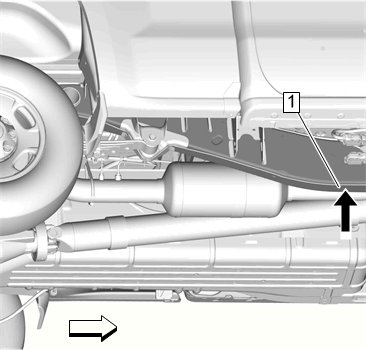

Fig 2: Rear Hoist Pads And Frame Rail

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The rear hoist pads must not contact the body rocker panels or the floor pan.

Position the rear hoist pads under the flat portion of the frame rail (1), just in front of the rear spring.
