Radio Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

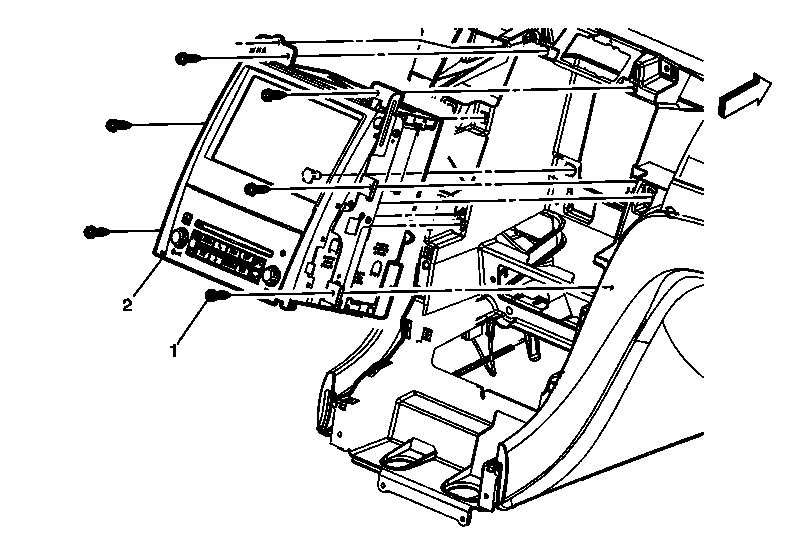

Fig 1: Radio (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
NOTE: Use a scan tool to retrieve the radio part number before removing the radio from the vehicle. Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) , Instrument Panel Accessory Trim Plate Replacement (Cadillac) .
1	Radio Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Radio Assembly Disconnect the 4 electrical connectors. Disconnect the antenna cable. Transfer components, as necessary. Reprogram the radio after replacement. Refer to Control Module References .
