Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Using a flat bladed tool, pry the dome lamp lens open.

Fig 1: Prying Dome Lamp Lens Open
Courtesy of GENERAL MOTORS CORP.
Remove the dome lamp lens (2) completely from the dome lamp housing.

Fig 2: Removing Dome Lamp Lens
Courtesy of GENERAL MOTORS CORP.

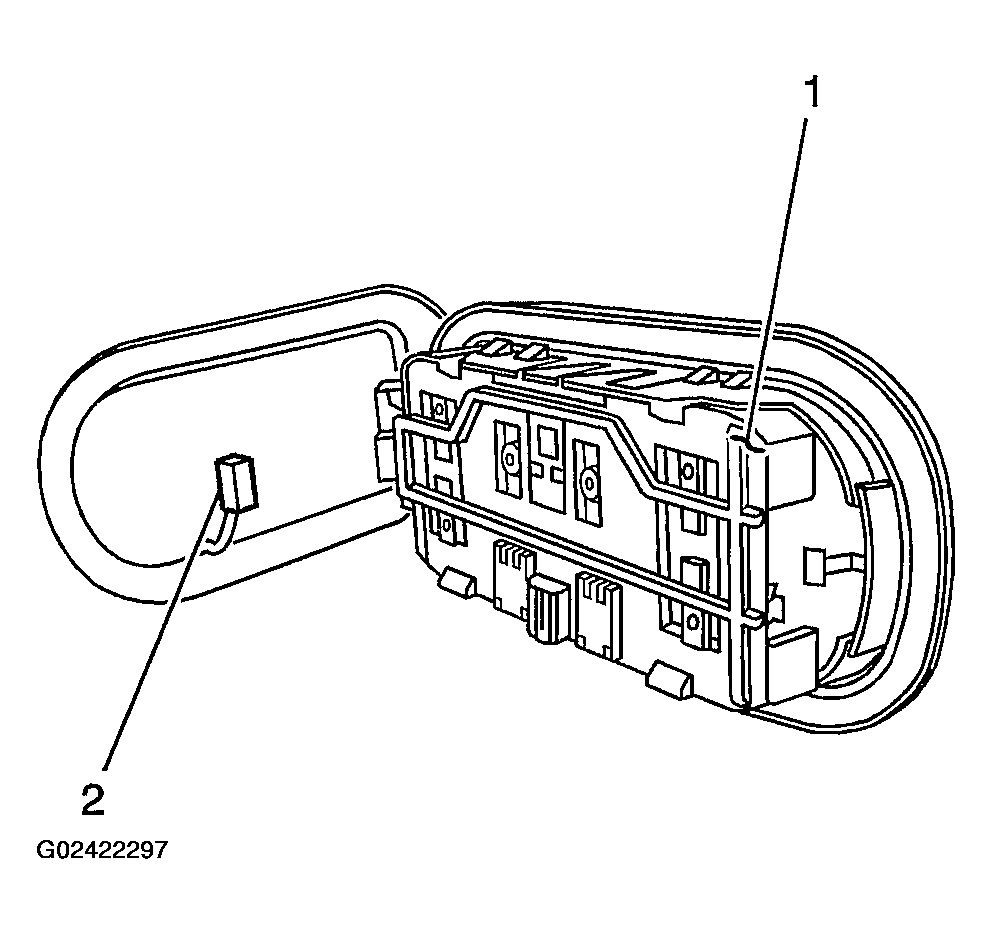

Partially remove the dome lamp housing (1) from the headliner.
Disconnect the electrical connector (2) from the dome lamp housing.

Fig 3: Disconnecting Electrical Connector From Dome Lamp Housing
Courtesy of GENERAL MOTORS CORP.
