Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Turn OFF the headlamp switch.
- Remove the radiator grille. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .

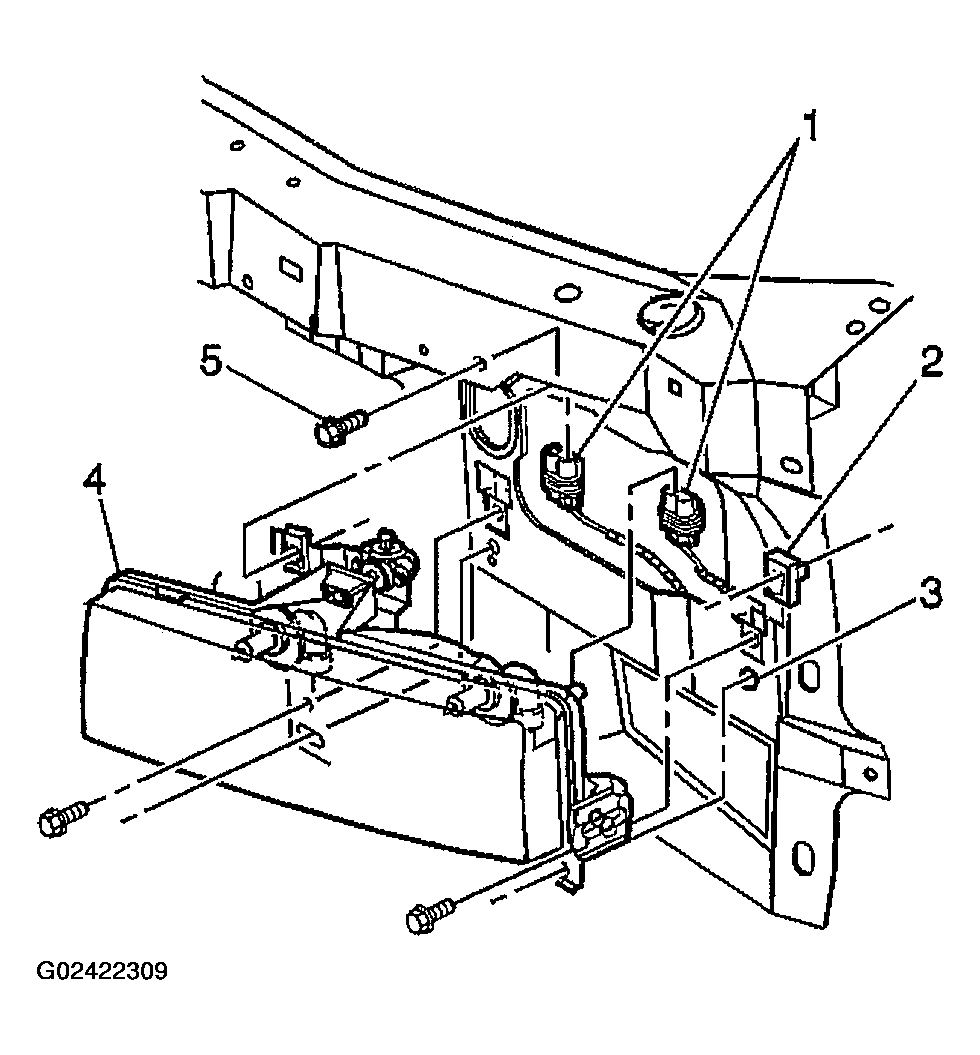

- Remove the bolts (5) that retain the composite headlamp to the radiator support.
Do not move the adjustment screws.
WARNING: Refer to HALOGEN BULB CAUTION . - Disconnect the electrical connector (1) from the headlamp assembly.
- Remove the composite headlamp (4) from the vehicle.
