Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper quarter panel applique. Refer to TAIL LAMP, BACK BODY OPENING APPLIQUE REPLACEMENT - SIDE .
  2. Remove the nuts (2) that retain the tail lamp to, the upper quarter panel.
  3. Remove the center high mounted stop lamp lens (2) from the center high mounted stop lamp applique (1).
  4. Disconnect the bulb sockets from the tail lamp (3).
  5. Remove the bulbs from the sockets by turning the bulbs in a counterclockwise direction.

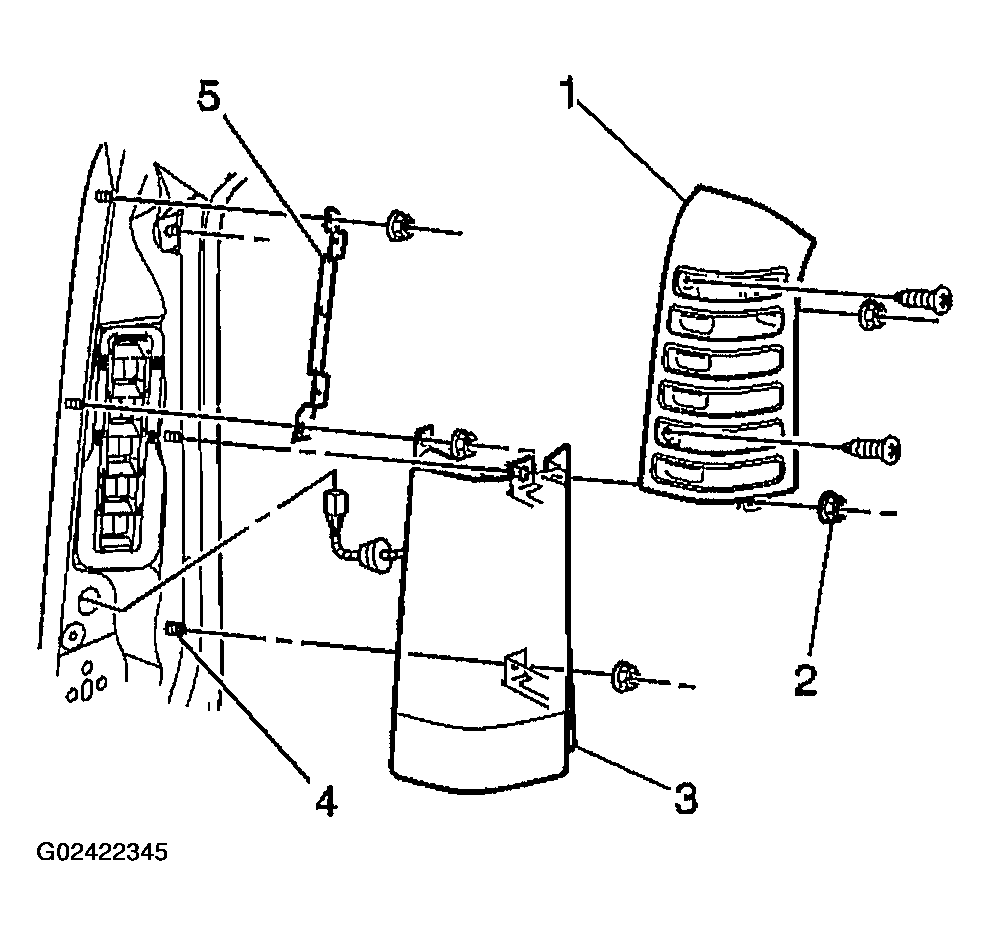

    Fig 1: Removing Tail Lamp
    G02422345Courtesy of GENERAL MOTORS CORP.
