Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radio and mounting bracket. Refer to Radio Replacement .
Remove the engine cover. Refer to ENGINE COVER REPLACEMENT .
Disconnect the antenna cable connector at the lower right of the instrument panel.
Remove the antenna cable (1) from the retaining clips on the instrument panel carrier.

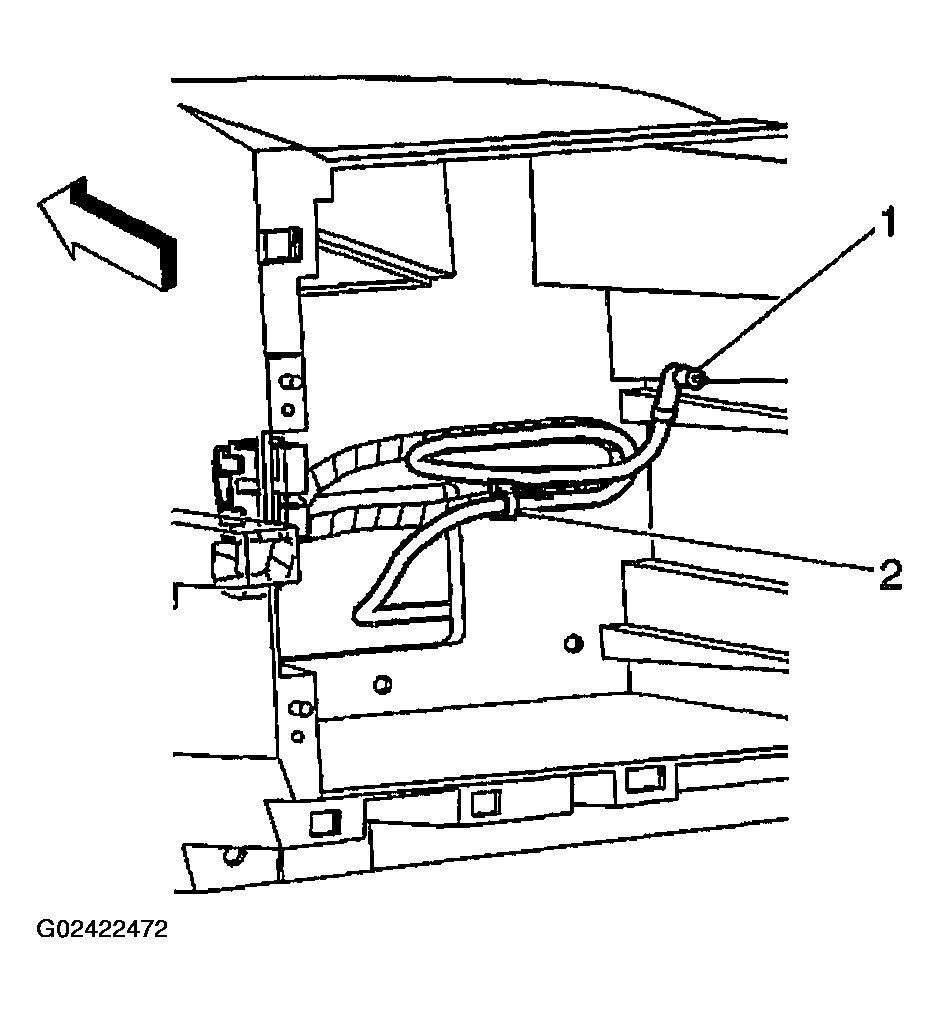

Fig 1: Removing Antenna Cable From Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Remove the antenna cable (1) from the vehicle.

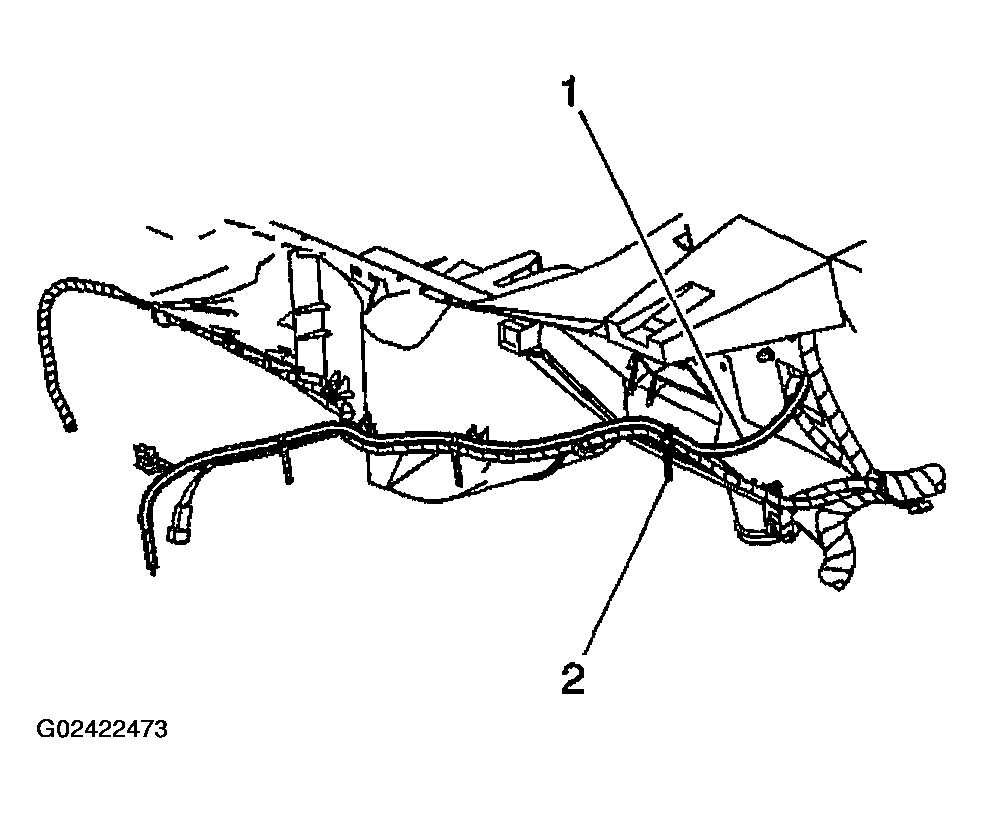

Fig 2: Removing Antenna Cable From Vehicle
Courtesy of GENERAL MOTORS CORP.
