Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new washer pump into the washer solvent container.
  2. Install the washer solvent container cap.

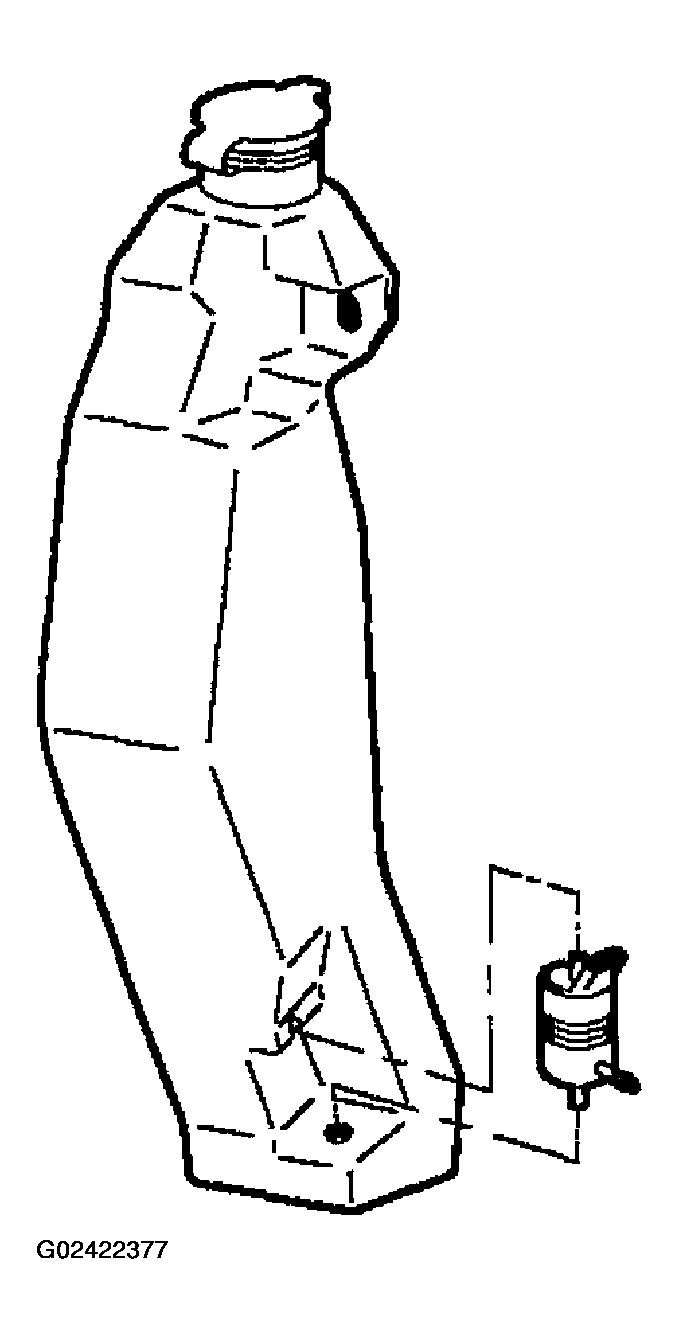

    Fig 1: Installing Washer Pump
    G02422377Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the new washer pump.
  4. Connect the washer hose to the new washer pump.
  5. Position the washer solvent container into the locating holes in the chassis.

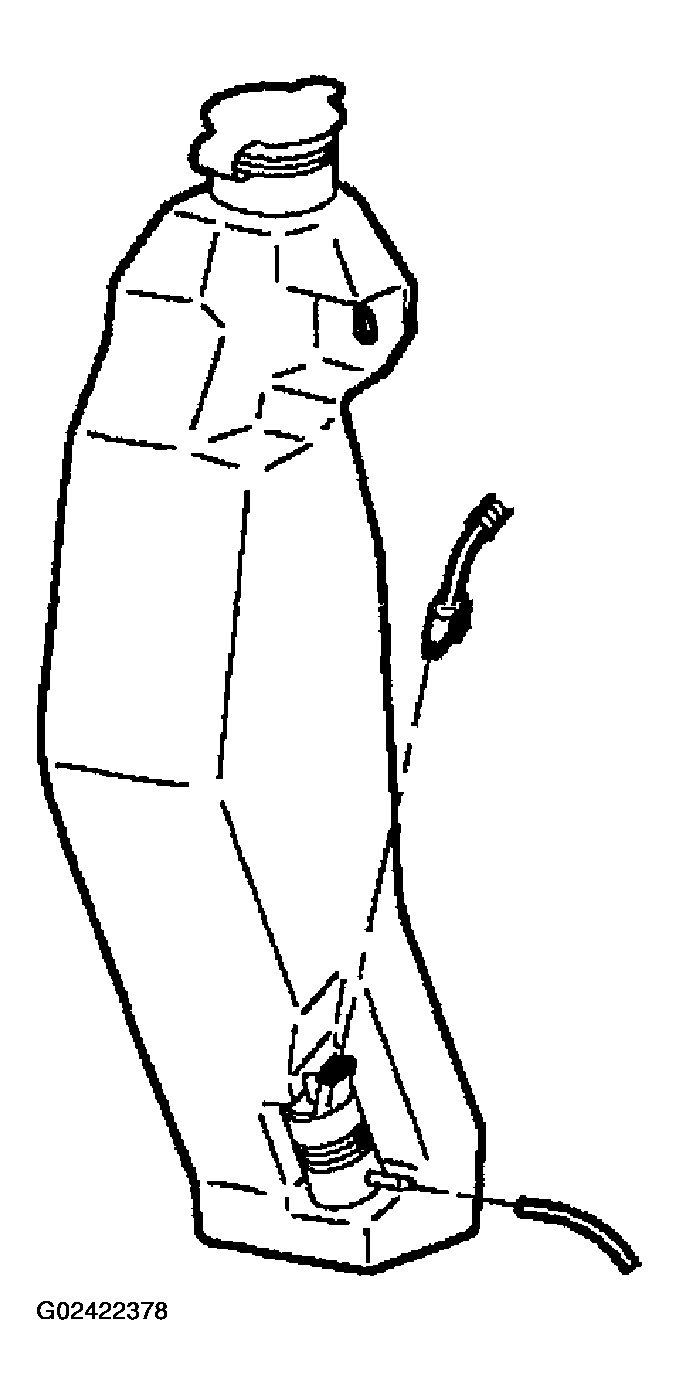

    Fig 2: Connecting Electrical Connector & Washer Hose
    G02422378Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  6. Install the washer solvent container with the bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  7. Install the upper fender support.
  8. Fill the washer solvent container.
  9. Close the hood.

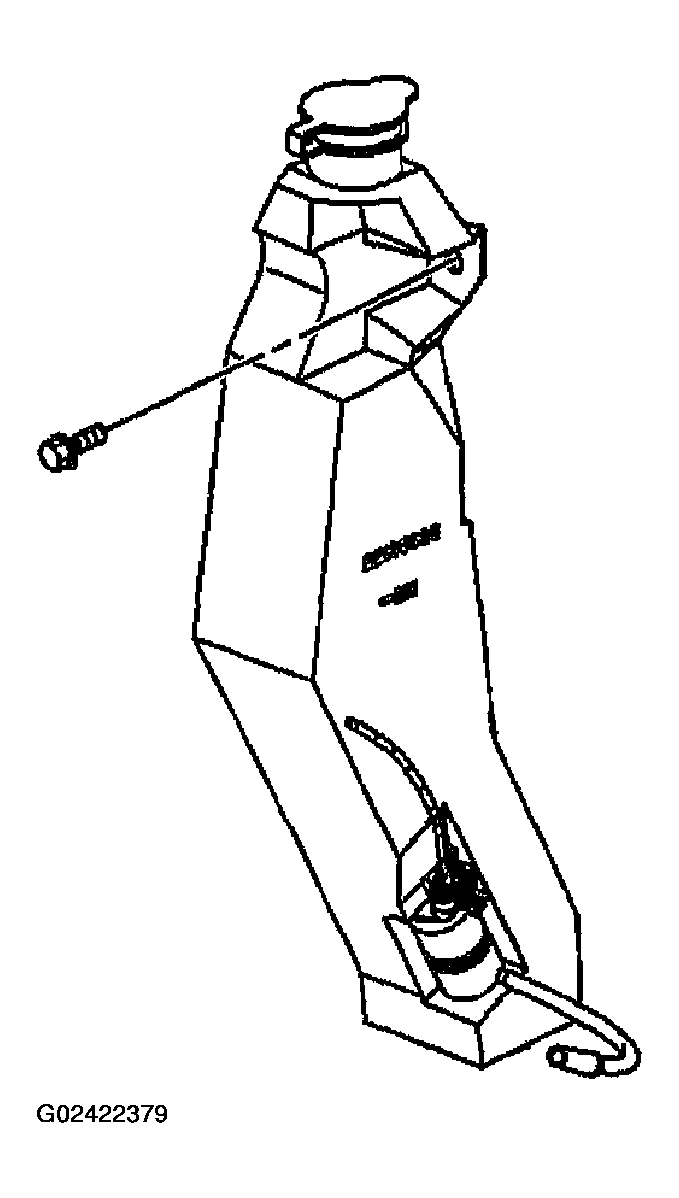

    Fig 3: Installing Washer Solvent Container With Bolt
    G02422379Courtesy of GENERAL MOTORS CORP.
