Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to FASTENER NOTICE .

Install the wiper motor onto the wiper drive system module with the 2 bolts.
Tighten

Tighten the bolts to 8 N.m (71 lb in).

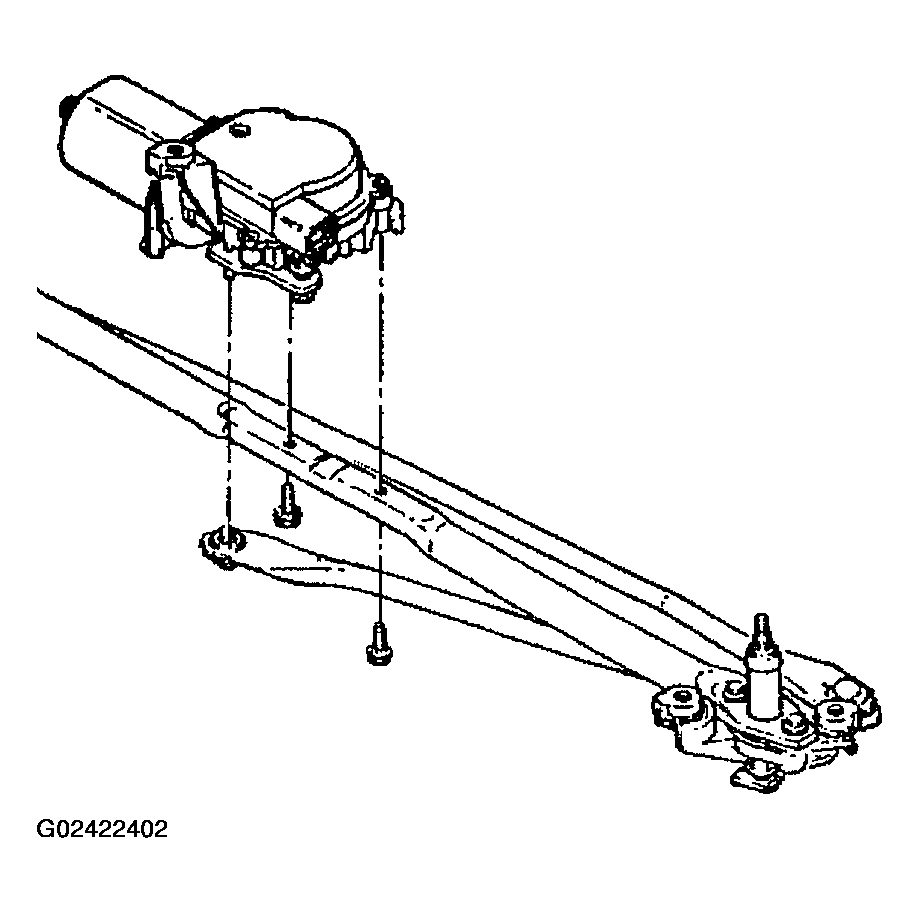

Fig 1: Installing Wiper Motor
Courtesy of GENERAL MOTORS CORP.
Connect the drive link onto the wiper motor crank arm using the J 39529 .

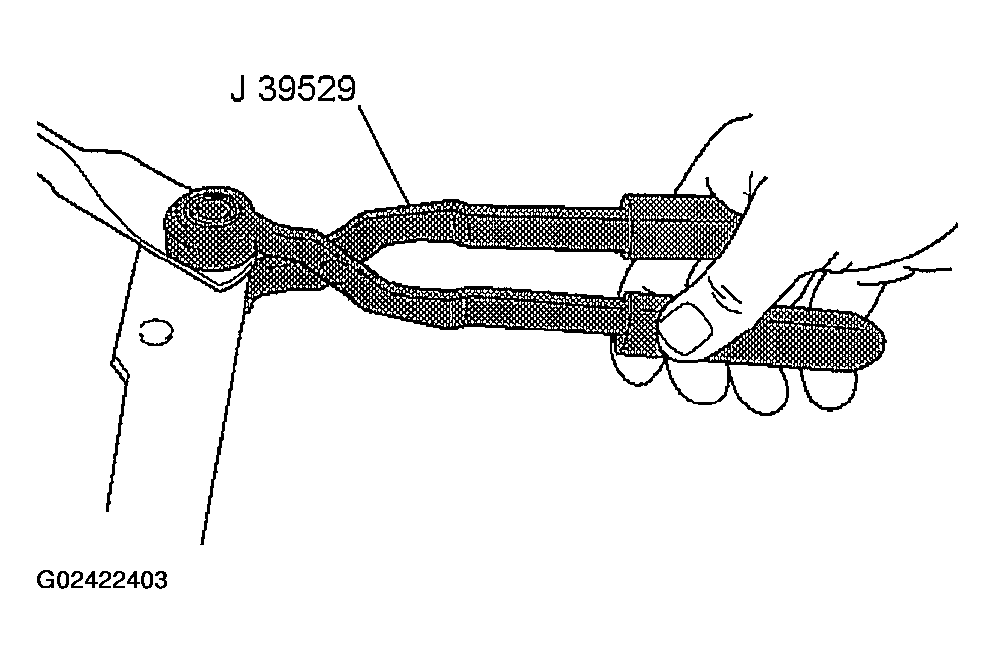

Fig 2: Connecting Drive Link Using J 39529
Courtesy of GENERAL MOTORS CORP.
Install the wiper drive system module on the vehicle.

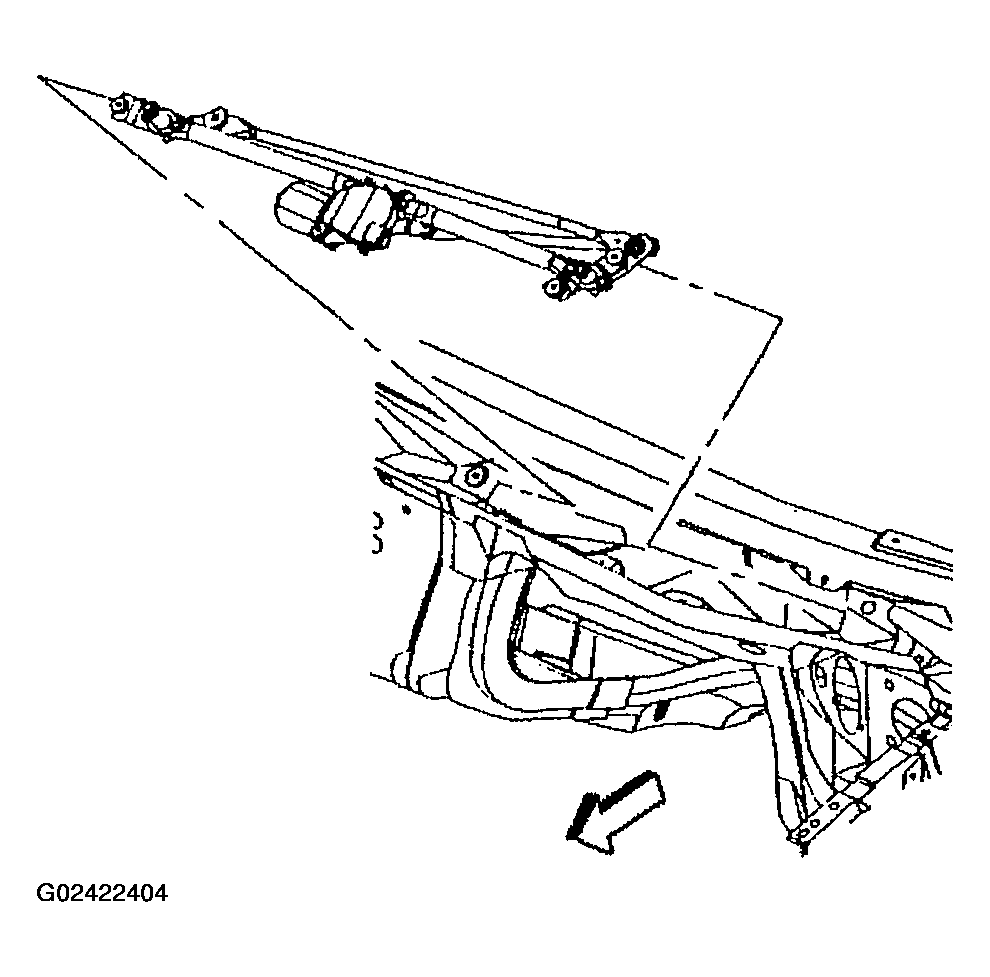

Fig 3: Installing Wiper Drive System Module
Courtesy of GENERAL MOTORS CORP.
Install the 4 bolts.
Tighten

Tighten the bolts to 8 N.m (71 lb in).

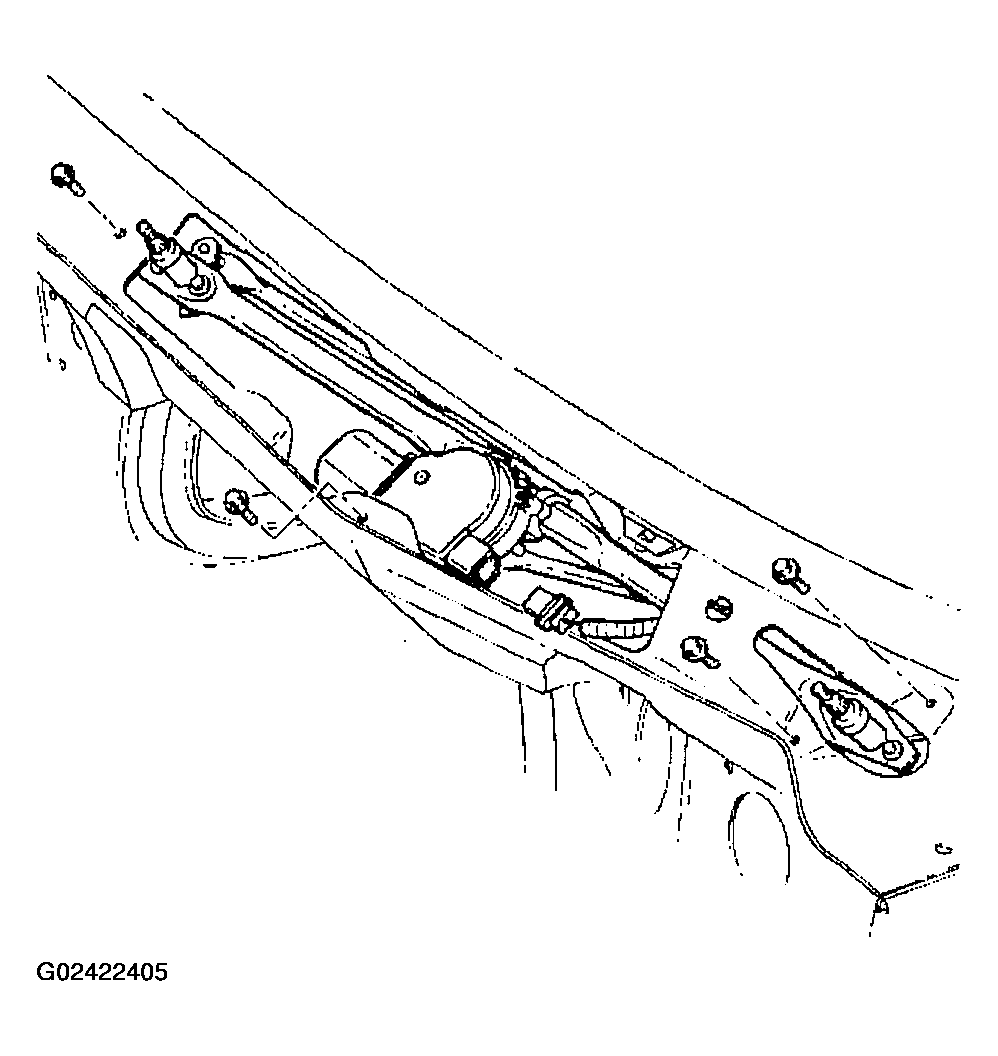

Fig 4: Installing Bolts
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the wiper motor.
Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
Install the wiper arms. Refer to Wiper Arm Replacement .
Operate the wipers and inspect for proper operation.

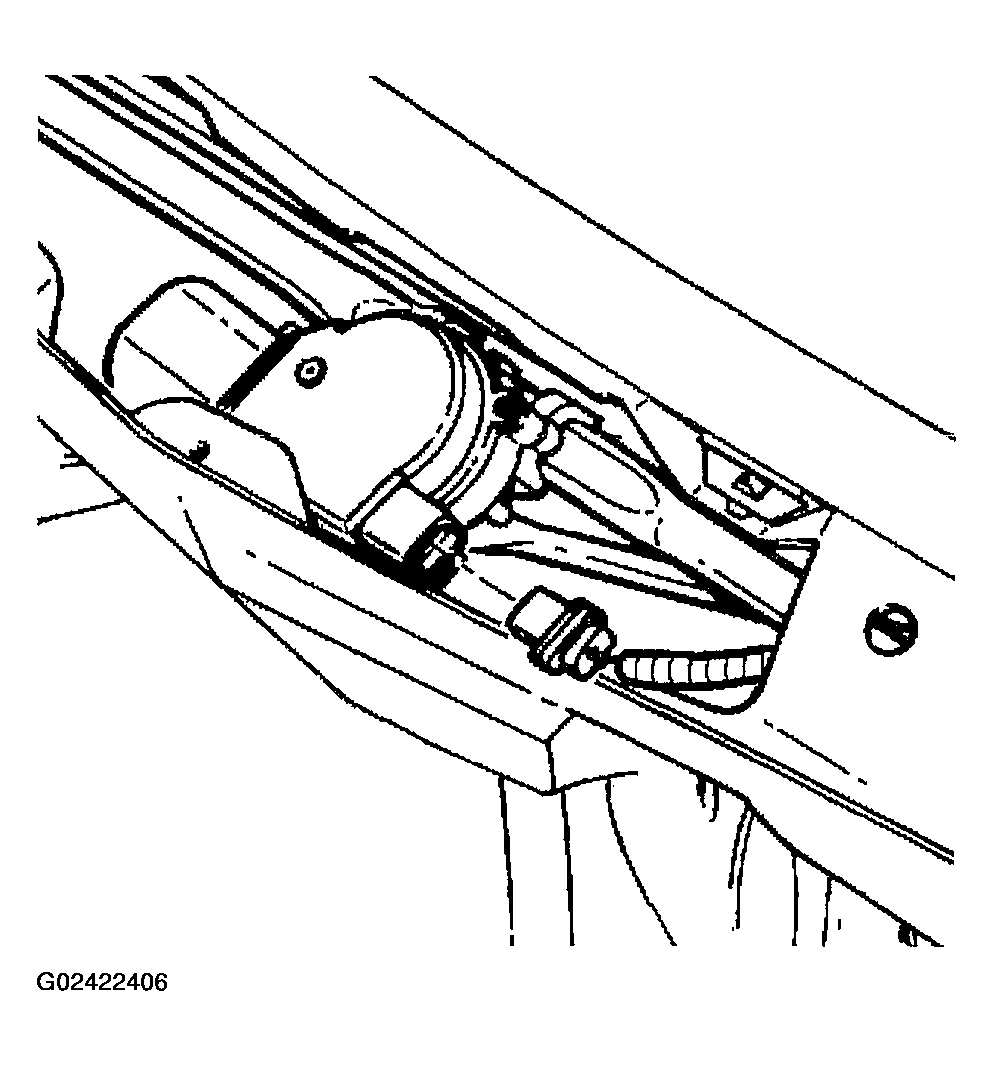

Fig 5: Connecting Electrical Connector To Wiper Motor
Courtesy of GENERAL MOTORS CORP.
