Inflatable Restraint Instrument Panel Module Indicator Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

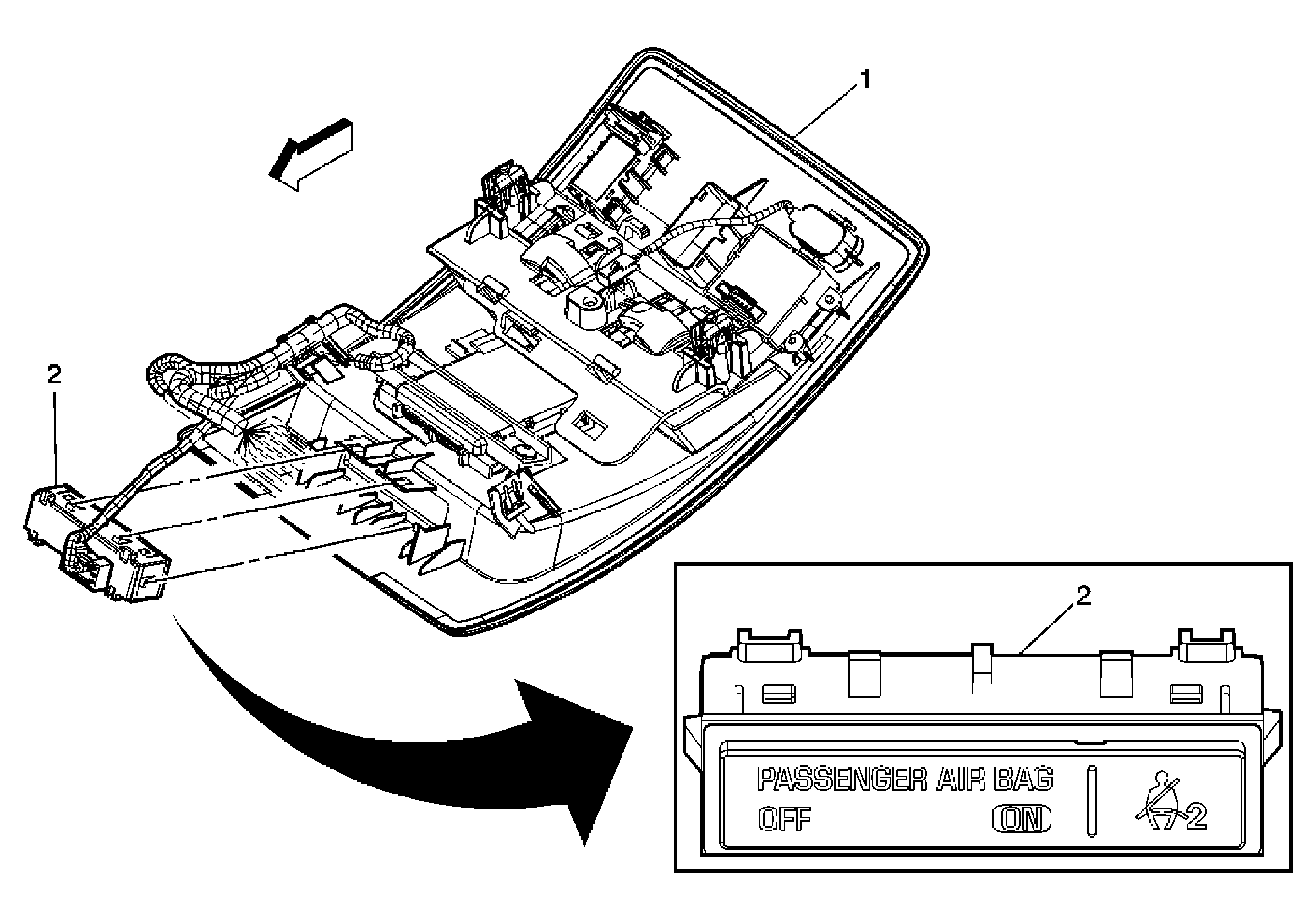

Fig 1: View Of Instrument Panel Inflatable Restraint Module Indicator Assembly & Overhead Console Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Console Assembly Refer to Roof Console Replacement .
2	Inflatable Restraint Instrument Panel Module indicator Assembly Tip: Disconnect electrical connector. Tabs on overhead console must be fully engaged with snap tab ramps on display to be fully secured.
