Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Floor Console Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the console electrical connectors.
Position the center console to the mounting brackets.

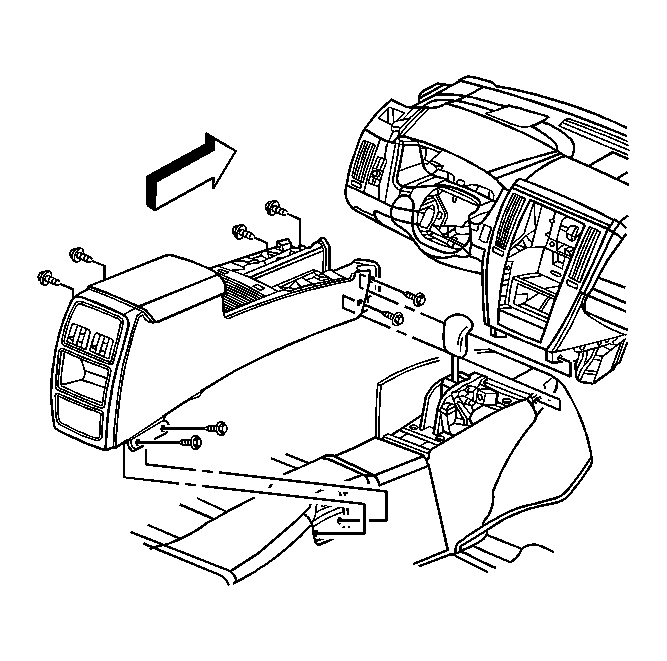

Fig 2: Front Floor Console & Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Move the driver and passenger front seat in order to install the retaining bolts.

CAUTION: Refer to Fastener Caution .

Install the retaining bolts and tighten to 9 N.m (80 lb in).
Ensure the carpet is positioned properly in the vehicle.
Install the upper console trim. Refer to Front Floor Upper Console Trim Plate Replacement .
Install the shiftier bezel. Refer to Console Shift Lever Bezel Replacement .
