Antilock Brake System Schematics

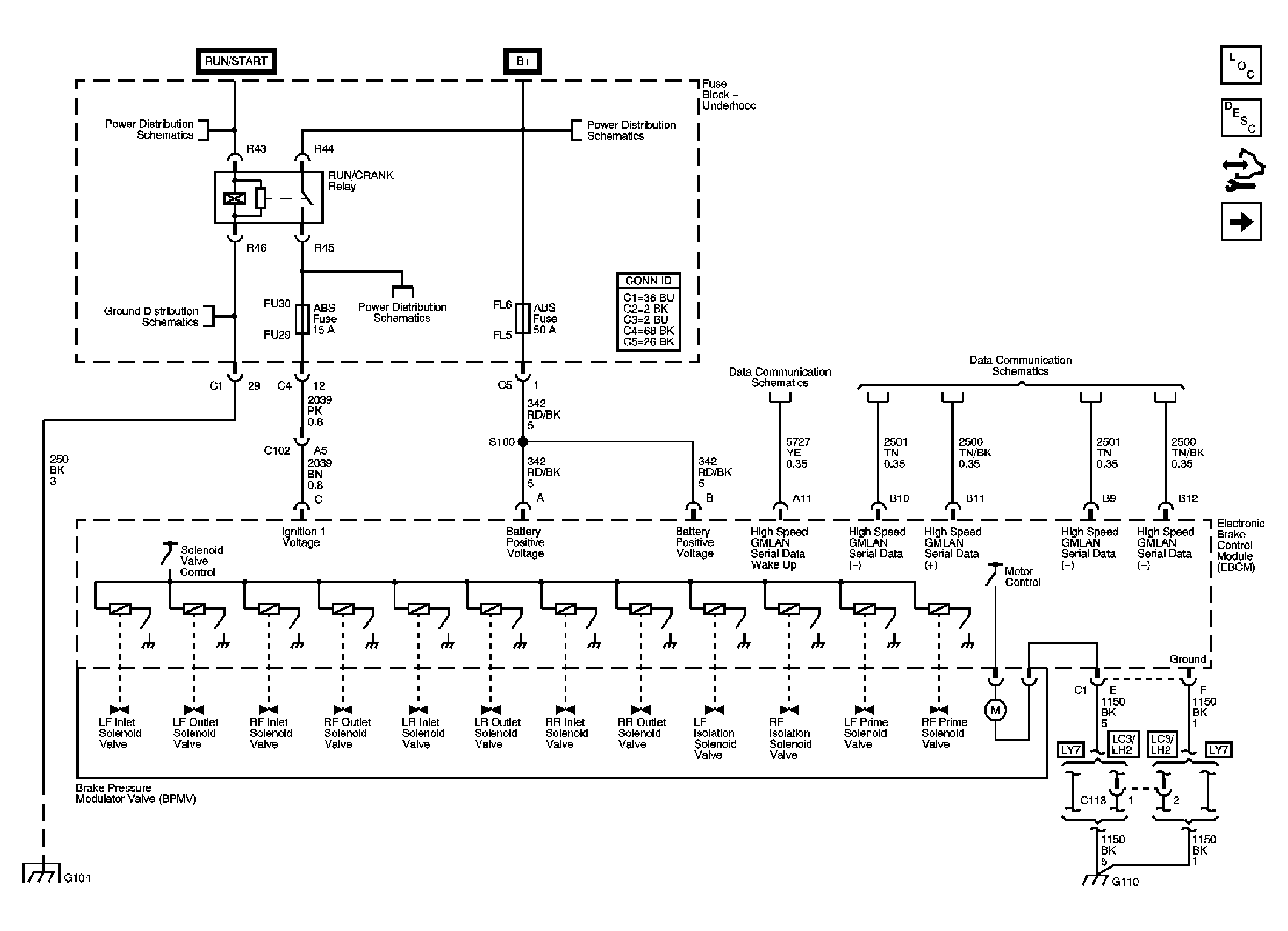

Fig 1: EBCM Module Power, Ground and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

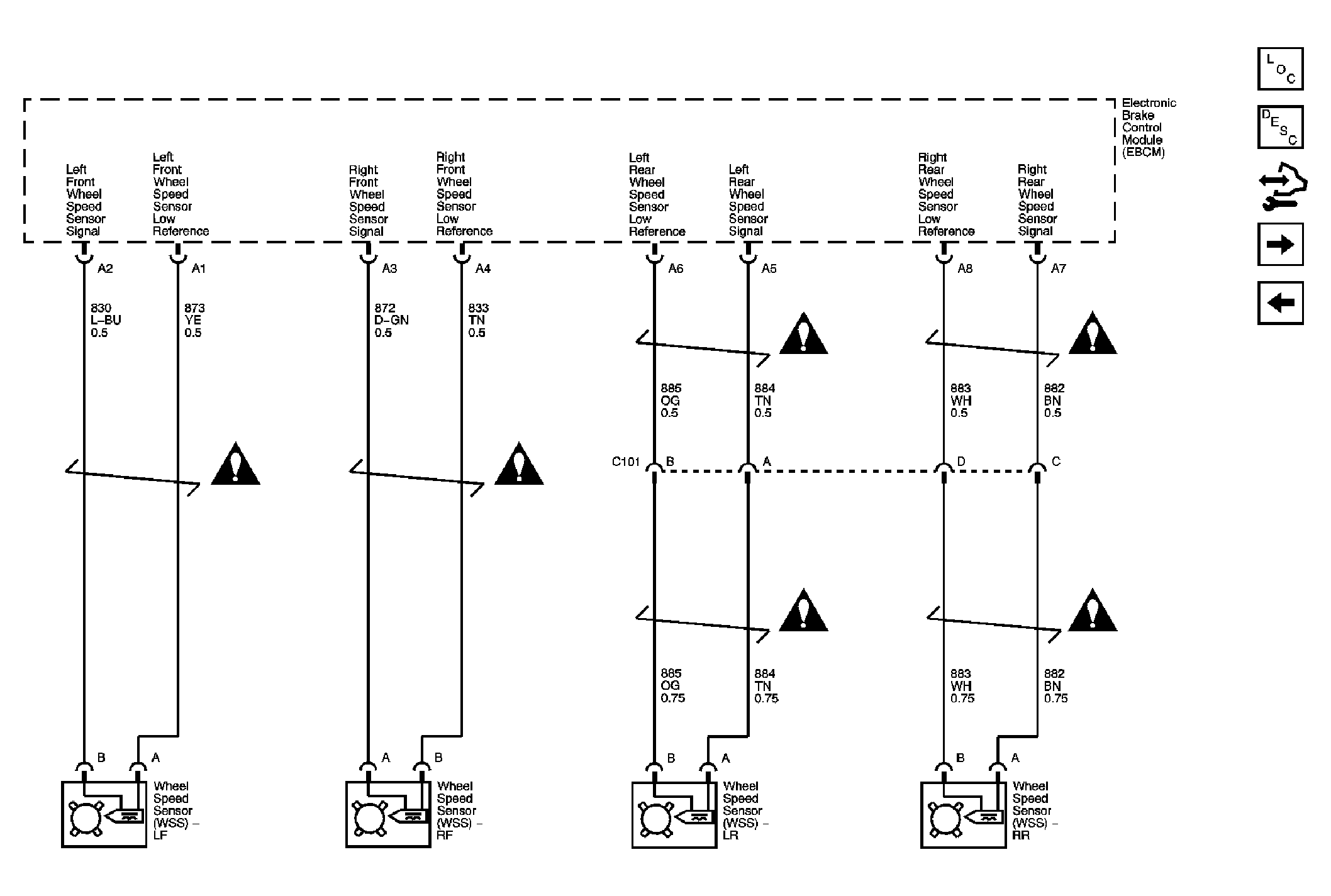

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

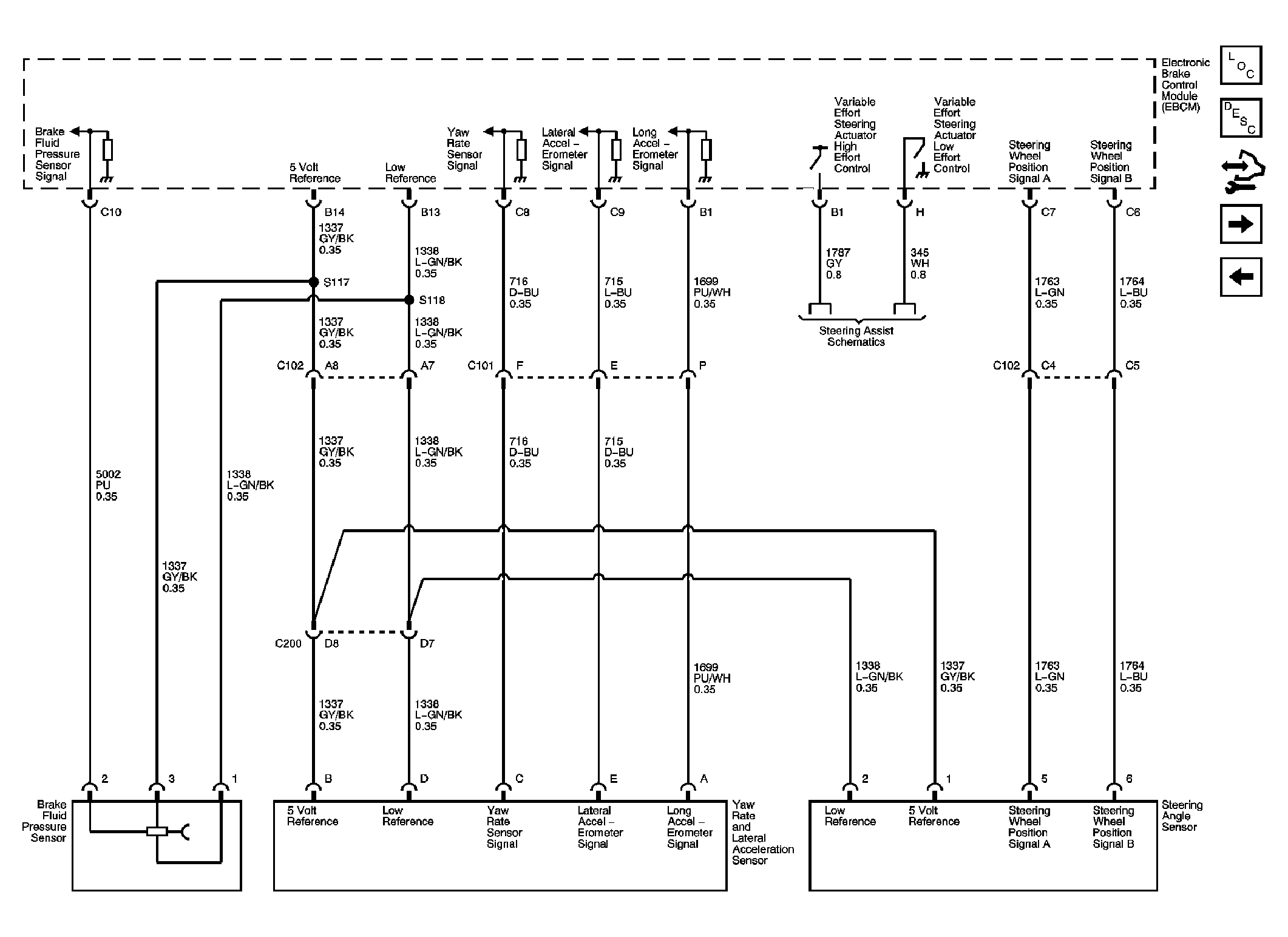

Fig 3: Stability Control System Schematic

Courtesy of GENERAL MOTORS CORP.

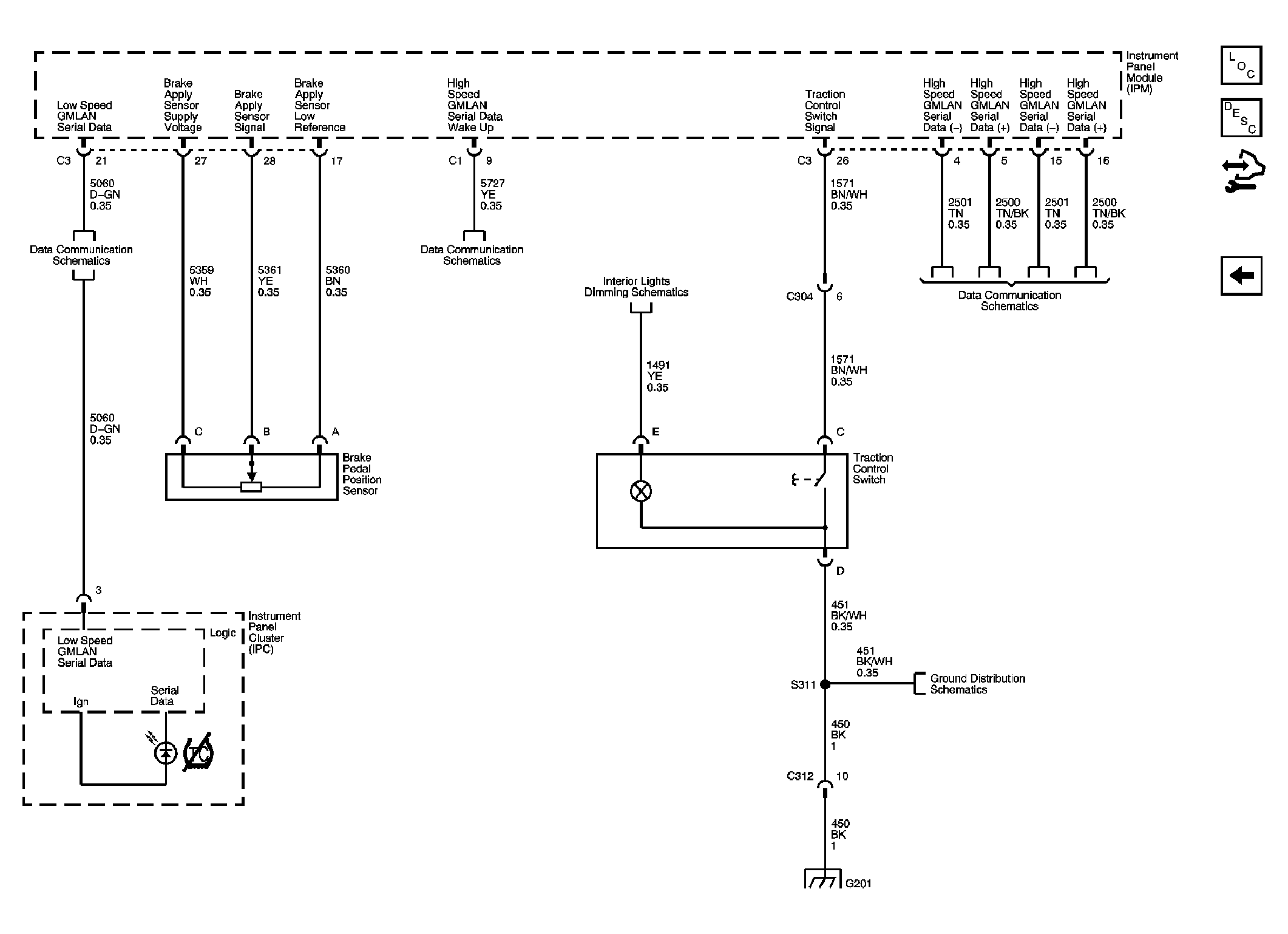

Fig 4: Indicator and Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.
