Moveable Window Schematics

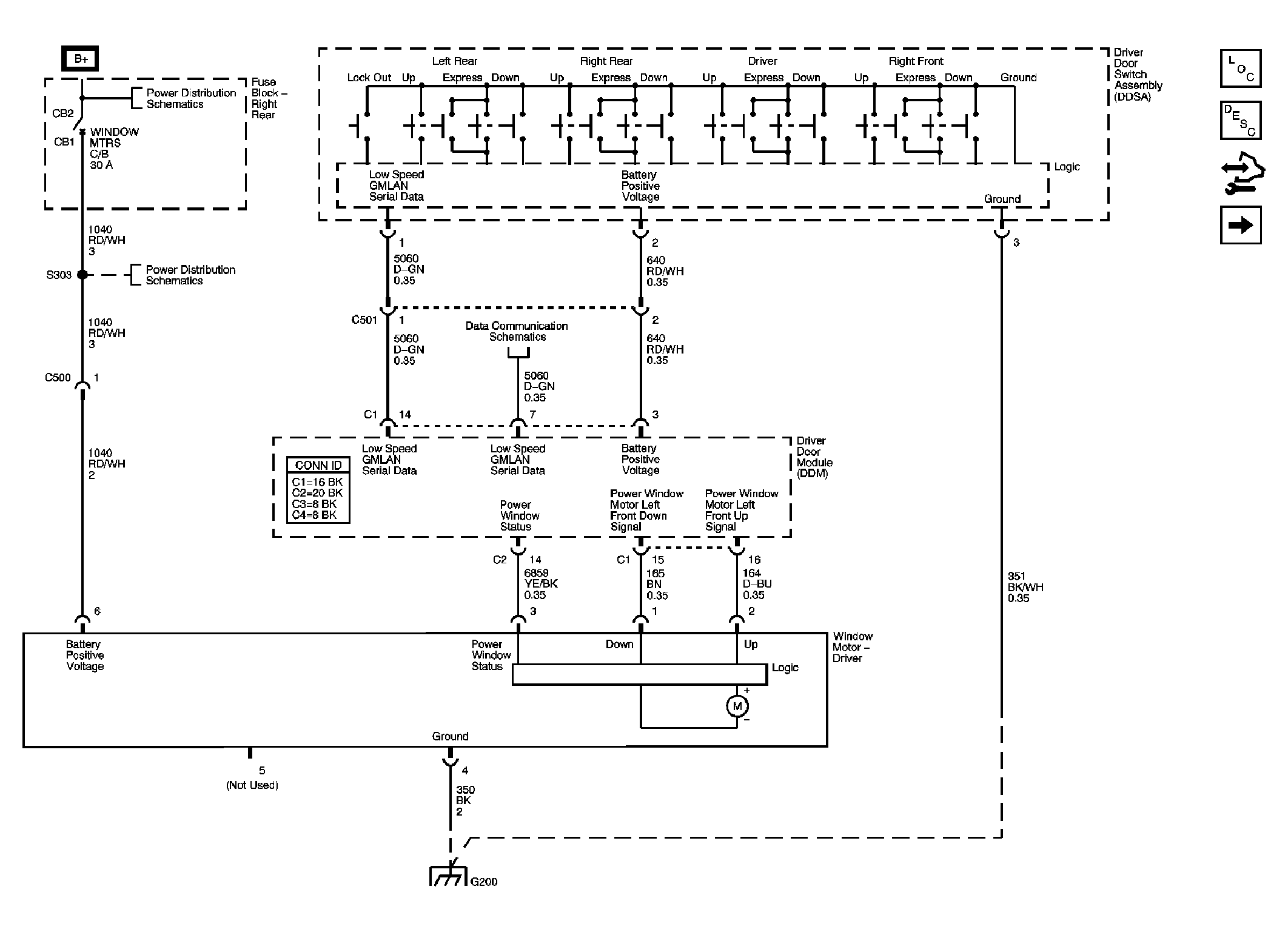

Fig 1: Driver Window Switches, Motor Schematic
GM1822176Courtesy of GENERAL MOTORS CORP.

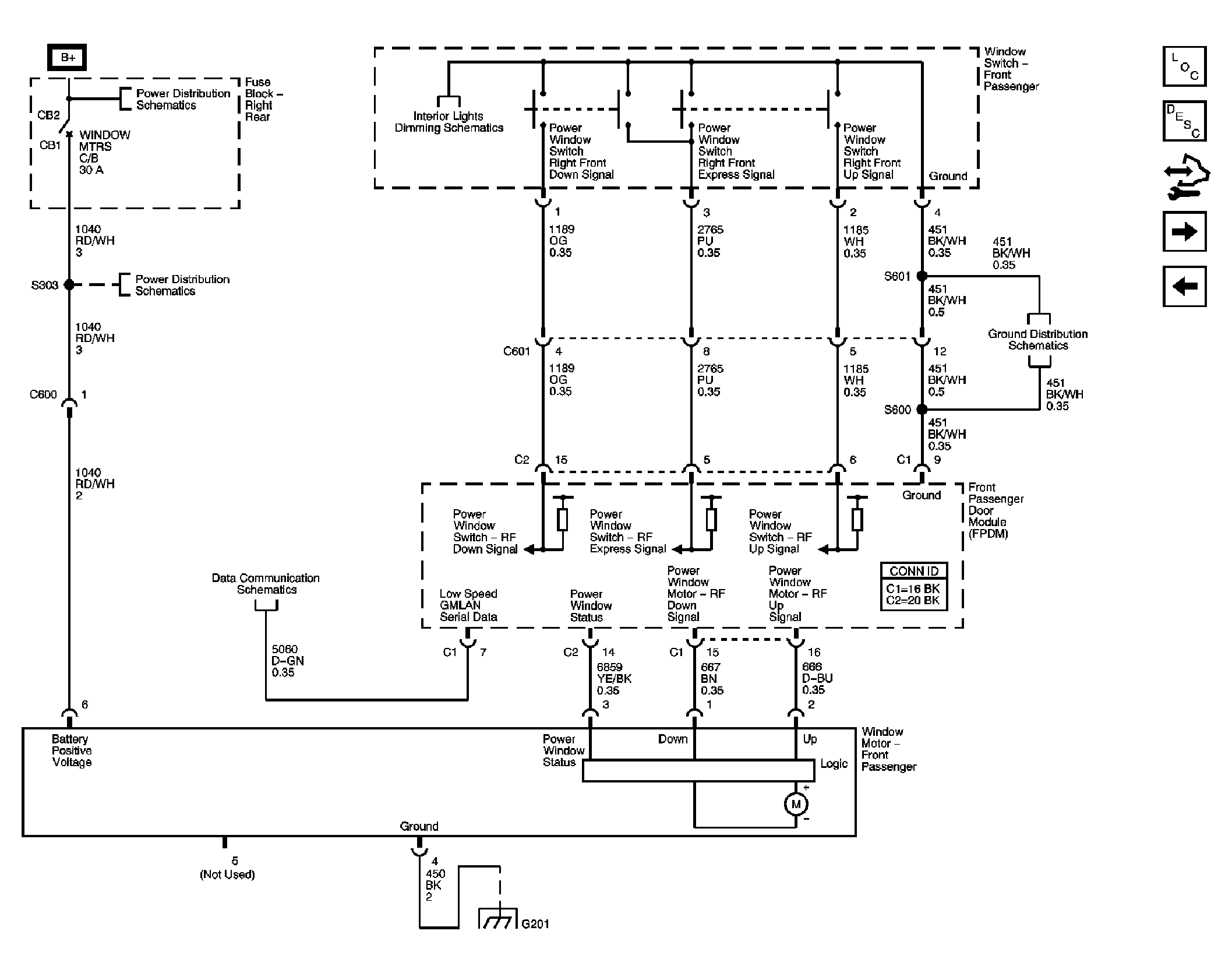

Fig 2: Front Passenger Window Switch, Motor Schematic
GM1822178Courtesy of GENERAL MOTORS CORP.

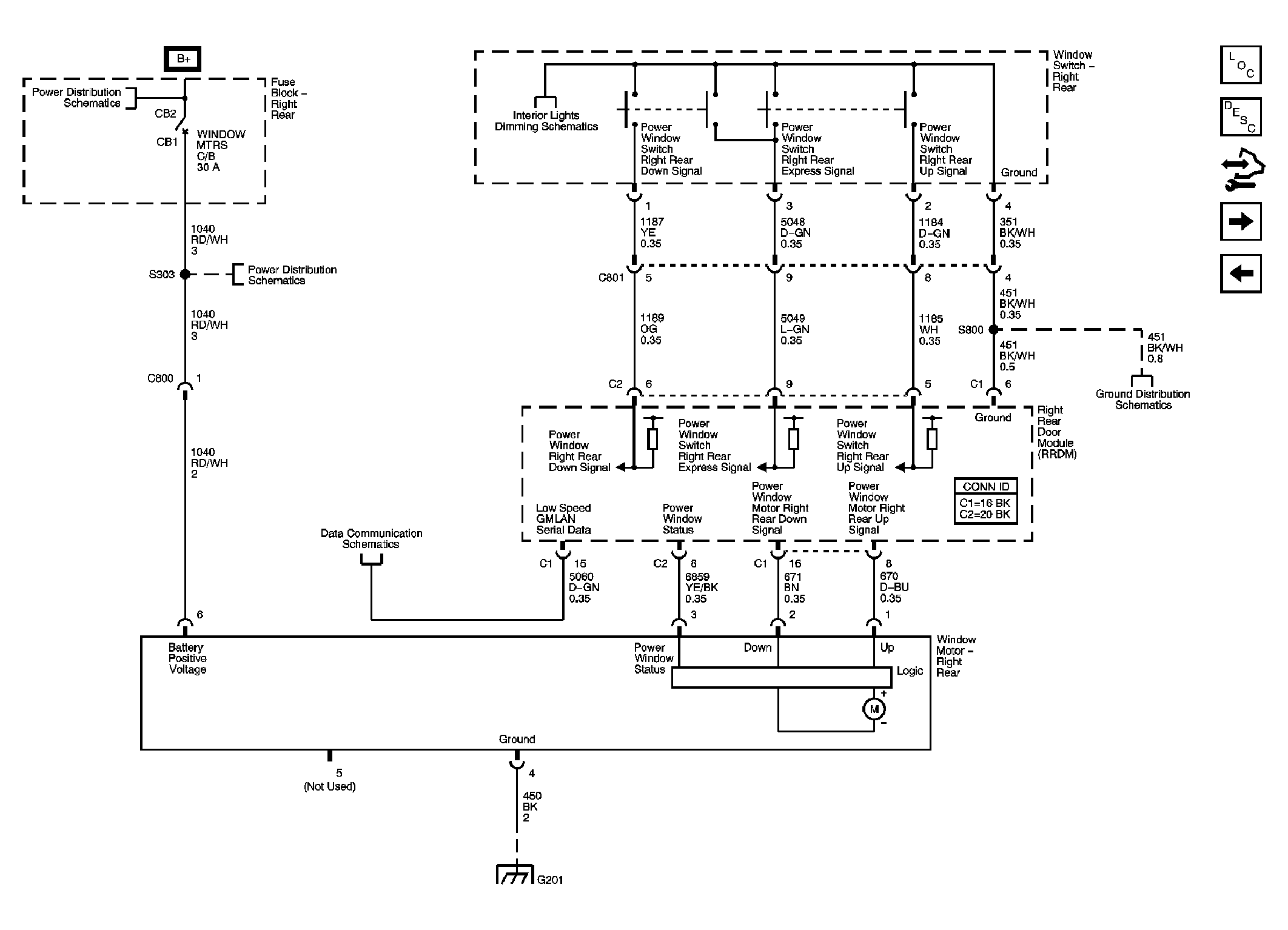

Fig 3: Right Rear Window Switch, Motor Schematic
GM1822180Courtesy of GENERAL MOTORS CORP.

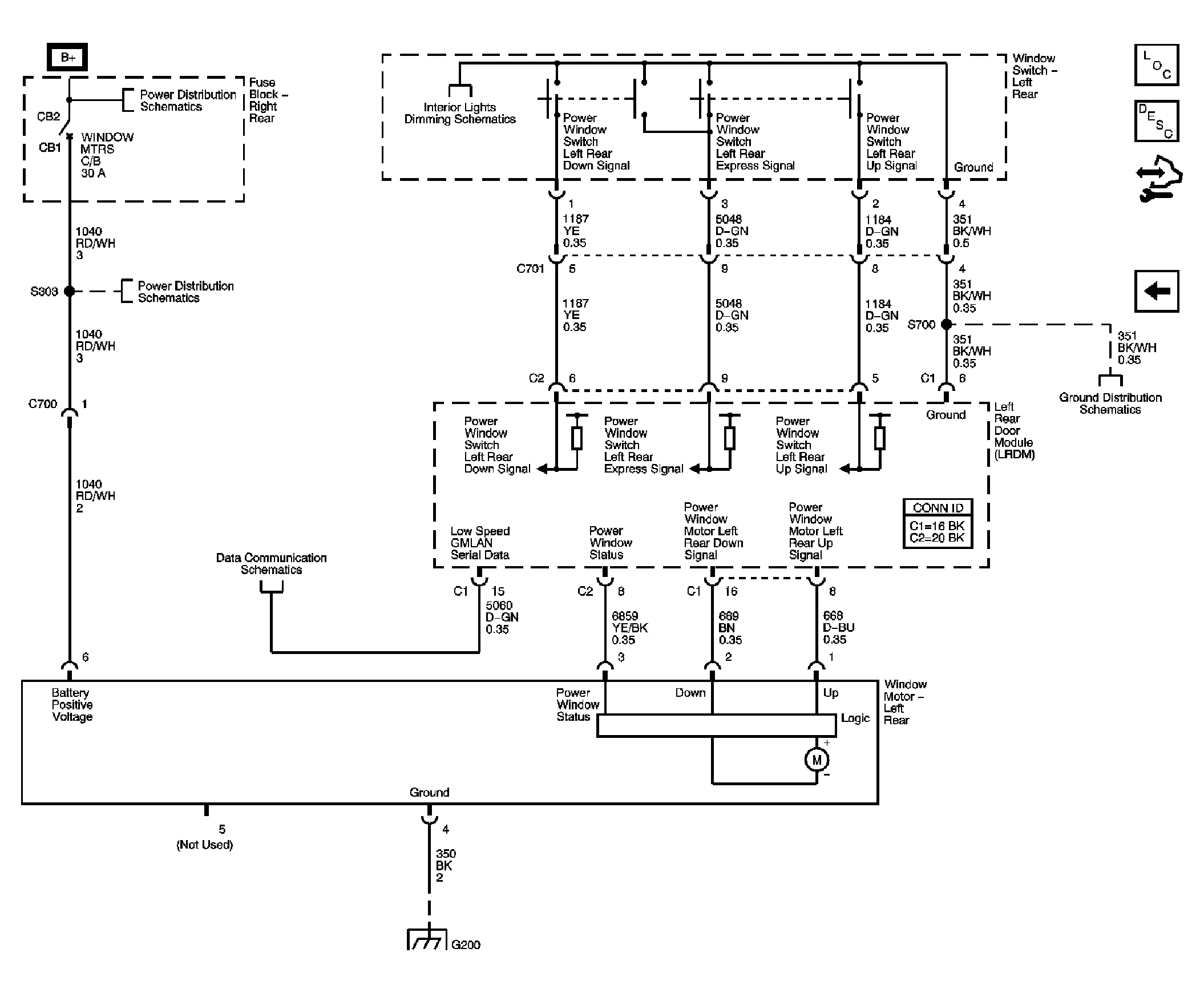

Fig 4: Left Rear Window Switch, Motor Schematic
GM1822182Courtesy of GENERAL MOTORS CORP.
