Traction Control Switch Replacement

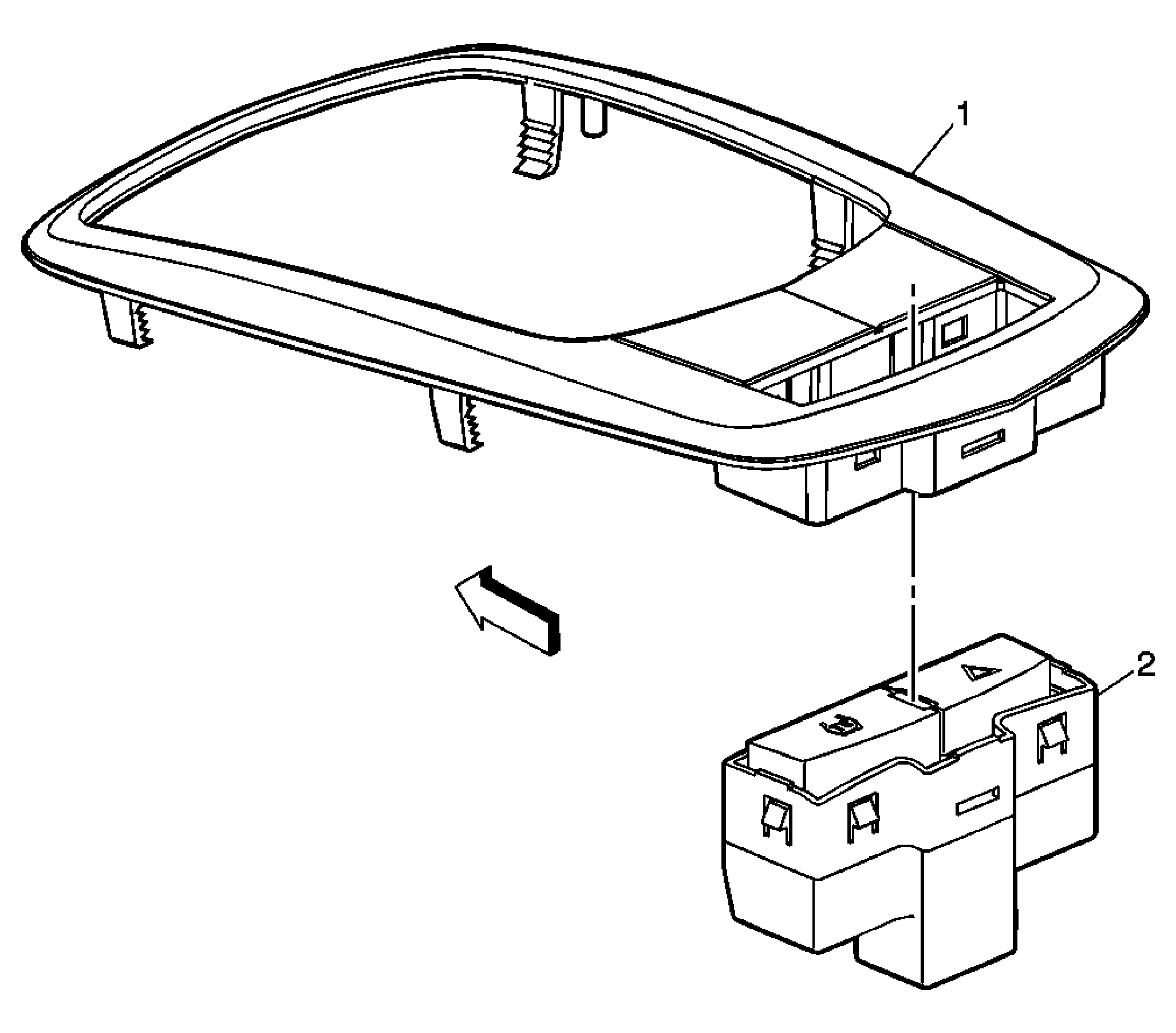

Fig 1: Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Traction Control Switch Replacement

Callout	Component Name
1	Console Shift Lever Bezel Assembly Refer to Console Shift Lever Bezel Replacement .
2	Hazard and Traction Control Switch Assembly Tip:  Disconnect electrical connector.
