Installation Procedure

    Fig 1: View Of Seat Belt Assembly In The Vehicle
    GM1459905Courtesy of GENERAL MOTORS CORP.
  1. Install the bolts securing the seat belt assembly to the vehicle.
  2. Install the center pillar garnish molding. Refer to Center Pillar Garnish Molding Replacement in Interior Trim.

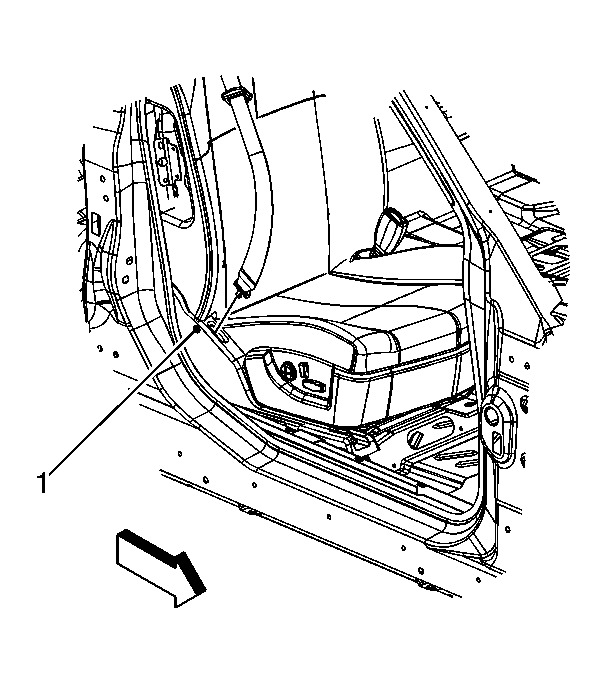

    3. Fig 2: Releasing/Installing The Seat Belt From The Seat
    GM1459907Courtesy of GENERAL MOTORS CORP.
  3. Reinstall the seat belt to the seat.
