Installation Procedure

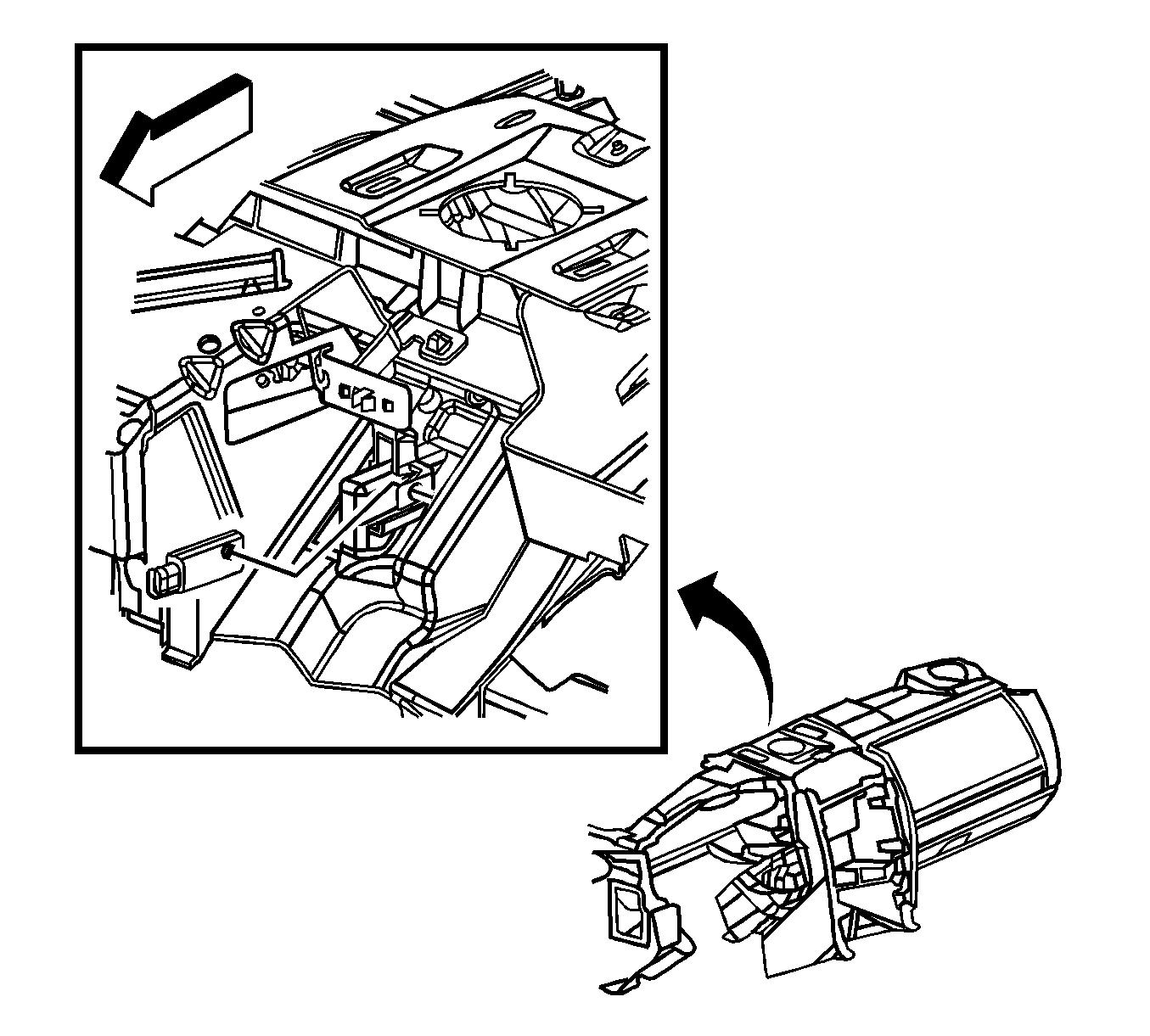

Fig 1: View Of Antenna Wire Harness, Retaining Bracket & Lead Connector

GM1231039

Courtesy of GENERAL MOTORS CORP.

Position the antenna to the I/P carrier.
Connect the wire harness lead to the antenna.
Push on the antenna to install the antenna to the retaining bracket.
Install the trim bezel to the I/P compartment. Refer to Instrument Panel Compartment Trim Bezel Replacement .
Close the I/P compartment door.
