Remote Function Schematics

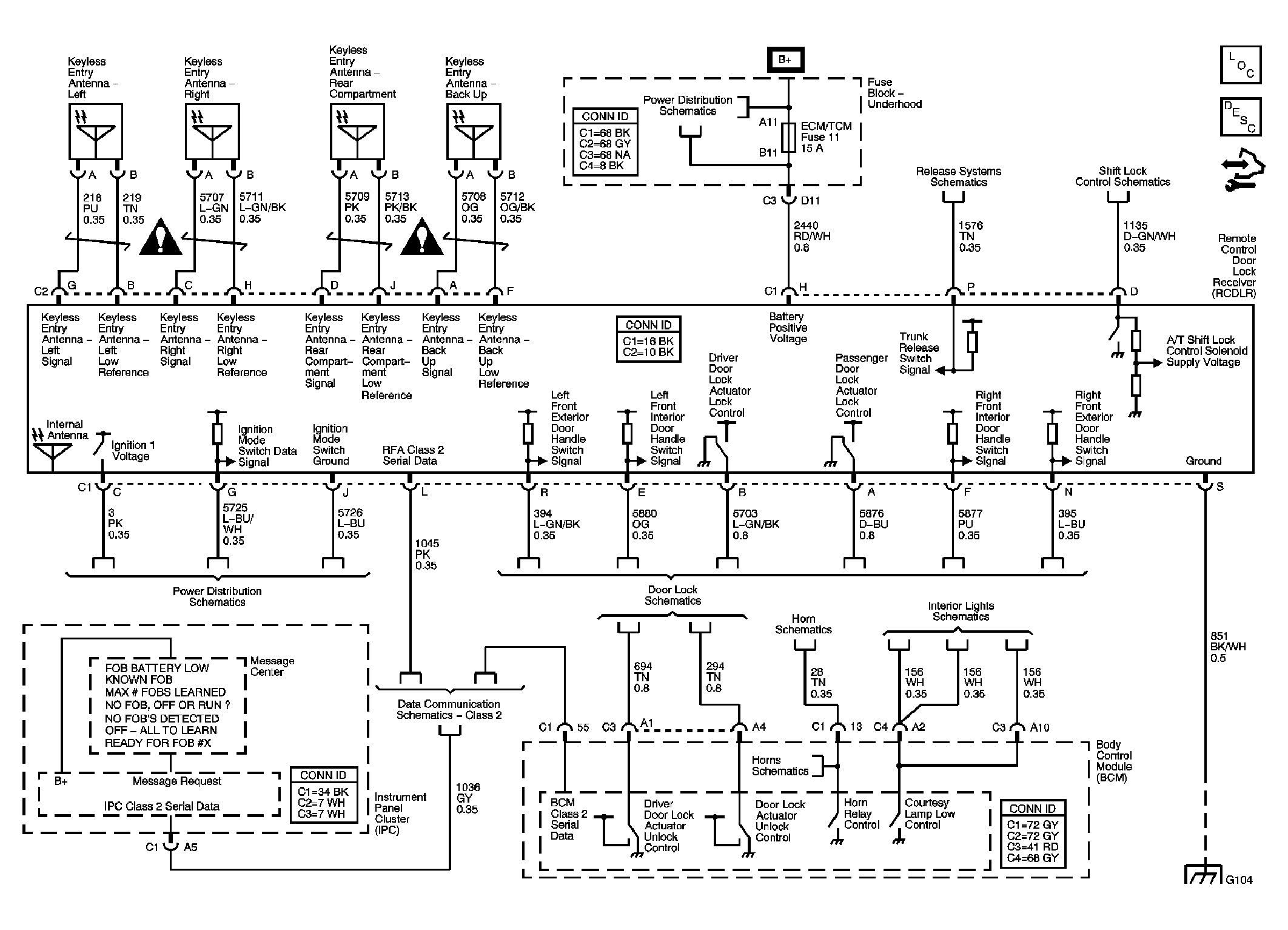

Fig 1: Keyless Entry Schematic
GM1757390Courtesy of GENERAL MOTORS CORP.

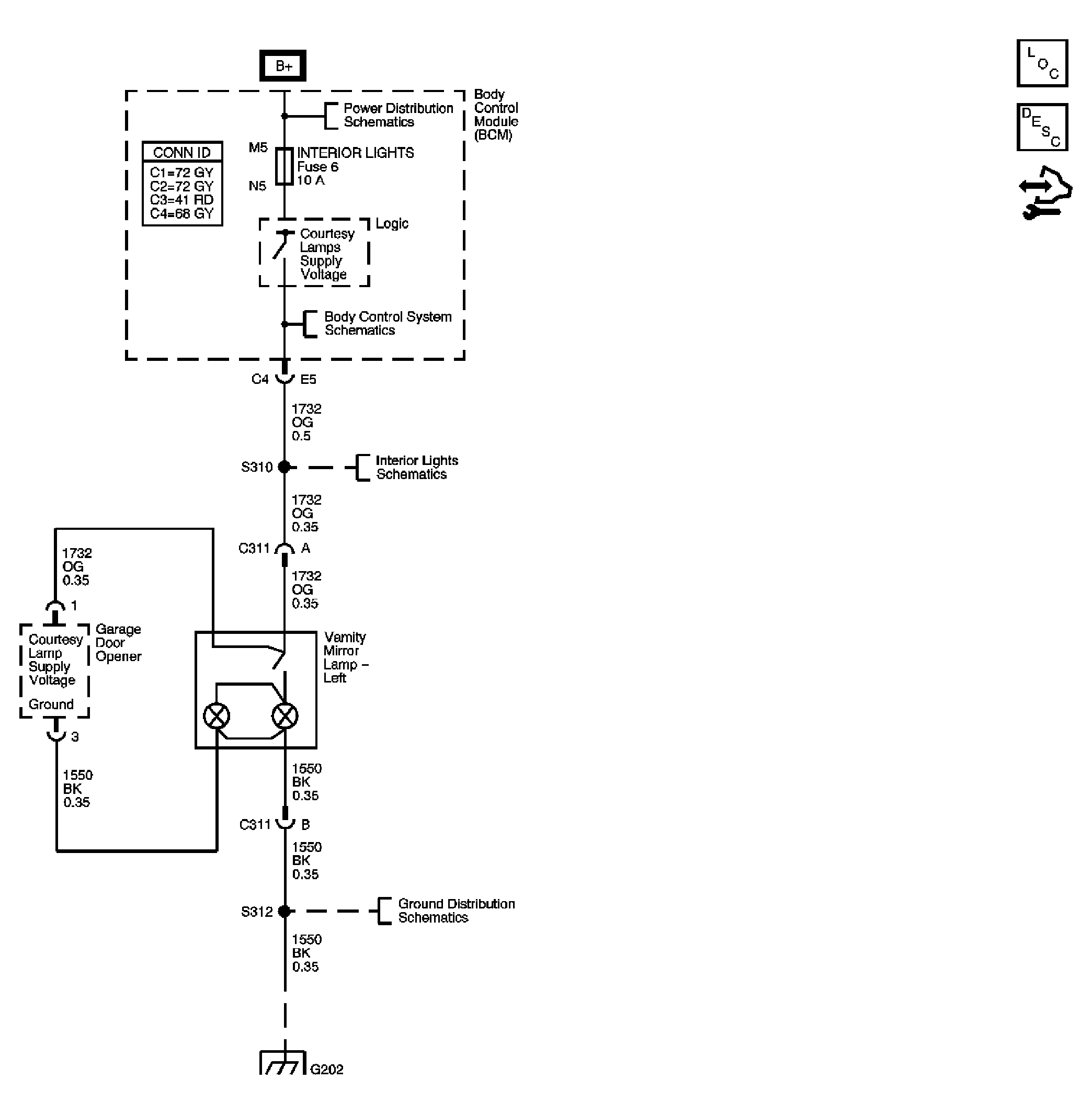

Fig 2: Garage Door Opener Schematic
GM1757394Courtesy of GENERAL MOTORS CORP.
