Door Control Module Schematics

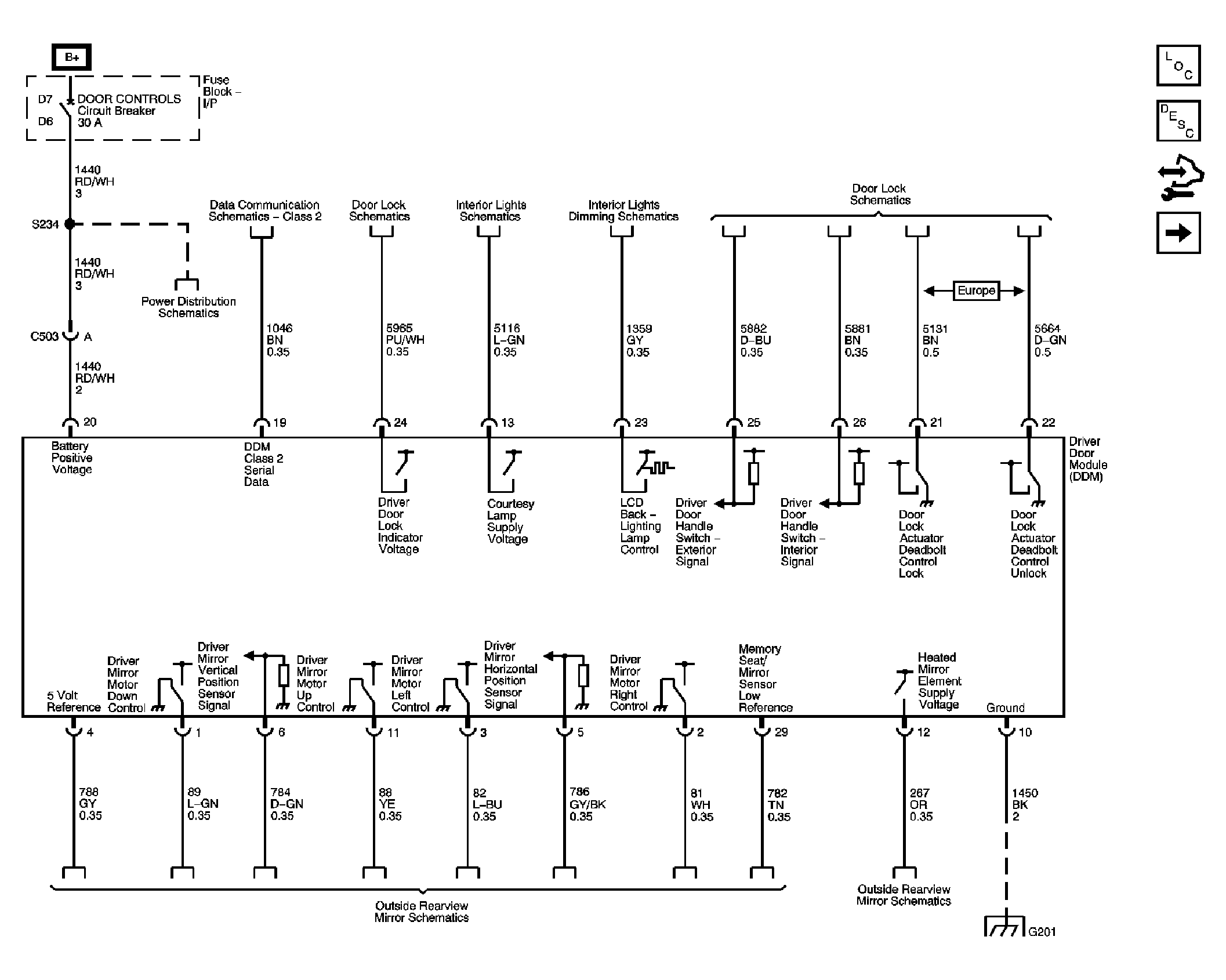

Fig 1: DriverDoor Control Module Schematic

GM1757050

Courtesy of GENERAL MOTORS CORP.

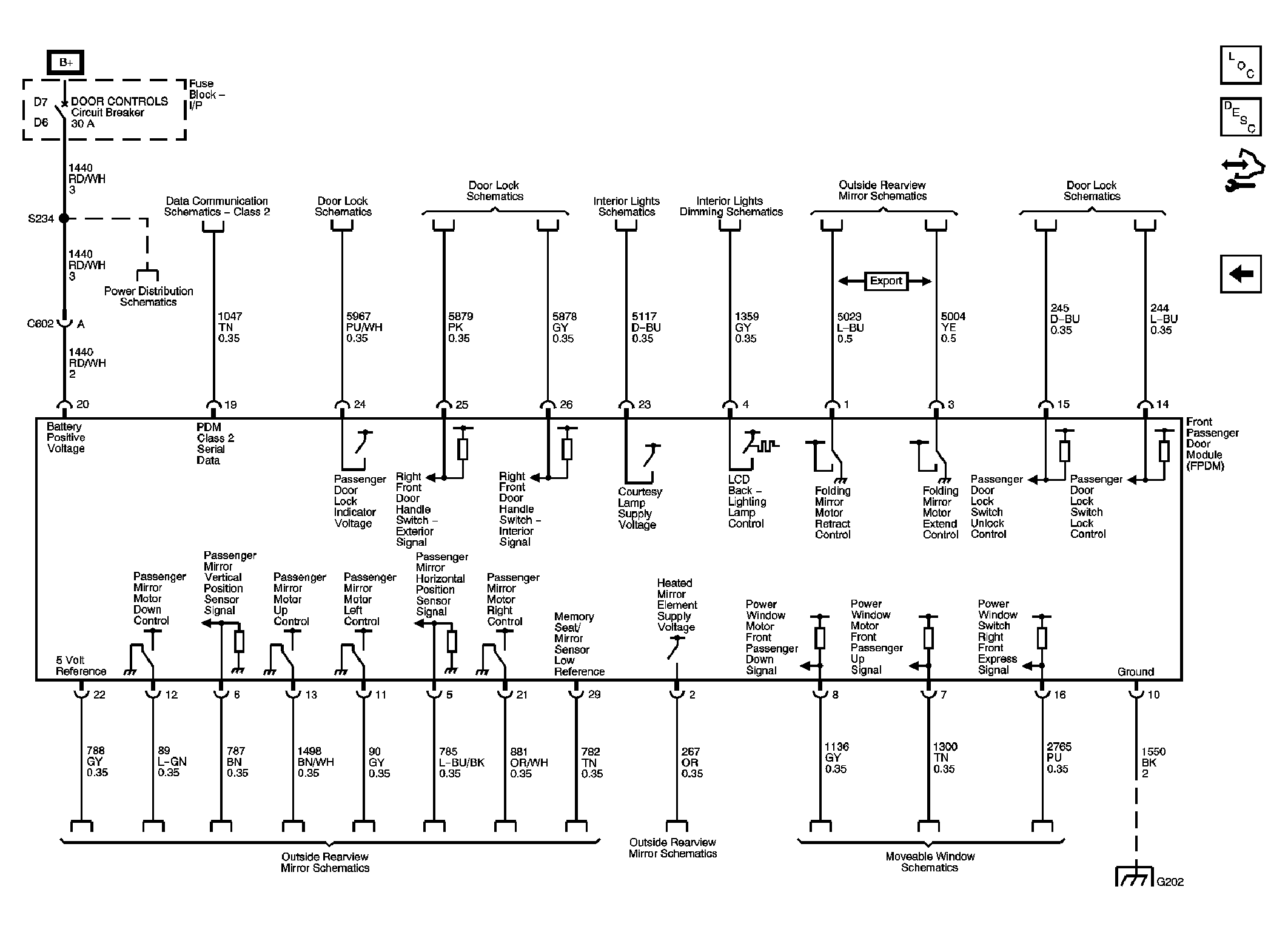

Fig 2: PassengerDoor Control Module Schematic

GM1757051

Courtesy of GENERAL MOTORS CORP.
