Antilock Brake System Schematics

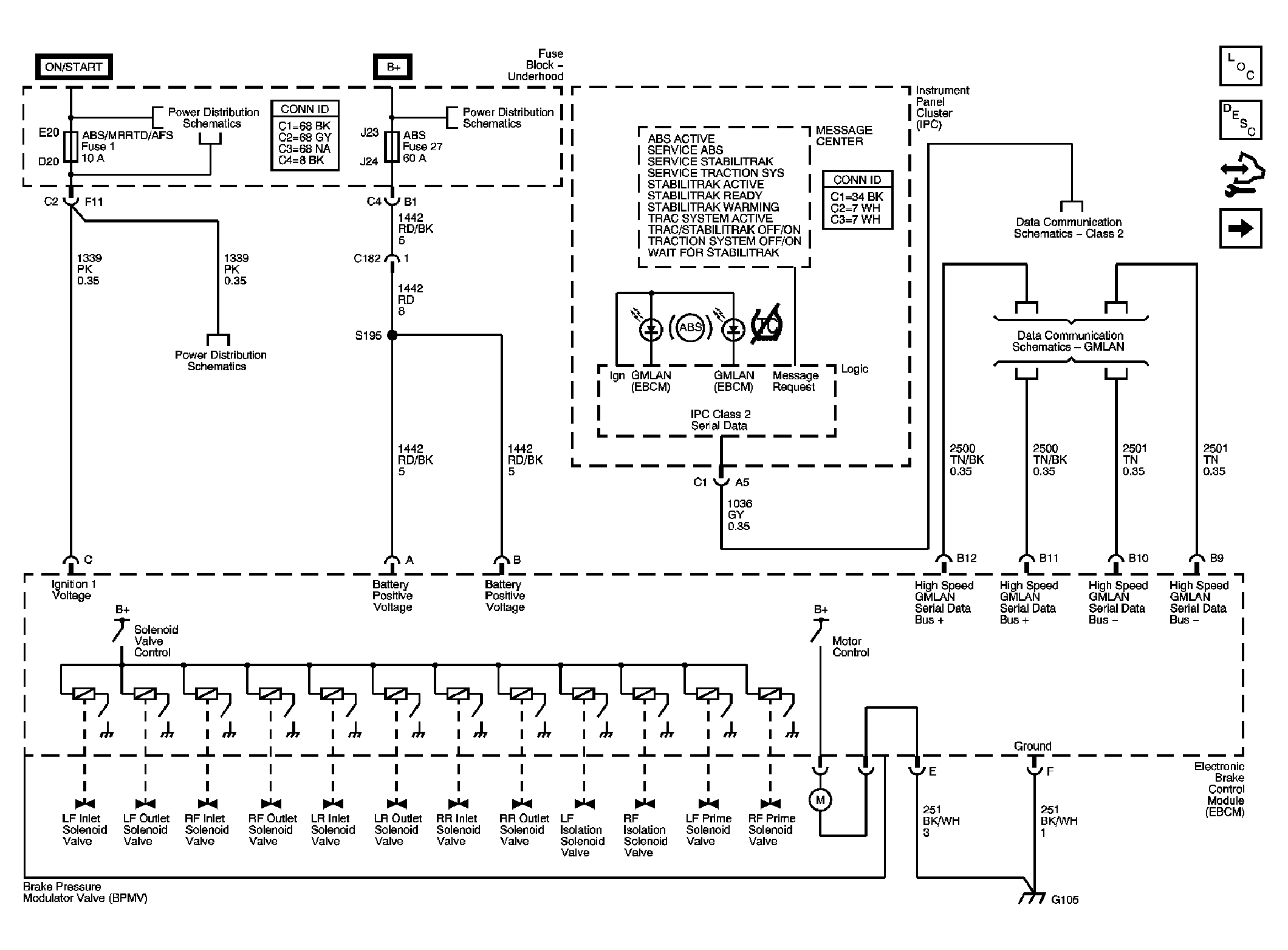

Fig 1: Power, Ground, Indicators & Brake Pressure Modulator Valve Schematic

Courtesy of GENERAL MOTORS CORP.

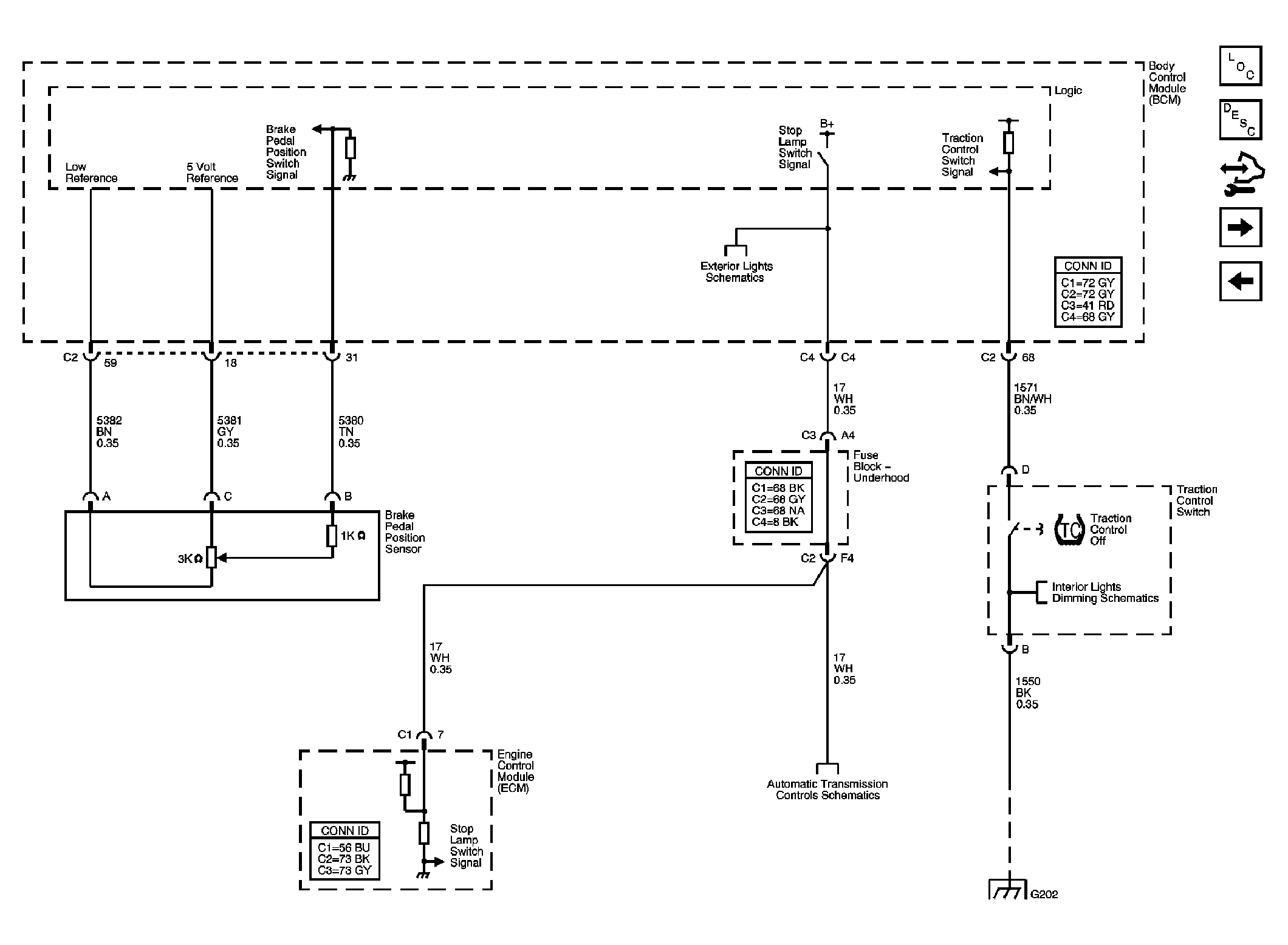

Fig 2: Brake Pedal Signal & Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Stability Control Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

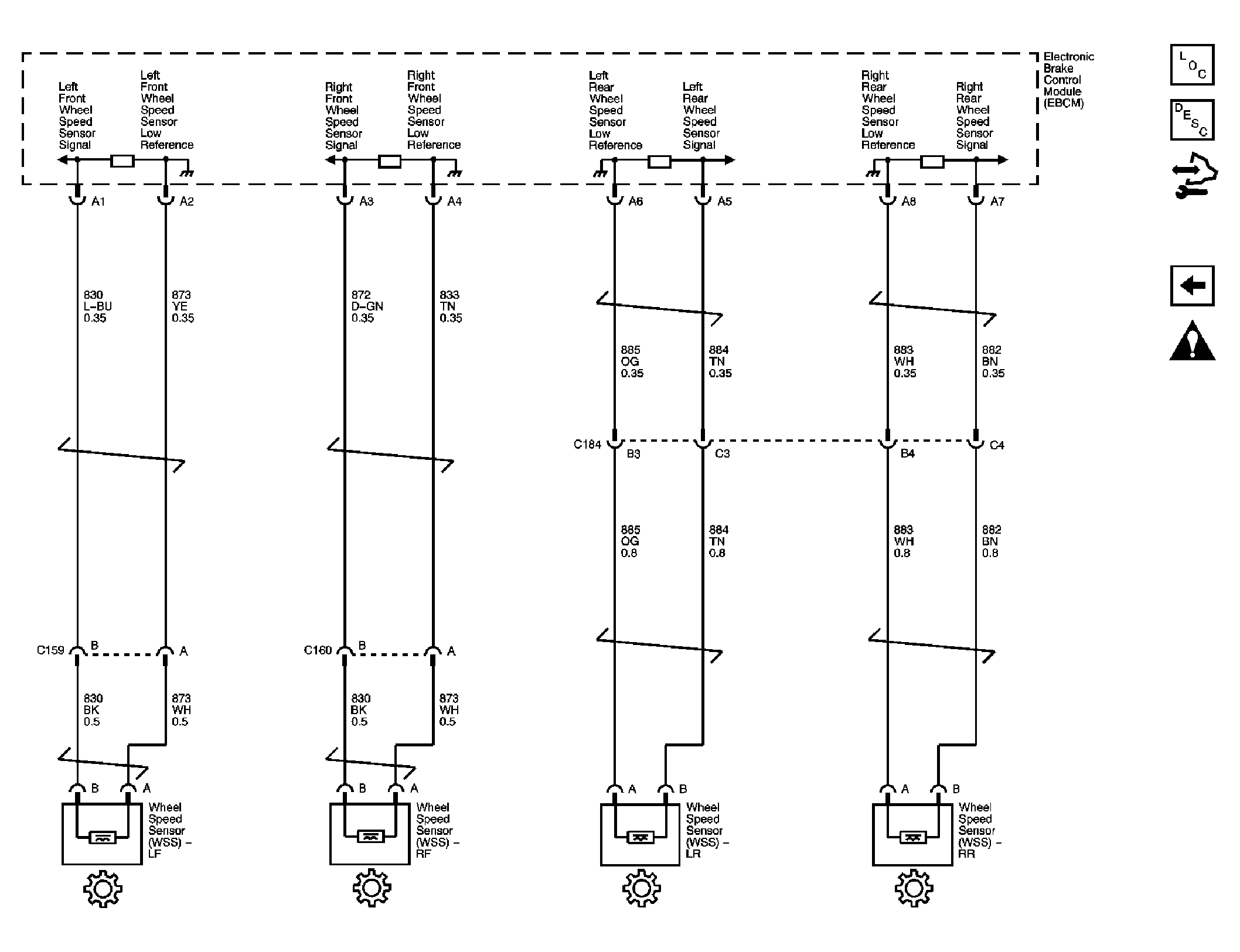

Fig 4: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
