Installation Procedure

  1. Connect the IPC electrical connector.
  2. Position the IPC to the steering column bracket.

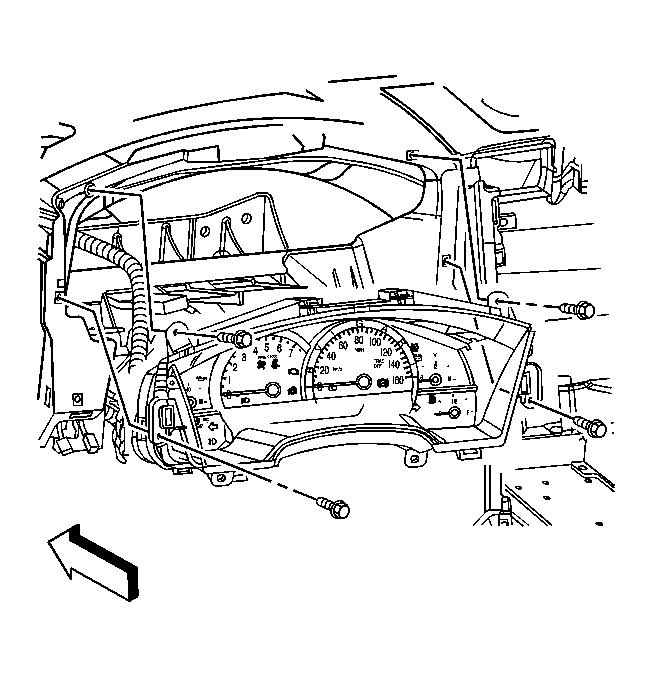

    3. Fig 1: View Of IPC & Screws
    GM1224708Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the screws which retain the IPC to the steering column bracket.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

  4. Connect the HUD electrical connector to the IPC.
  5. Install the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement .
  6. Connect the negative battery cable.

    Tighten:  Tighten the bolt to 15 N.m (11 lb ft).

  7. Refer to Control Module References for programming and setup information.
