Front Fog Lamp Bracket Replacement (Base)
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

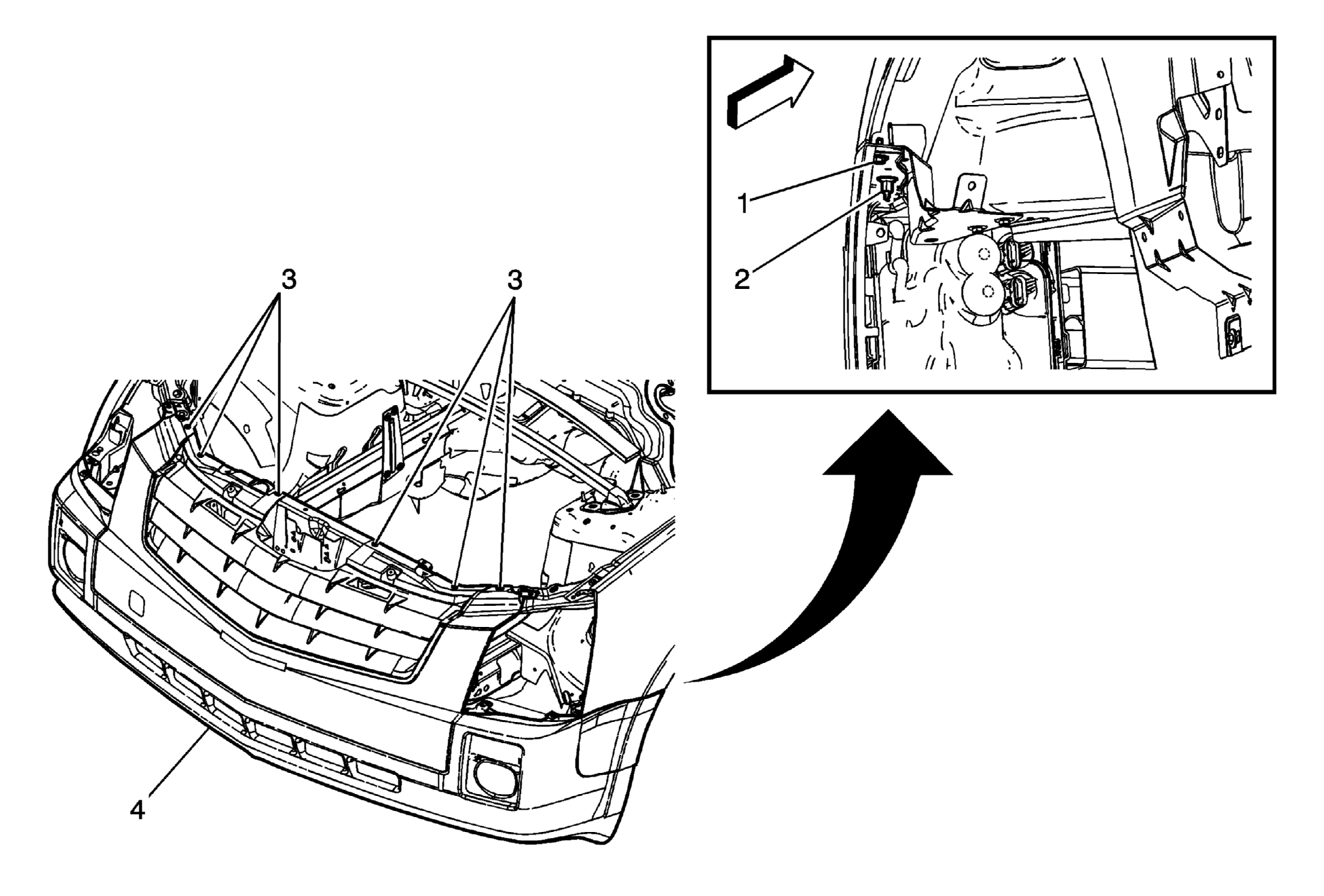

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front headlamps. Refer to Headlamp Replacement . |
|
| 1 | Fog Lamp Bracket Plastic Retainers (Qty: 2) |
| 2 | Fog Lamp Bracket Screw (Qty: 1)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Fog Lamp Bracket Screws (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 4 | Fog Lamp Bracket |
