Hazard Warning Switch Replacement (Left Hand Drive)

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

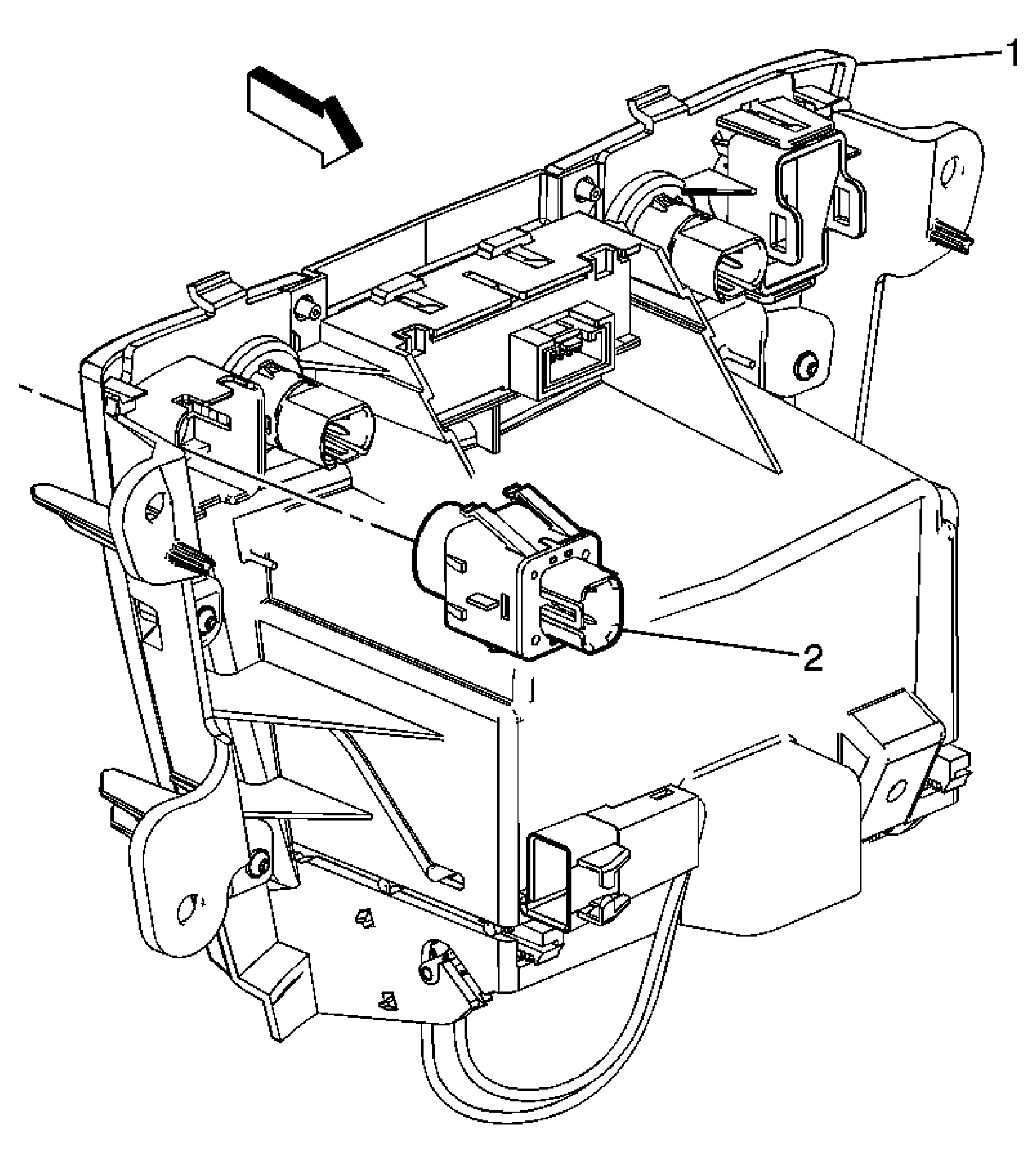

Fig 1: Identifying Hazard Warning Switch (LHD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Ashtray Assembly Refer to Ashtray Replacement (Left Hand Drive) or Ashtray Replacement (Right Hand Drive) .
2	Hazard Warning Switch Assembly Procedure Disconnect electrical connector. Use a flat-bladed tool to pry switch from ashtray assembly.

Callout

Component Name

Instrument Panel Ashtray Assembly
Refer to Ashtray Replacement (Left Hand Drive) or Ashtray Replacement (Right Hand Drive) .

Hazard Warning Switch Assembly

Procedure

Disconnect electrical connector.
Use a flat-bladed tool to pry switch from ashtray assembly.
