Repeater Lamp Replacement
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

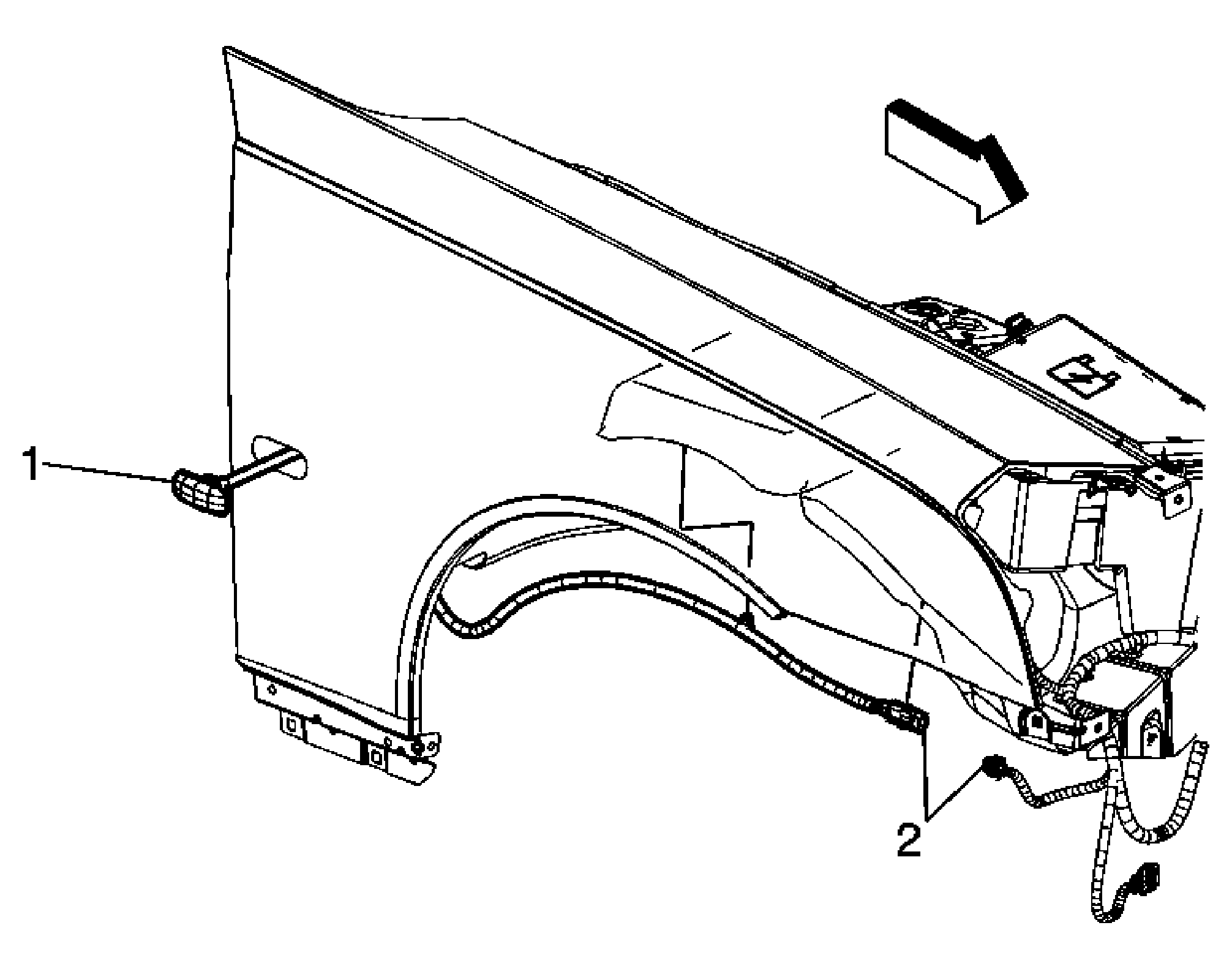

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the right front or left front wheelhouse liner. Refer to Wheelhouse Panel Replacement - Right Side or Wheelhouse Panel Replacement - Left Side . |
|
| 1 | Front Side Turn Signal Lamp Assembly Procedure: Install the locator tab on the lamp towards the rear of the fender flange. |
| 2 | Front Side Turn Signal Lamp Harness Connector |
