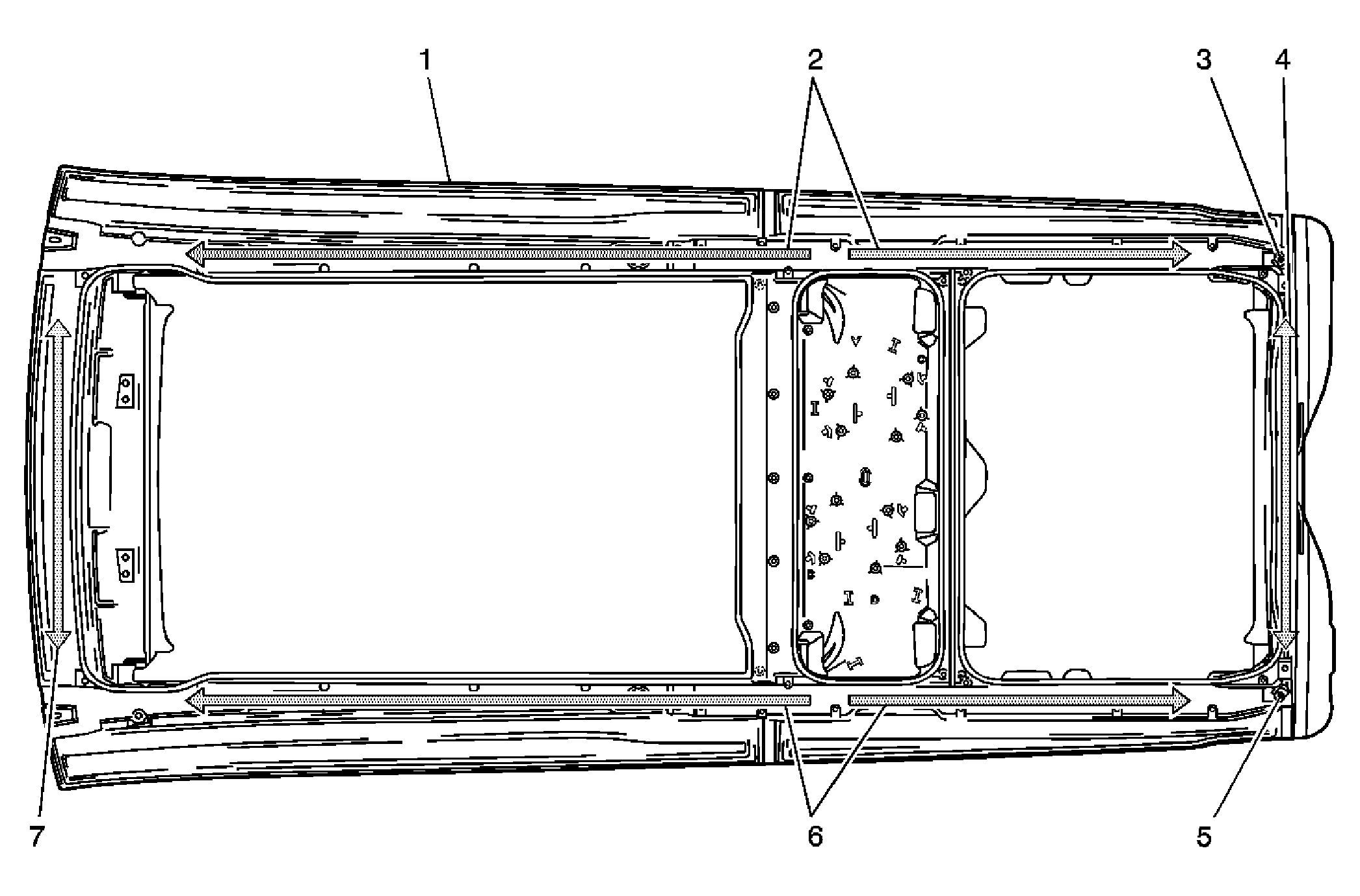

Sunroof Water Management System Identification
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Module |
| 2 |
Water Channel - Right |
| 3 |
Drain - Right Rear |
| 4 |
Water Channel - Rear |
| 5 |
Drain - Left Rear |
| 6 |
Water Channel - Left |
| 7 |
Water Channel - Front |
