Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

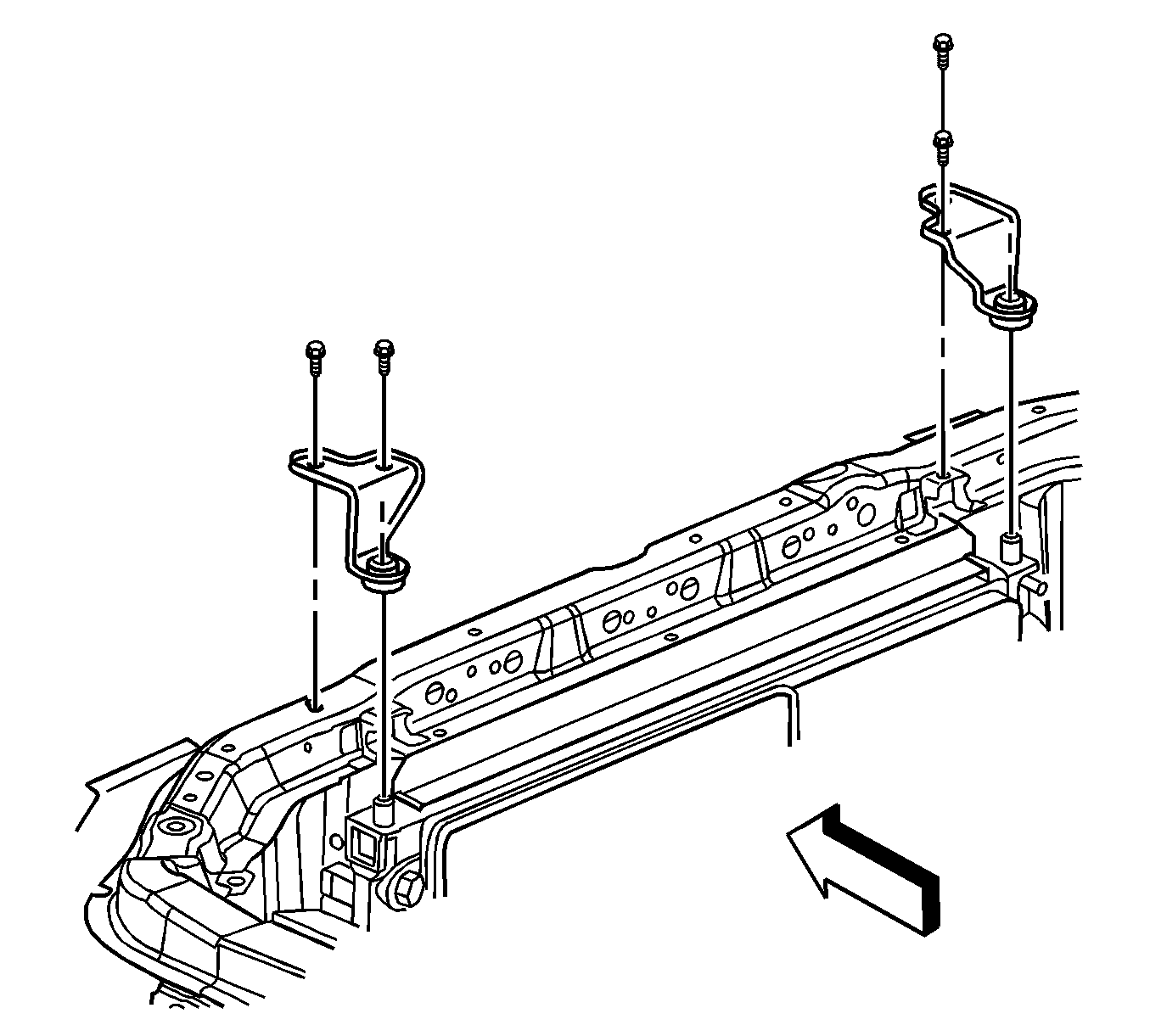

Fig 1: View Of Radiator Support Brackets

Courtesy of GENERAL MOTORS CORP.

Install the radiator support brackets.

NOTE: Refer to FASTENER NOTICE .

Install the radiator support bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
