Power Moding Schematics

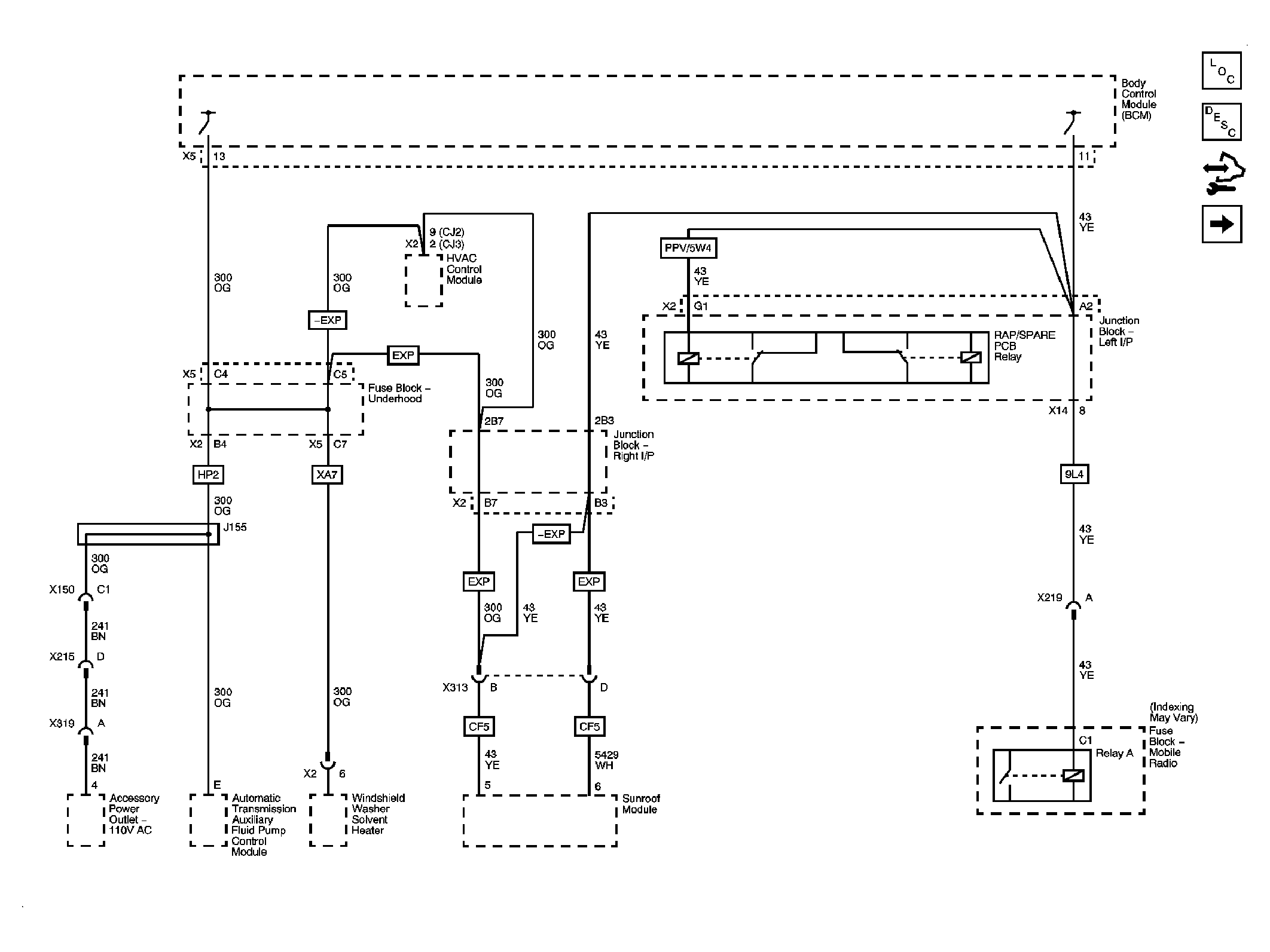

Fig 1: Ignition 3 & Accessory Voltage Schematic
GM1907504Courtesy of GENERAL MOTORS CORP.

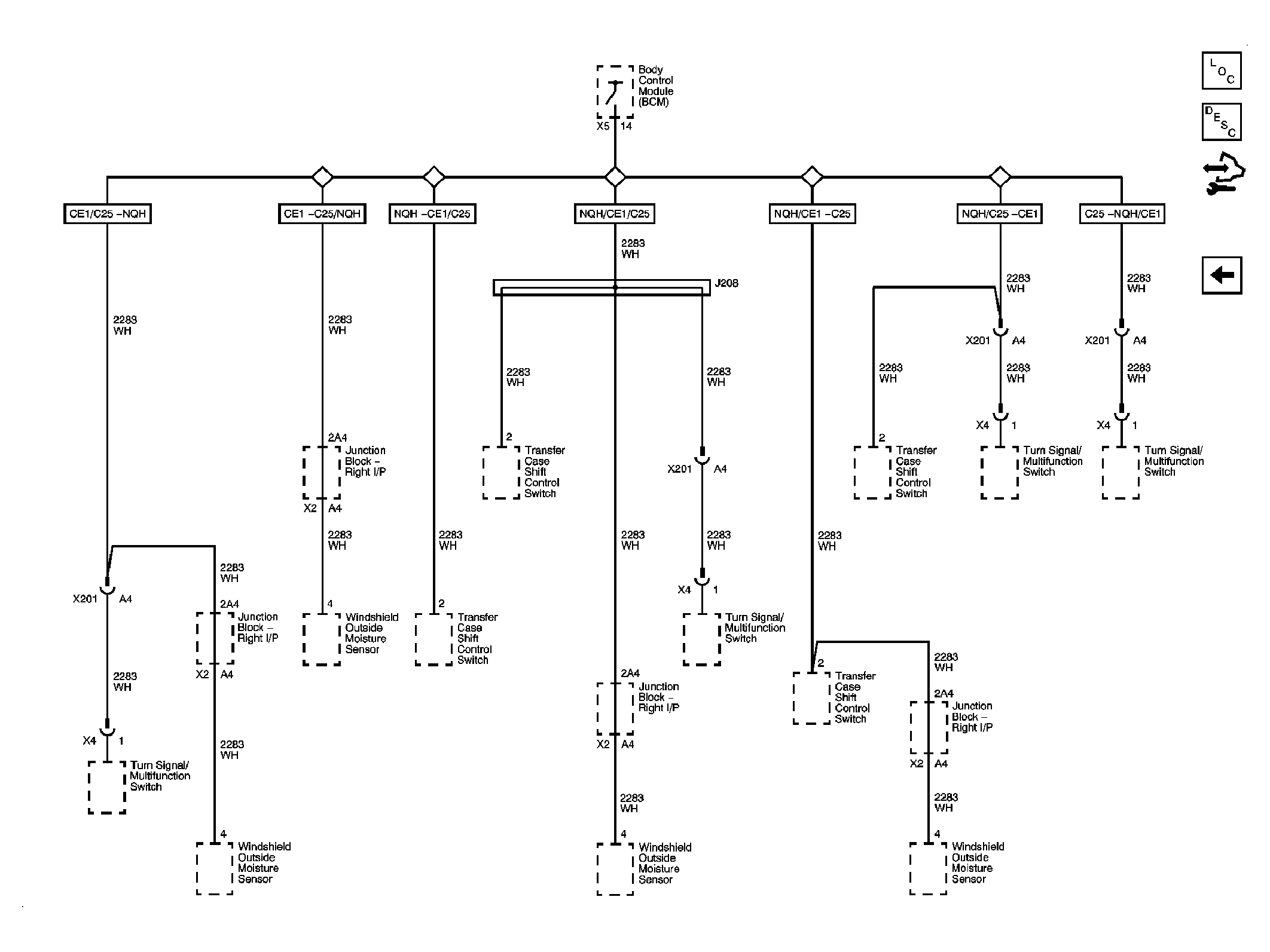

Fig 2: Ignition 1 Voltage Schematic
GM1907511Courtesy of GENERAL MOTORS CORP.
