Resonator Replacement (LFA)

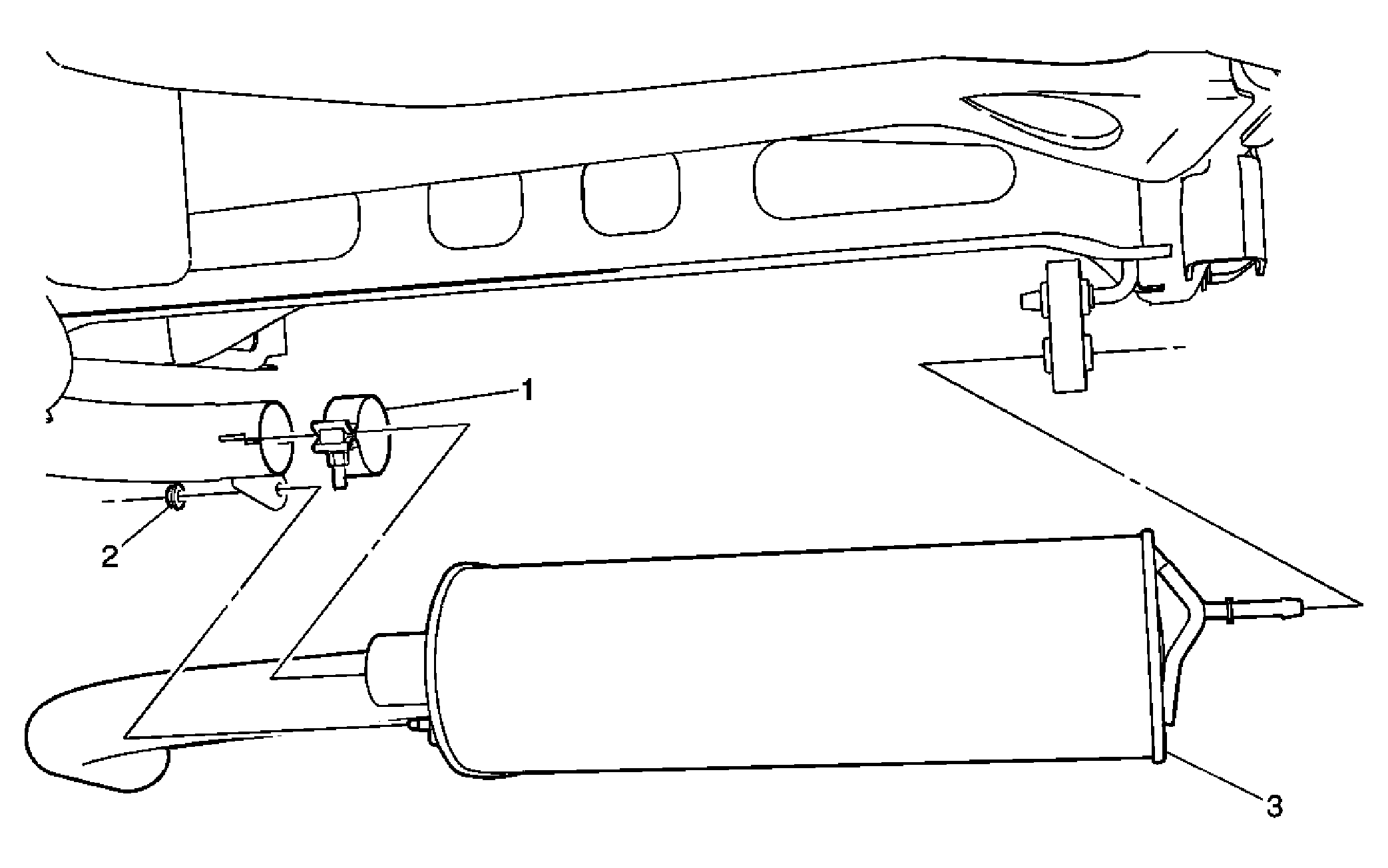

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Clamp
NOTE:
Refer to Fastener Notice
.
Tighten: 55 N.m (40 lb ft) |
| 2 | Nut Tighten: 5 N.m (44 lb in) |
| 3 | Exhaust Resonator Procedure: Disengage the resonator from the insulators. |
