Steering
›
Power Steering System
›
Schematic & Routing Diagrams
›
Power Steering Schematics
Power Steering Schematics

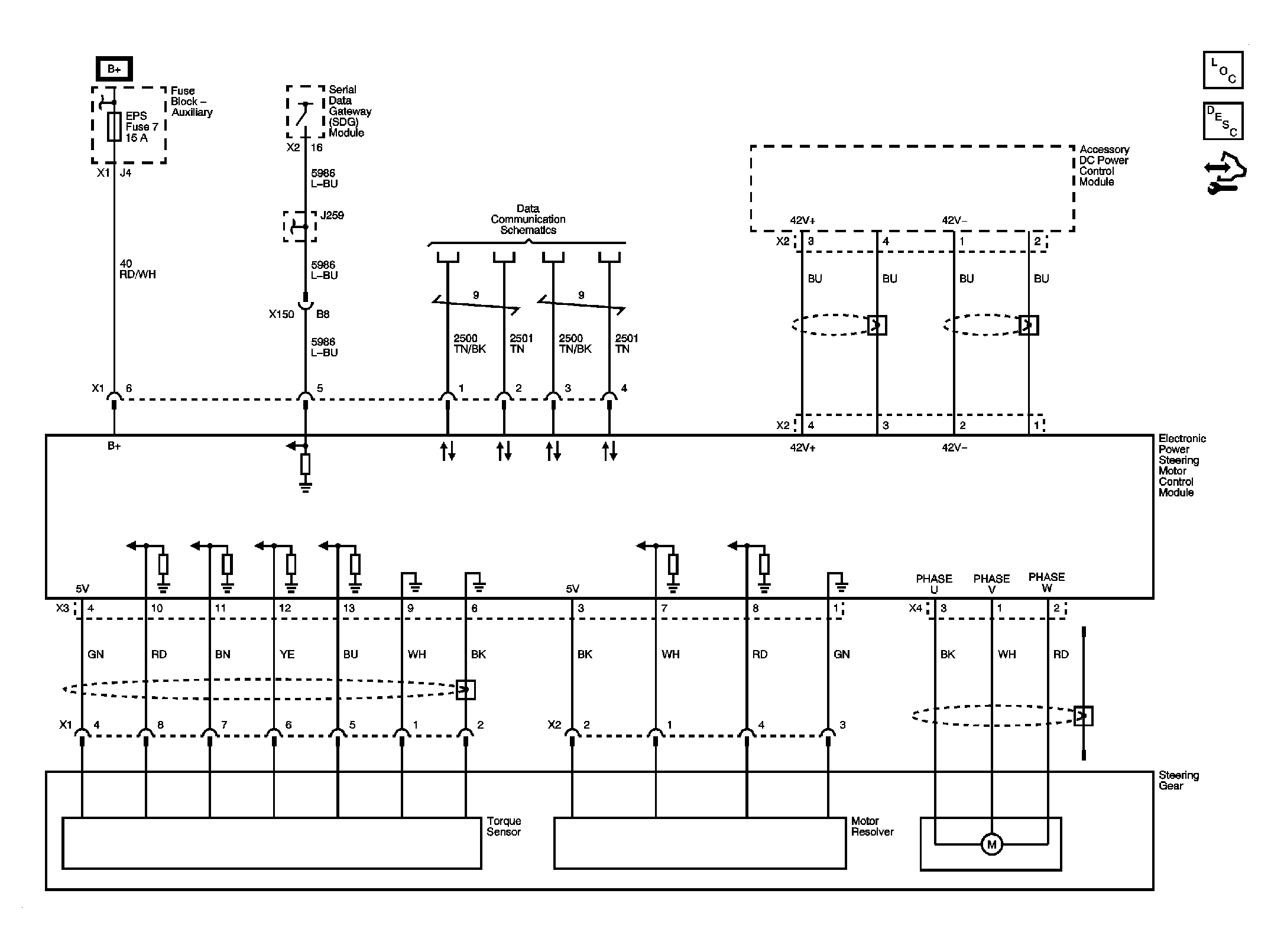

Fig 1: Hybrid Power Steering System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
