Moveable Window Schematics

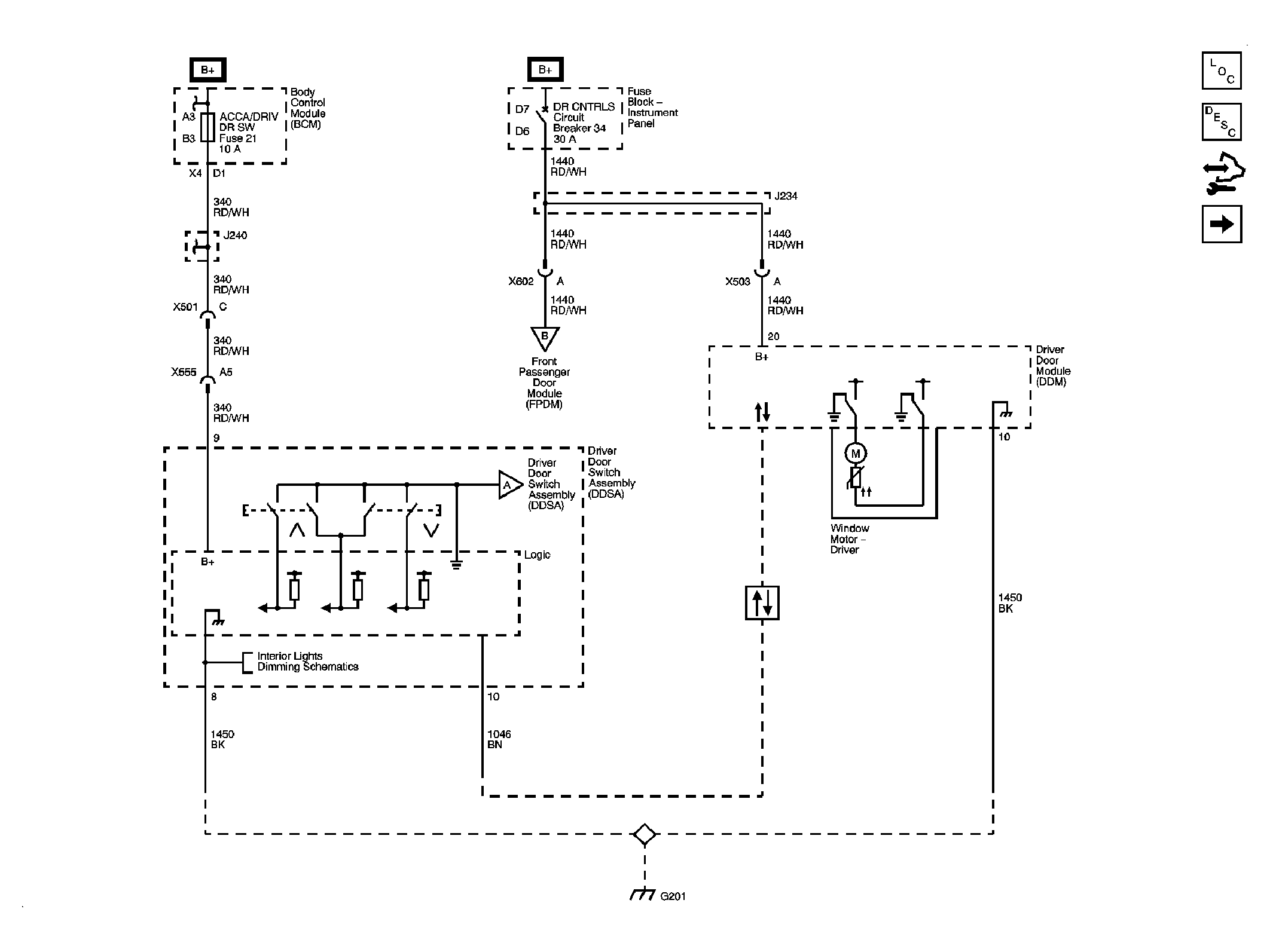

Fig 1: Driver
GM1899854Courtesy of GENERAL MOTORS CORP.

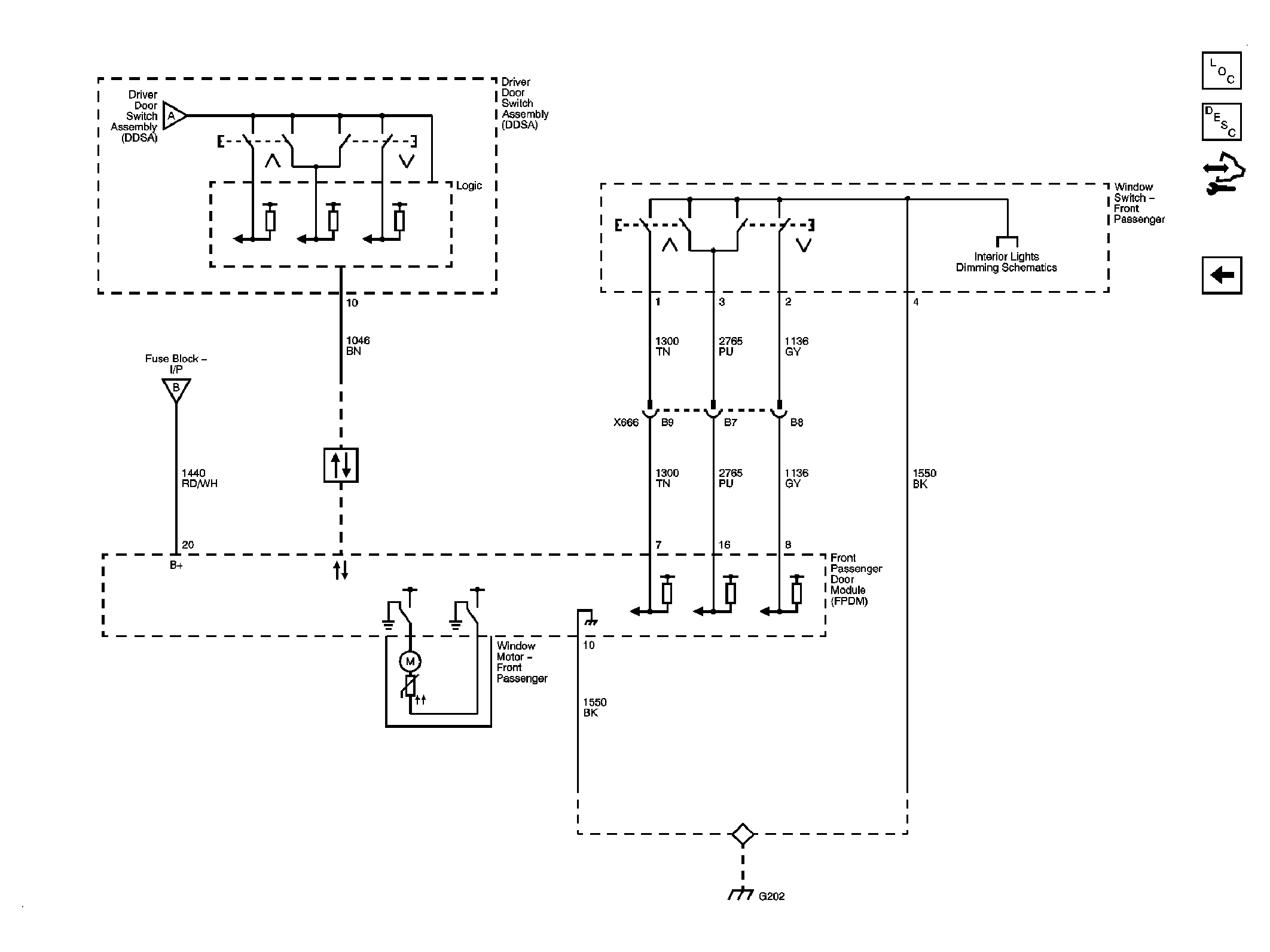

Fig 2: Passenger
GM1899856Courtesy of GENERAL MOTORS CORP.
