Daytime Running Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

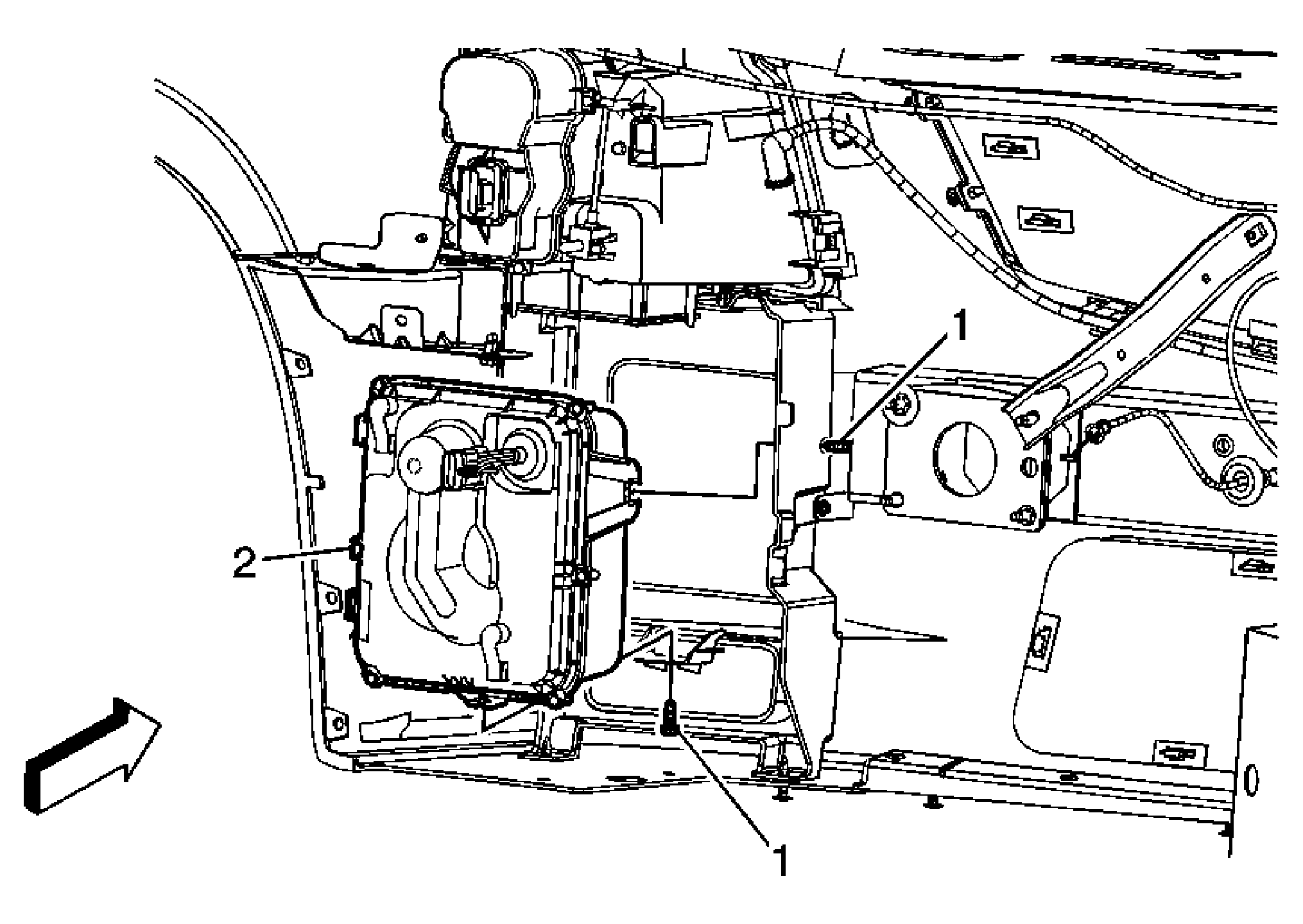

Fig 1: Identifying DRL Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callous	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove either the left front or right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove either the left front or right front fascia extension. Refer to Front Bumper Fascia Extension Replacement - Right Side (R1T, R1X) and Front Bumper Fascia Extension Replacement - Left Side (R1T, R1X) . Disconnect the forward lamp harness from the electrical cover connector.
1	Daytime Running Lamp Bracket Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Daytime Running Lamp Assembly Tip: Pull rearward in order to remove the lamp assembly from the bracket.

Callous

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove either the left front or right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove either the left front or right front fascia extension. Refer to Front Bumper Fascia Extension Replacement - Right Side (R1T, R1X) and Front Bumper Fascia Extension Replacement - Left Side (R1T, R1X) .
Disconnect the forward lamp harness from the electrical cover connector.

Daytime Running Lamp Bracket Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Daytime Running Lamp Assembly
Tip: Pull rearward in order to remove the lamp assembly from the bracket.
