Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

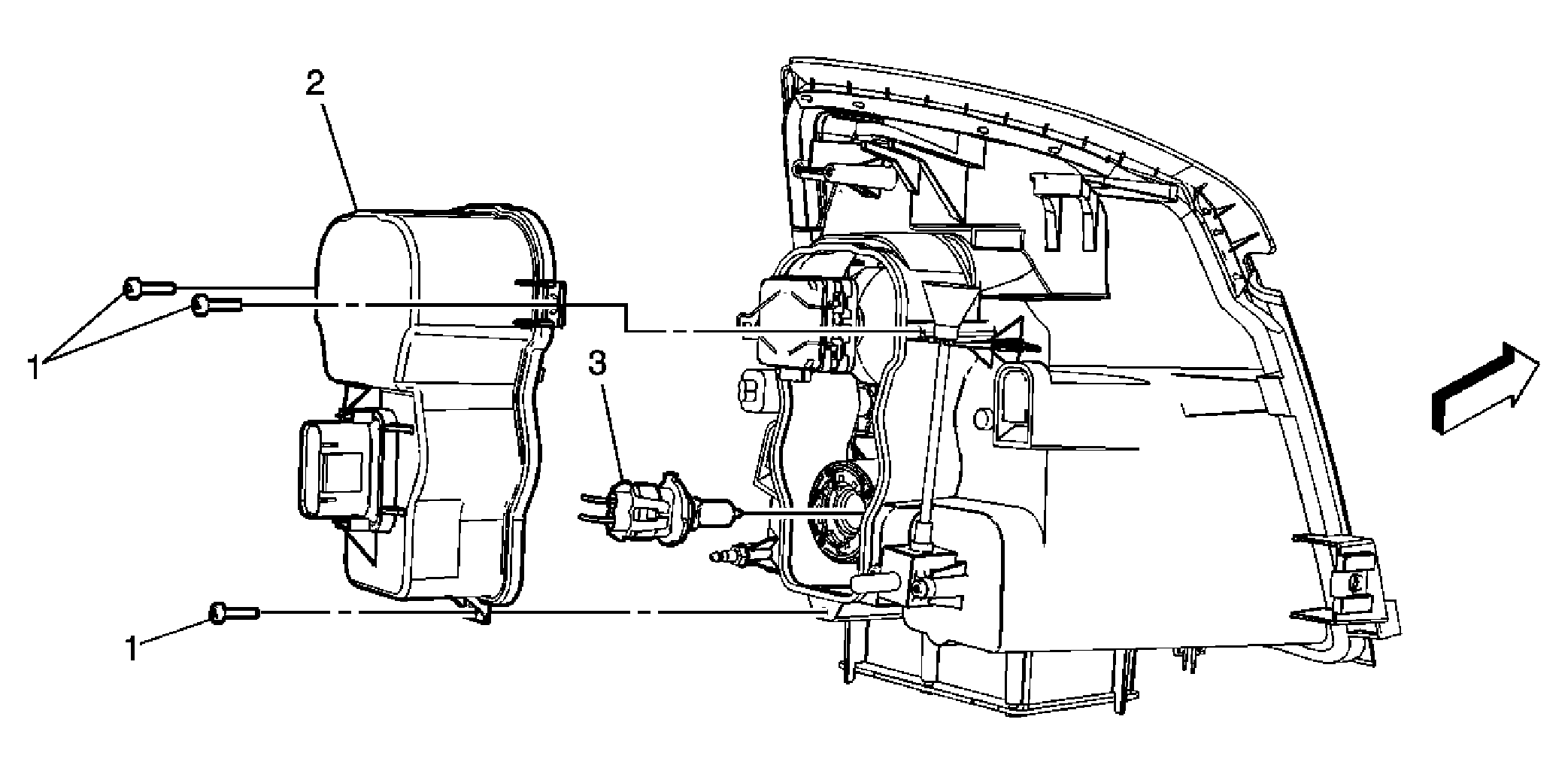

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LF or RF headlamp assembly. Refer to Headlamp Replacement . |
|
| 1 | Headlamp Cover Screws (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: Tighten the screws to 2 N.m (18 lb in) |
| 2 | Headlamp Cover |
| 3 | Headlamp Bulb (Lo Beam)
CAUTION:
Refer to Halogen Bulb Caution
. Tip: Disconnect the electrical connector and remove the lamp bulb socket from the headlamp assembly. |
