Tilt/Telescope Switch

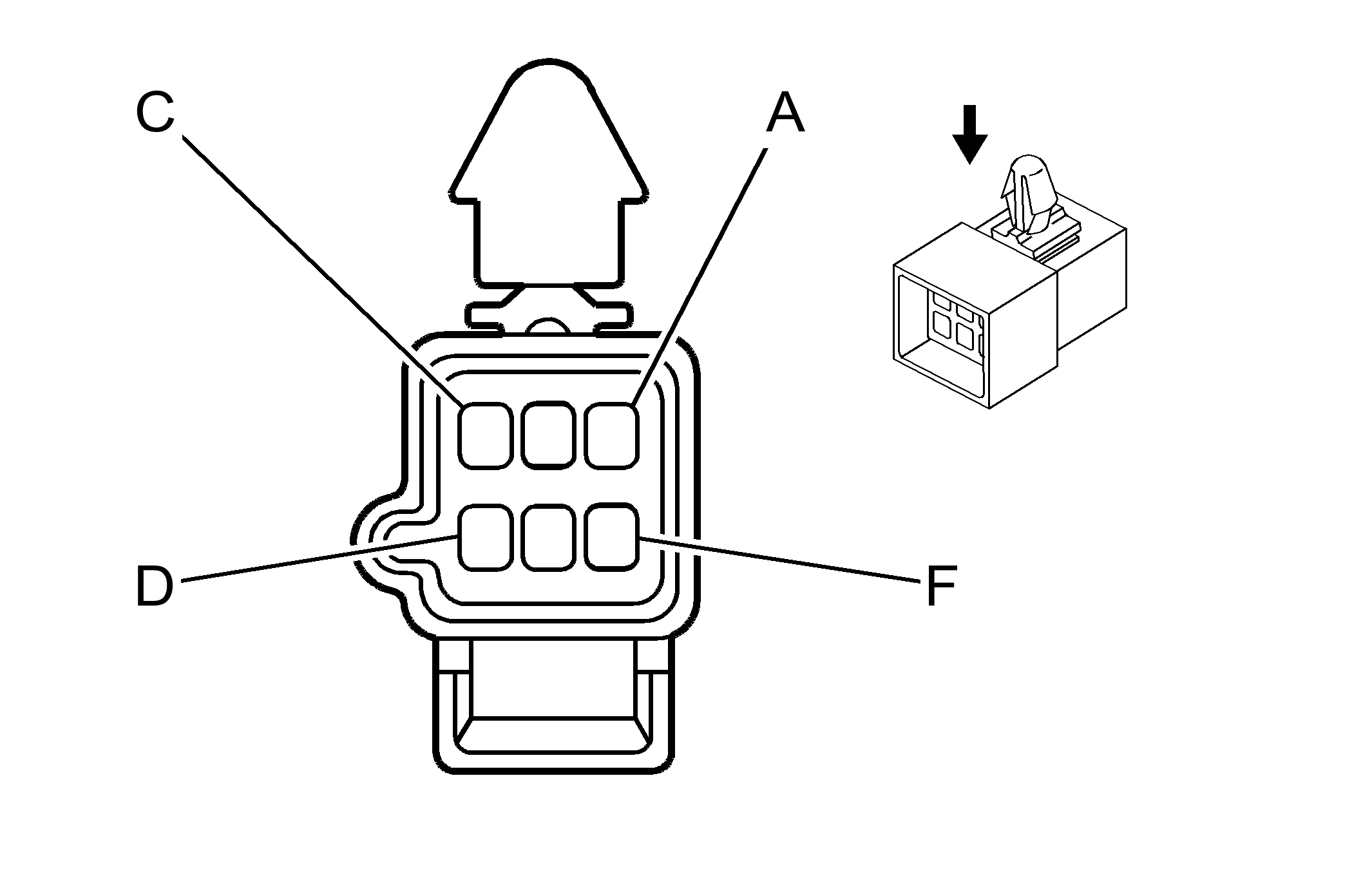

Fig 1: Tilt/Telescope Switch Connector End View
GM877907Courtesy of GENERAL MOTORS CORP.
Tilt/Telescope Switch

Pin Wire Circuit Function
A 0.35 GY 2096 Steering Column Tilt Up Switch Signal
B 0.35 YE 2097 Steering Column Tilt Down Switch Signal
C 0.35 OG 2095 Steering Column Telescope Reverse Switch Signal
D 0.35 PK 2094 Steering Column Telescope Forward Switch Signal
E - - Not Used
F 0.35 RD/WH 440 Battery Positive Voltage
Connector Part Information
  • OEM: 12065781
  • Service: 12101876
  • Description: 6-Way M 701 Series (GY)
Terminal Part Information
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
