Remote Function Schematics

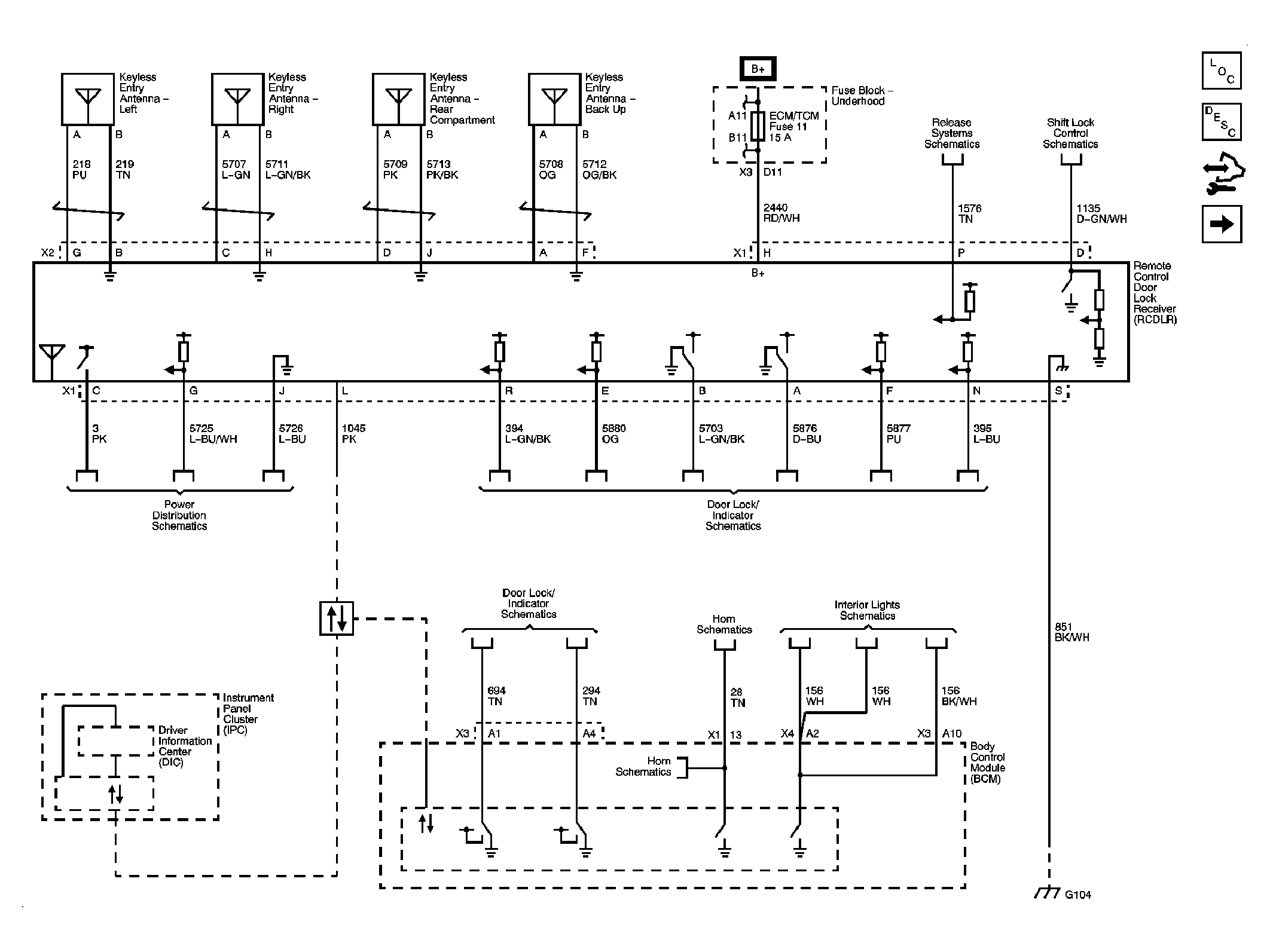

Fig 1: Keyless Entry
GM1899922Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener
GM1899923Courtesy of GENERAL MOTORS CORP.
