Remote Function Schematics

Fig 1: Garage Door Opener - UG1
GM2077293Courtesy of GENERAL MOTORS CORP.

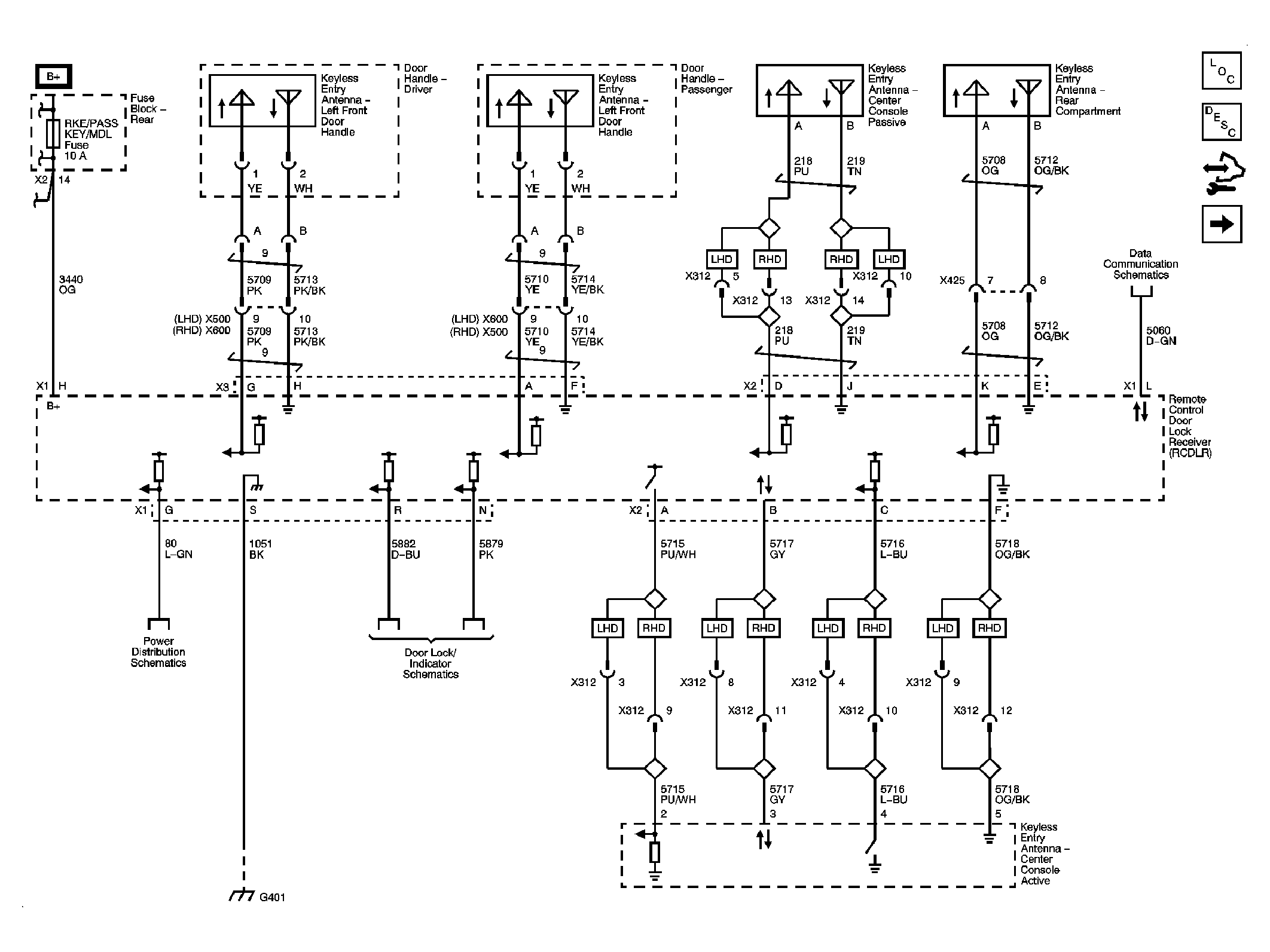

Fig 2: Power, Grounds, Antennas, Indicator and Release Switch
GM2077294Courtesy of GENERAL MOTORS CORP.
