Battery Negative Cable Replacement

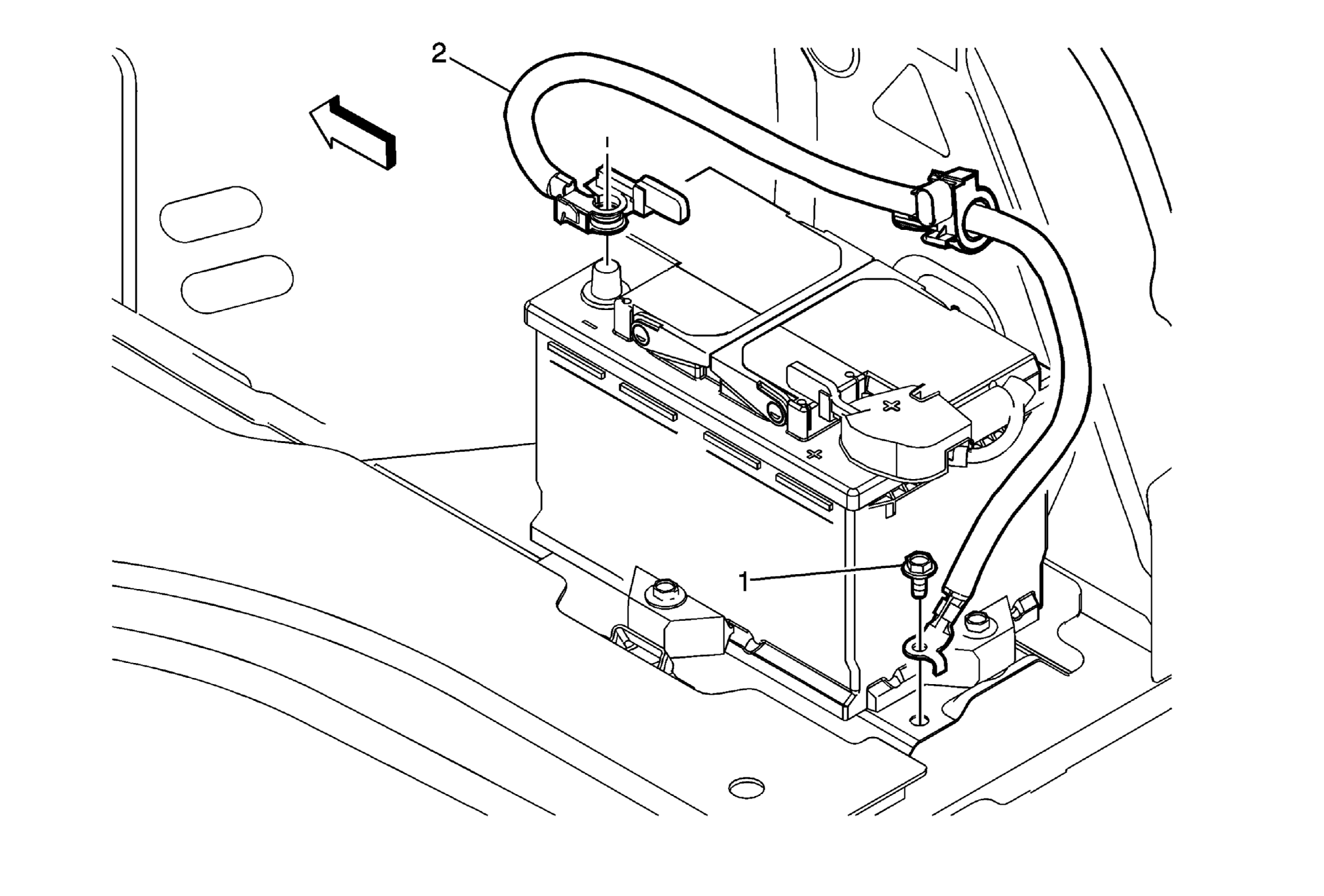

Fig 1: Identifying Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Battery Negative Cable Bolt CAUTION: Refer to Fastener Caution . Tighten:  20 N.m (15 lb ft)
2	Battery Negative Cable Procedure:  Transfer any parts as needed.
