Air Cleaner Element Replacement

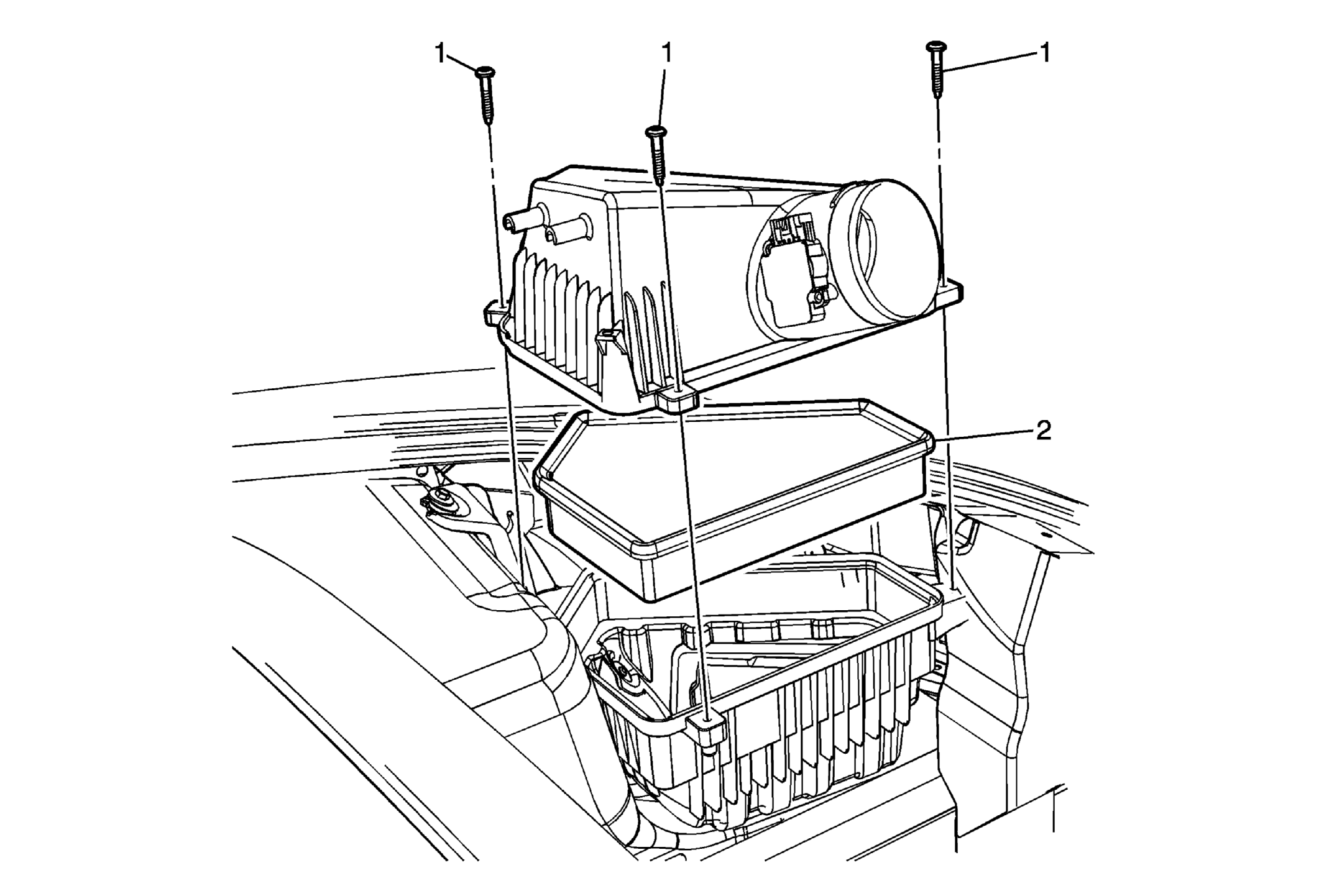

Fig 1: Identifying Air Cleaner Element

GM2164109

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
Remove the air cleaner duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Disconnect the MAF/IAT sensor harness connector.

1

Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 4 N.m (35 lb in)

2

Air Cleaner Element

Procedure

Disconnect the MAF sensor wiring harness.
Lift the air cleaner cover in order to remove the air cleaner element.
