Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

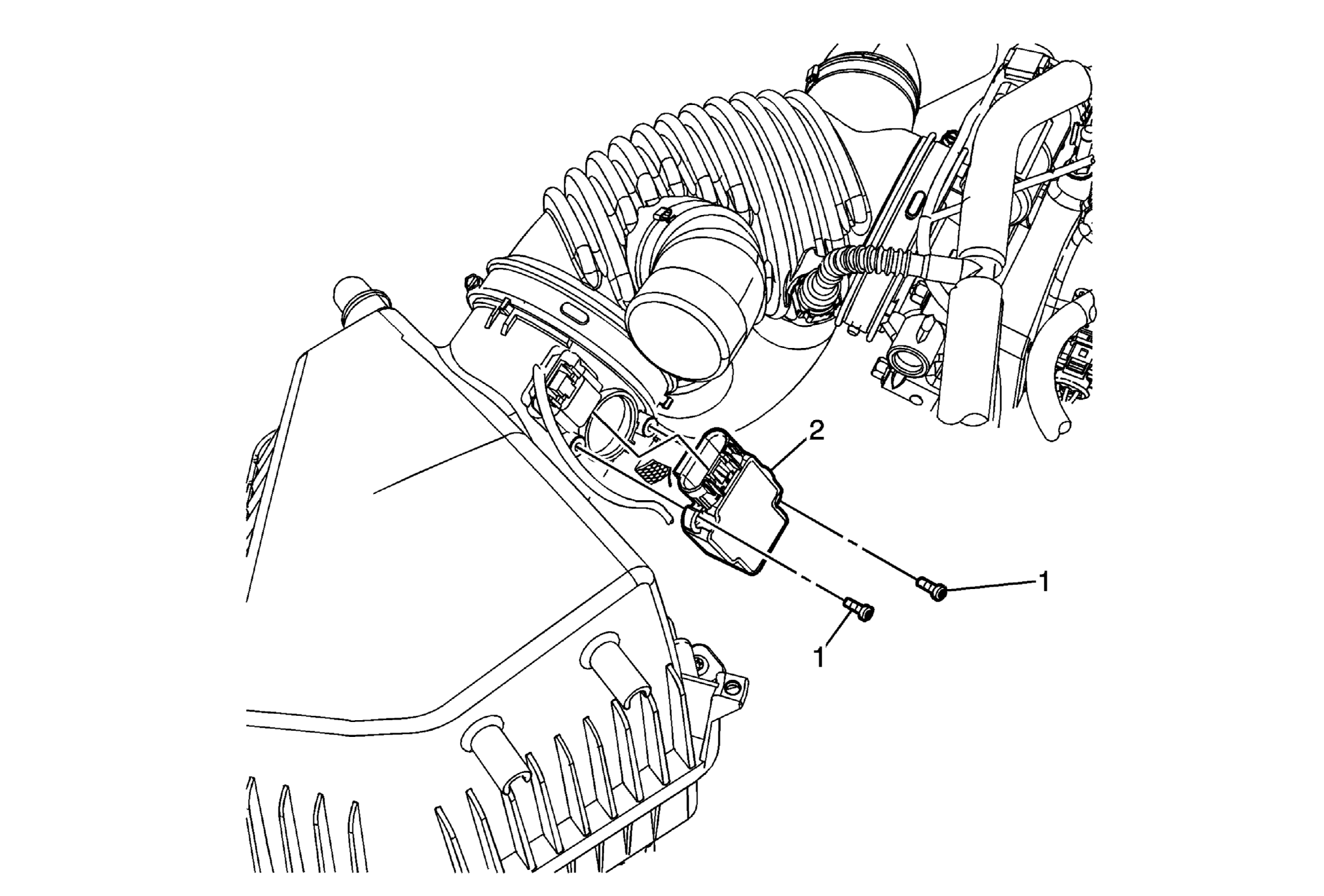

Fig 1: Identifying Mass Airflow Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Airflow Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  1.5 N.m (13 lb in)
2	Mass Airflow Sensor Procedure:  Disconnect the mass airflow harness connector.
