Installation Procedure

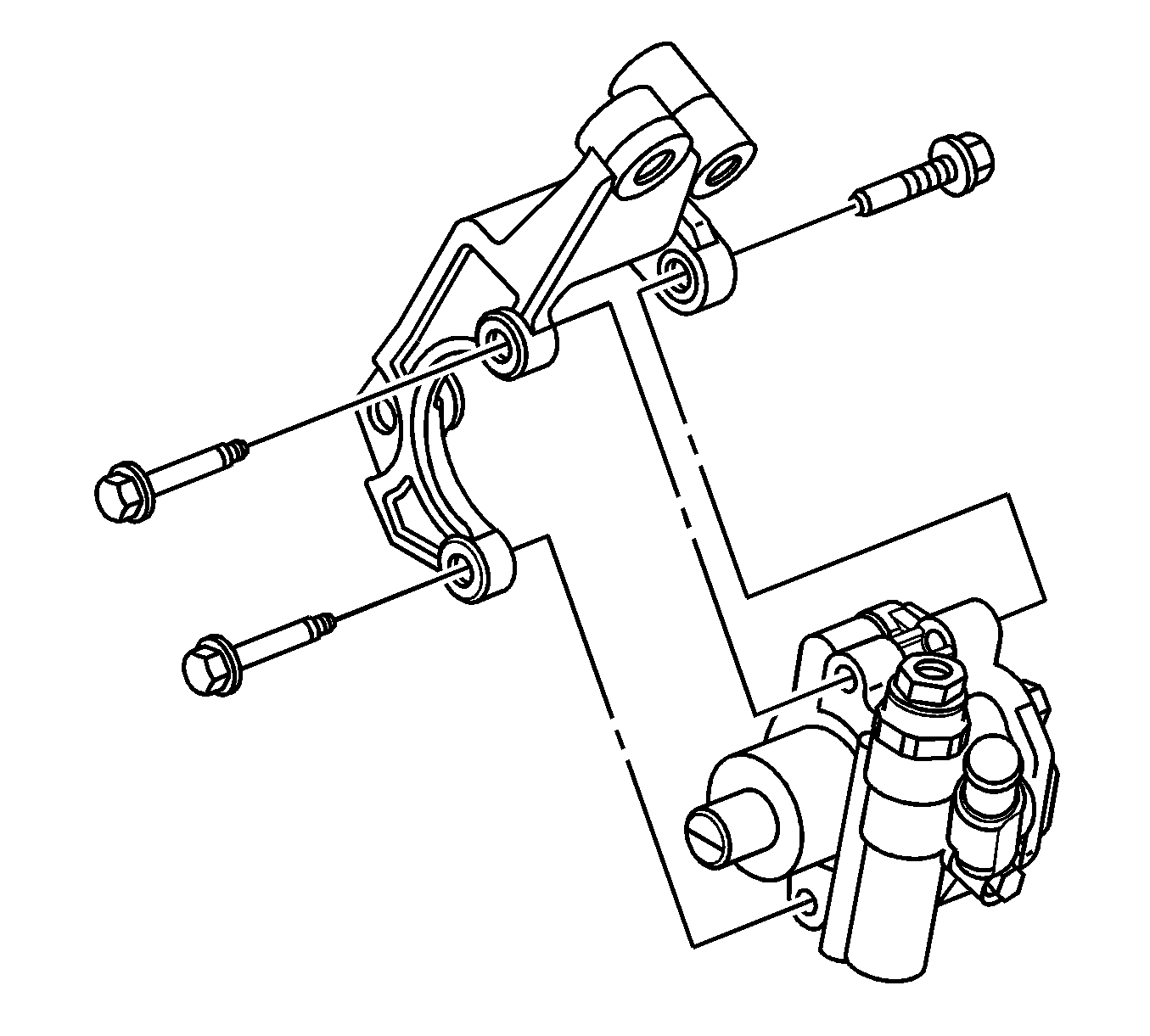

    Fig 1: View Of Power Steering Pump Bracket
    GM888285Courtesy of GENERAL MOTORS CORP.
  1. Align the power steering pump to the power steering pump bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the power steering pump bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the power steering pump. Refer to Power Steering Pump Replacement (V6)  or Power Steering Pump Replacement (V8) .
