Schematic and Routing Diagrams
›
Object Detection Schematics
Object Detection Schematics

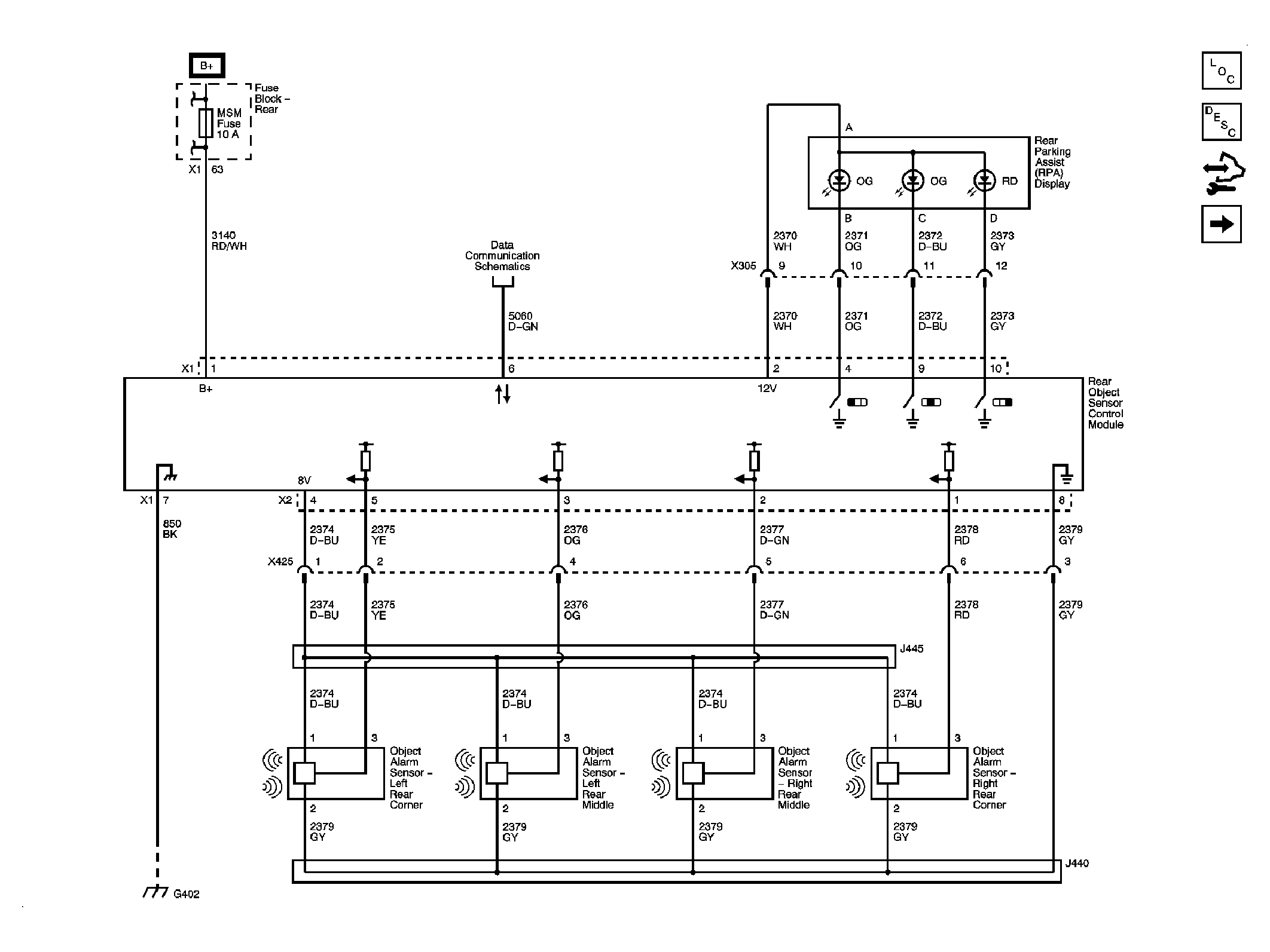

Fig 1: UD7
Courtesy of GENERAL MOTORS CORP.

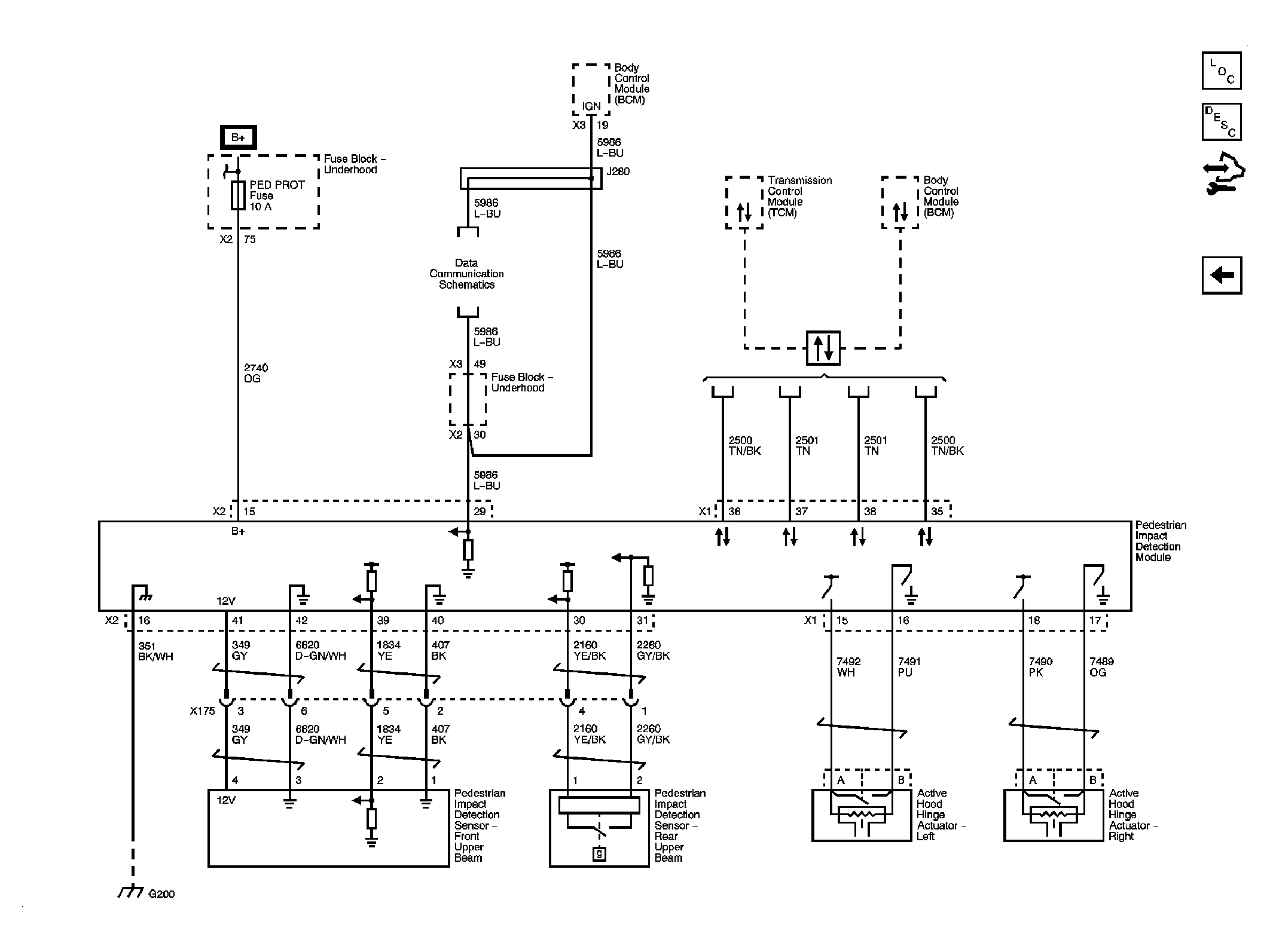

Fig 2: Pedestrian Impact Detection System -B37
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
