Moveable Window Schematics

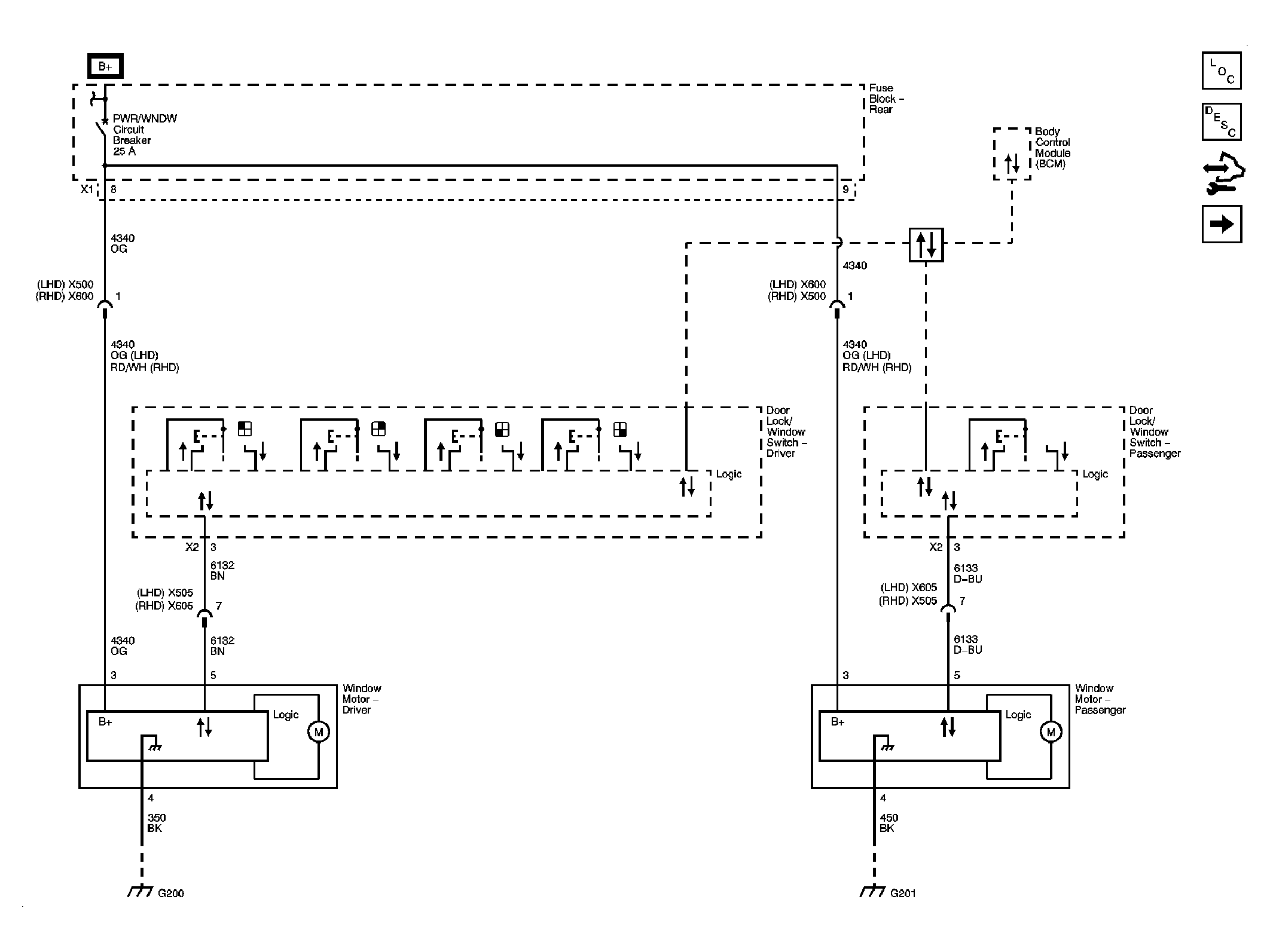

Fig 1: Moveable Window (Front)
GM2077246Courtesy of GENERAL MOTORS CORP.

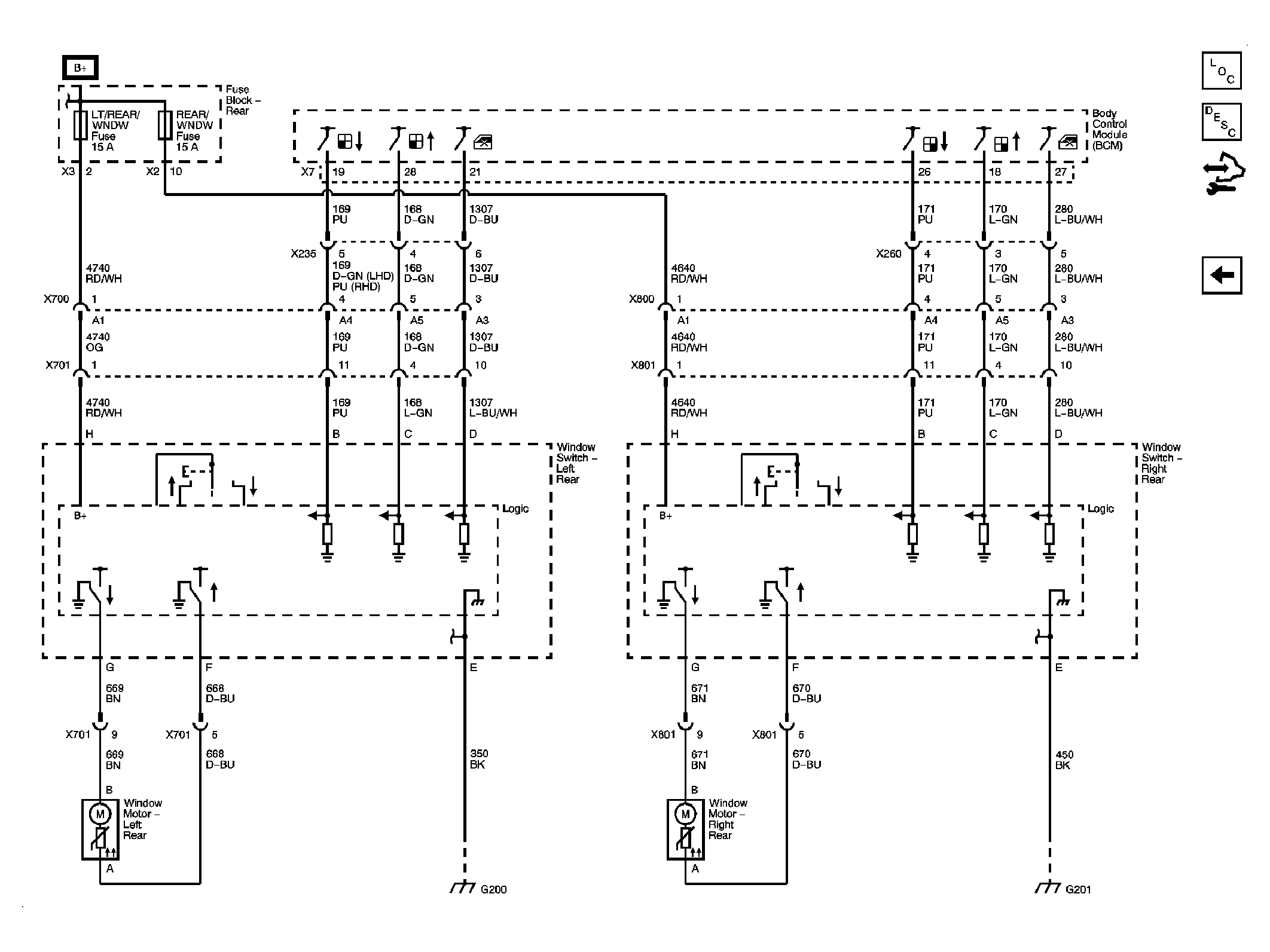

Fig 2: Moveable Window (Rear)
GM2077247Courtesy of GENERAL MOTORS CORP.
